EtherCAT Communication Card: CMM-EC02/ CMM-EC03
CMM-EC02/ CMM-EC03 Operation Manual
7

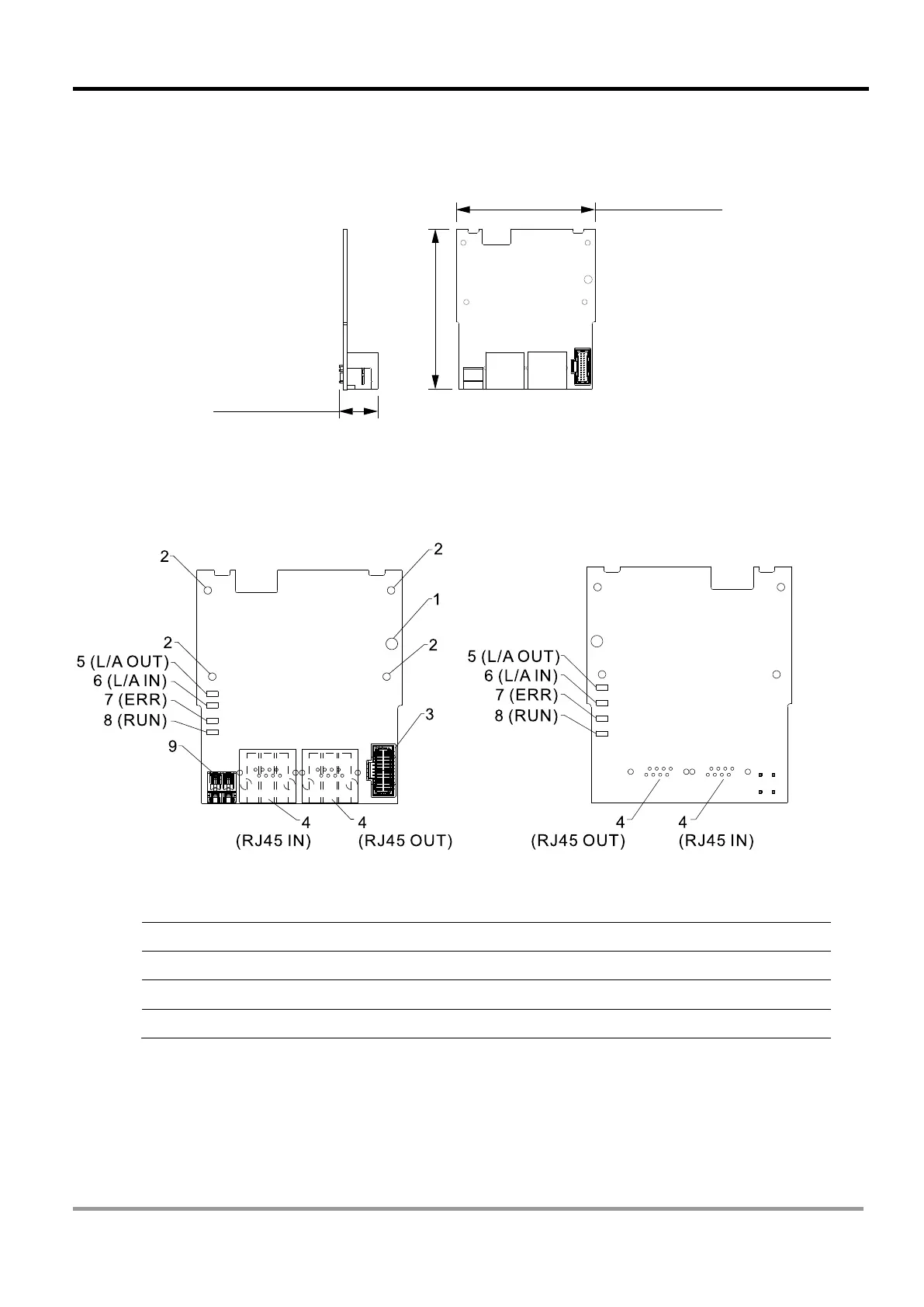

1.2 Product Appearance
1.2.1 Panel Cut Out Dimensions
1.2.2 Components
k
1. Screw fixing hole 5. L/A OUT (OUT LINK indicator)
2. Positioning hole for communication card 6. L/A IN (IN LINK indicator)
3. Control board connection port 7. ERR (ERR indicator)
4. RJ45 connection port 8. RUN (Communication card RUN indicator)
9. Ground terminal block
69.0 [2.72]
60.0 [2.36]
16.9 [0.67]
Unit: mm [inch]
