The Relative String Fuse for the branch plug
The inverter provide string fuse with rating 15A in default.
When 2 PV string are connected via branch plug to the specific DC connector,
the current passed through specific connector will be higher than that with
only one PV string. The rating of string fuse for the specific Dc connector
should be enlarged, 25A is recommended. Please refer to Sec 6.2 to find

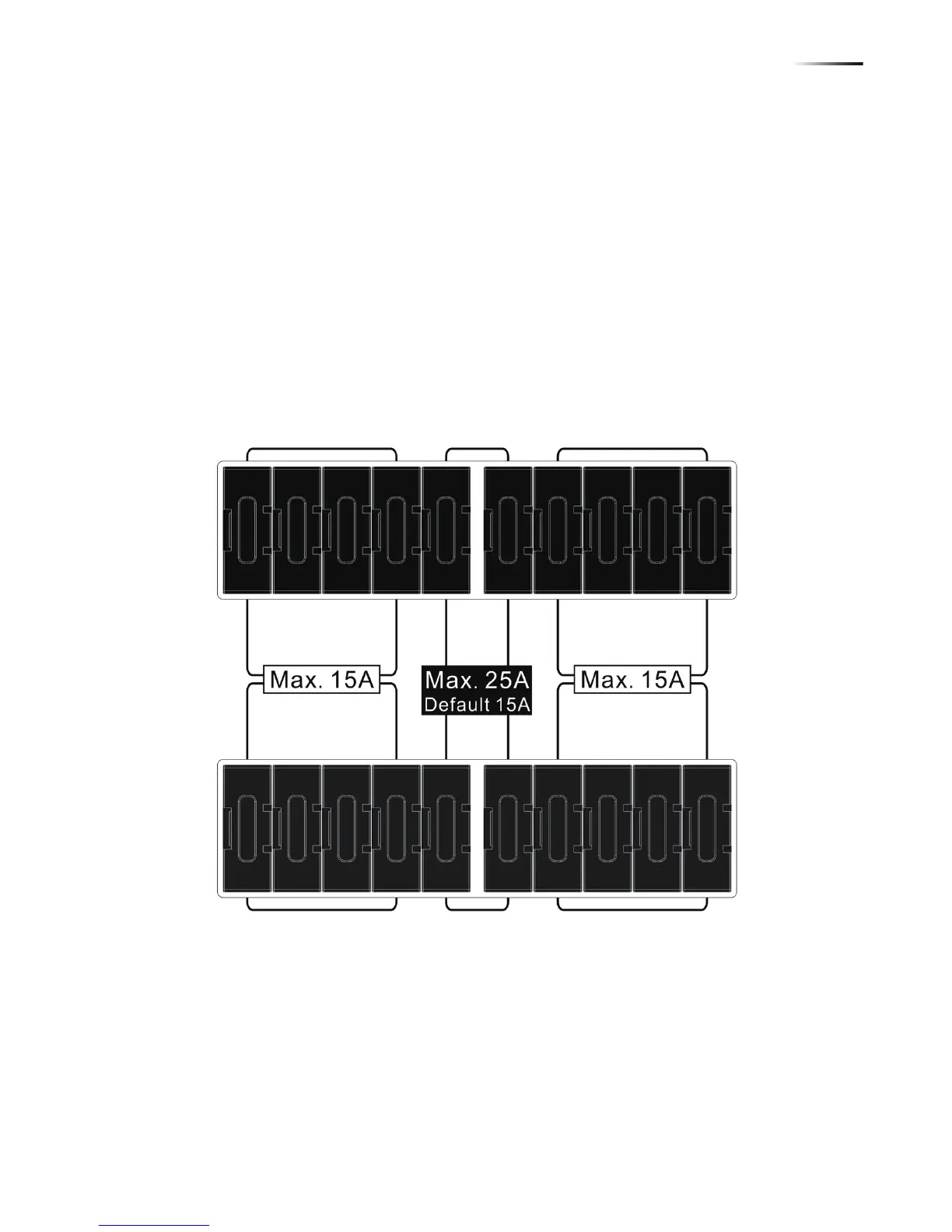

where String Fuse are. 4 string fuse applied on the specific Dc connector
are indicated as group “Max 25A”.
29
Wiring
