Material List for application with 12 String

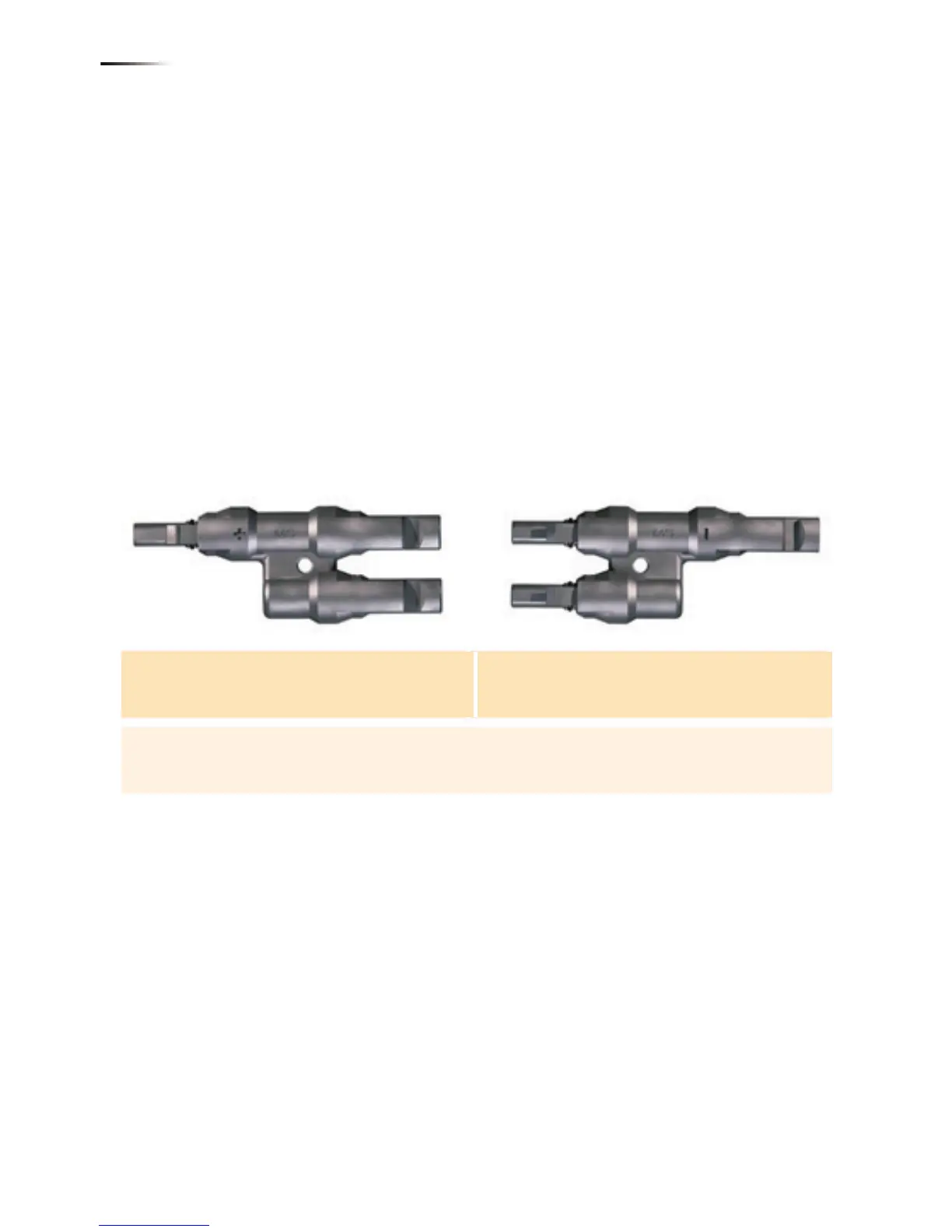

MC4 Branch Plug
25A String Fuse
-Male Cable Coupler (For polarity +) ,2 Pcs required per inverter
-Female Cable Coupler (For polarity –) ,2 Pcs required per inverter
Male Cable Coupler Female cable coupler
Vendor/Model No
Multi-Contact/PV-AZS4
Vendor/Model No
Multi-Contact/PV-AZB4
Little Fuse /0SPF025.T - 1000V/25A ,4 pcs required per inverter
