10
Fig. 5
Fig. 6
Fig. 7
Fig. 8

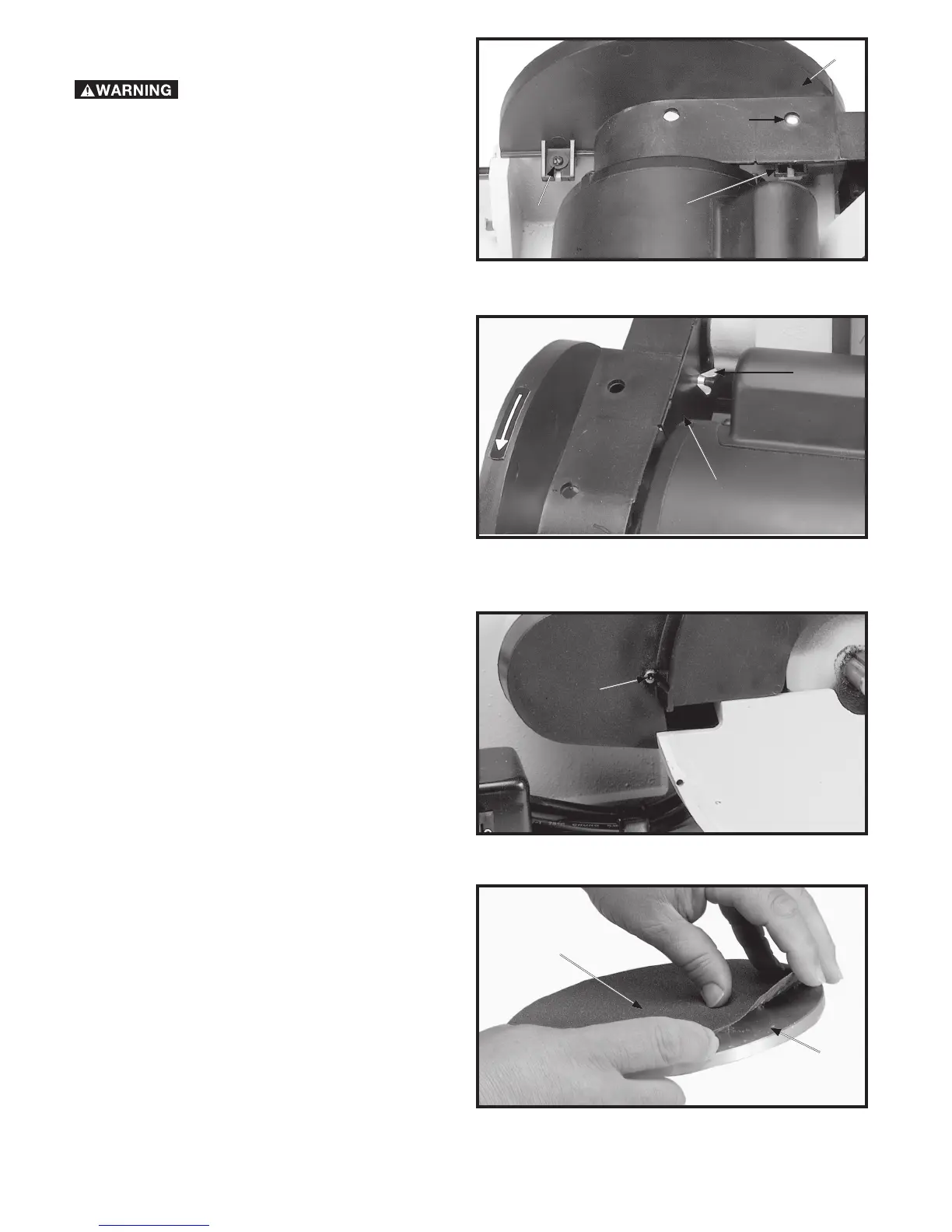

ASSEMBLING GUARD FOR SANDING DISC
AND BELT AND PULLEYS
1. Disconnect machine from power
source.
2. Position the guard (A) Fig. 5, in place on the disc
unit frame and fasten in place using the two
M4x.07x10mm cheese head screws (B) and (C) and
two 3/16" flat washers. DO NOT COMPLETELY
TIGHTEN SCREWS (B) AND (C) AT THIS TIME AS
THE GUARD MUST BE ADJUSTED TO SANDING
DISC PLATE. NOTE: Access to screw (C) is
through hole (D) in top of guard.
3. Assemble the inside guard (E) Fig. 6, to the guard
assembly using a M4x.07x45mm cheese head
screw (F) Fig. 7, and M4x.07 wing nut (G) Fig. 6, as
shown.
ASSEMBLING SANDING DISC TO DISC
PLATE
1. Make sure the disc plate (A) Fig. 8, is clean.
2. Peel backing from sanding disc and press the
sanding disc (B) firmly onto the disc plate (A), as
shown in Fig. 8.
A
D
C
B
E
G
F
B
A
