12
Fig. 13
Fig. 14
Fig. 15
Fig. 16

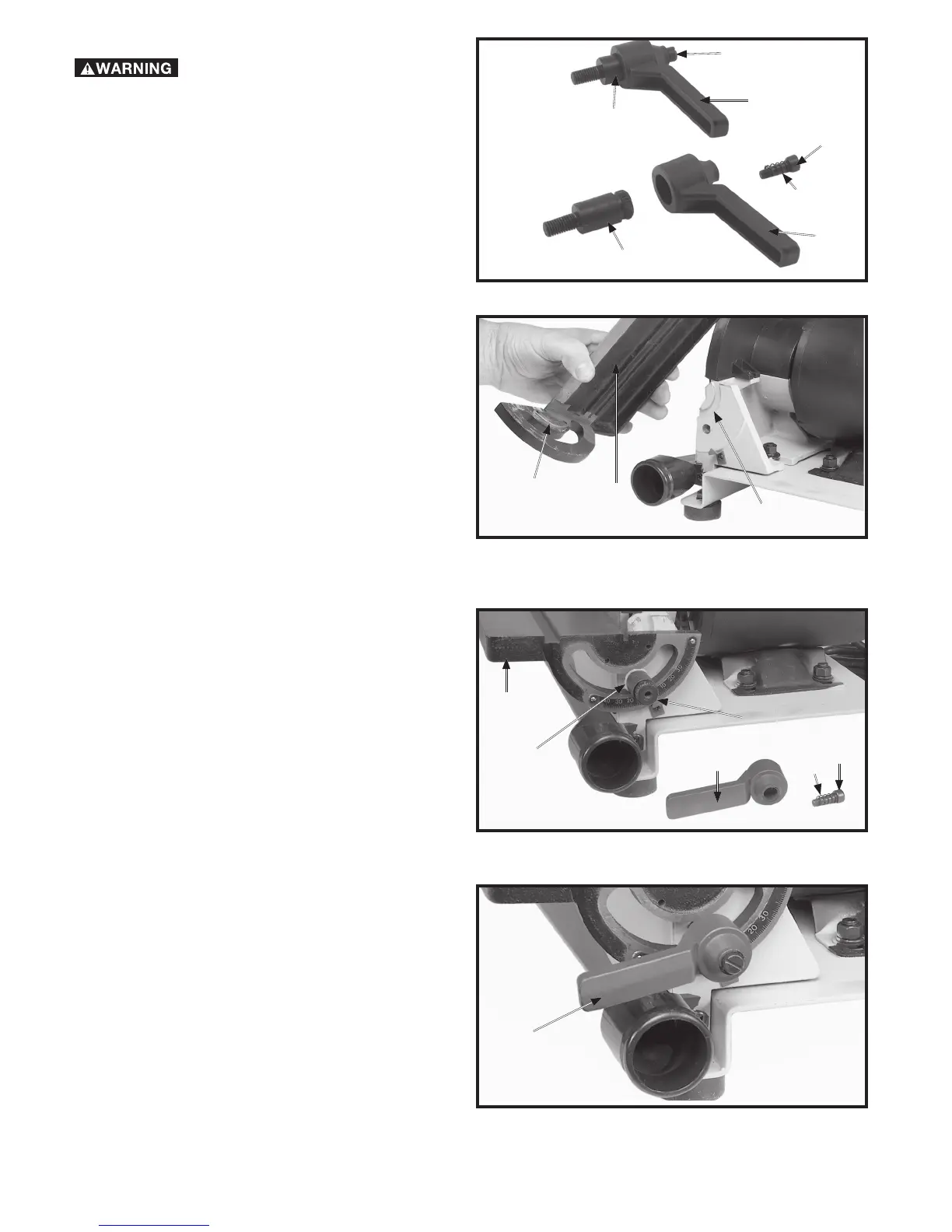

ASSEMBLING SANDING DISC TABLE
1. Disconnect machine from power
source.
2. Two clamp handles are supplied with your machine,
one for the belt sander table and one for the
disc sander table. Disassemble both handles by
unscrewing and removing screw (A), spring (B), and
handle (C) from locking stud (D), as shown in Fig. 13.
3. Position the disc table (E) Fig. 14, on the disc base
casting, making sure the key (F) on the table bracket
is engaged with the keyway (G) on the base casting.
4. Place a 10mm flat washer (J) Fig. 15, onto locking
stud (H) Fig. 15, and thread stud into base casting
to hold table assembly (E) in place as shown.
5. Place handle (C) Fig. 15, onto locking stud (H) and
fasten with screw (A) and spring (B).
6. Fig. 16, illustrates the locking handle (C) assembled.
NOTE: The locking handle (C) is spring-loaded
and can be repositioned by pulling out the handle
and repositioning it on the serrated stud located
underneath the handle.
A
C
D
A
B
C
D
F
E
G
C
A
B
C
H
J
E
