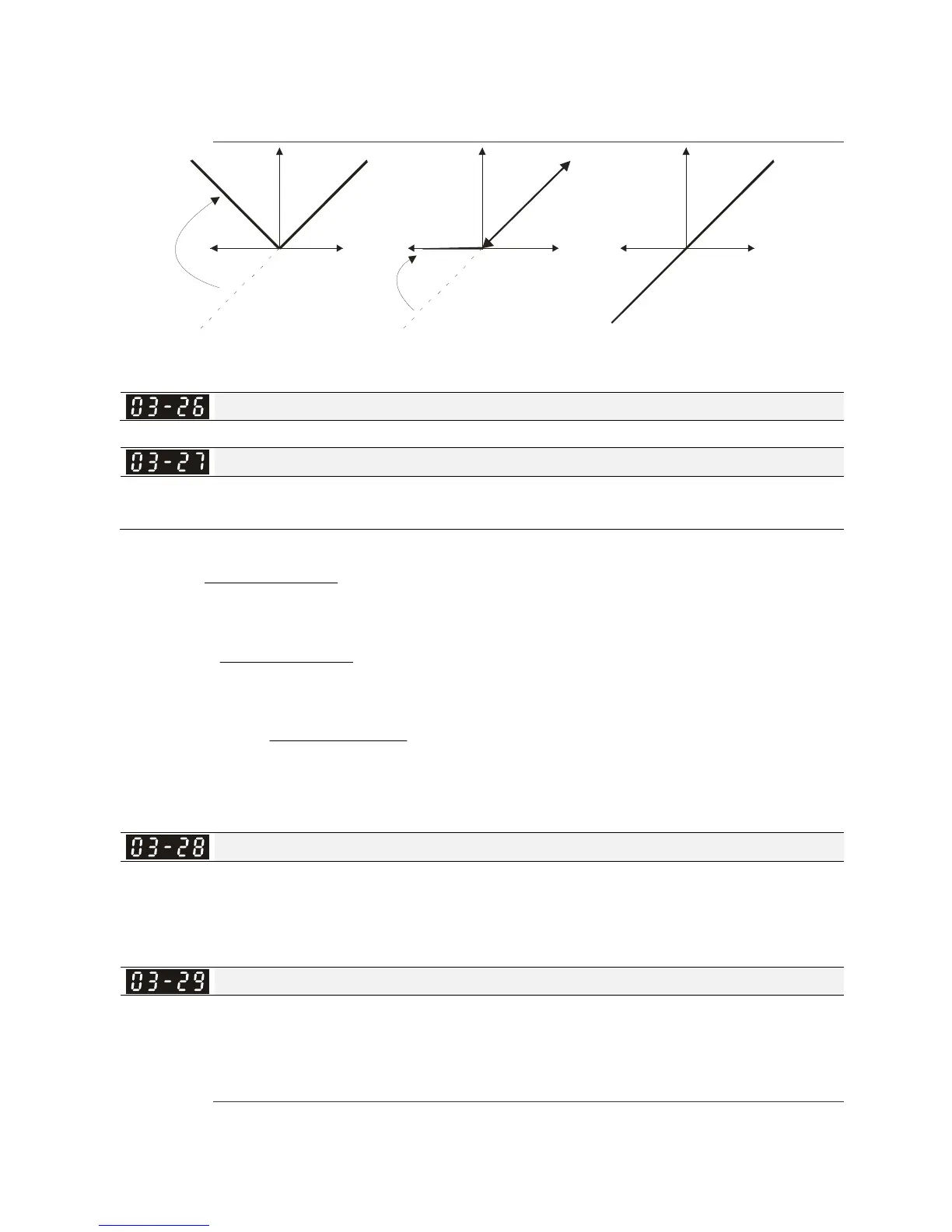

Settings 0: Absolute value in REV direction
1: Output 0V in REV direction; output 0-10V in FWD direction
2: Output 5-0V in REV direction; output 5-10V in FWD direction
03-18
03-21
03-24
03-22=0
03-25=0
03-22=1
03-25=1
10V(20mA)
03-22=2
03-25=2
5V
(12mA)
10V(20mA)
0V
(0mA)
10V(20mA)
0V
(0mA)
Frequency
Frequency
Selections for the analog output direction
Reserved

AFM2 Output Bias
Factory Setting: 0.00
Settings -100.00~100.00%
 Example 1, AFM2 0-10V is set output frequency, the output equation is
27-03 10V 24-03 )
00-01
FrequencyOutput
(10V ×+××
 Example 2, AFM2 0-20mA is set output frequency, the output equation is
27-0320mA 24-03 )
00-01
FrequencyOutput
(20mA ×+××
 Example 3, AFM2 4-20mA is set output frequency, the output equation is
27-0316mA 24-03 )
00-01
FrequencyOutput
(16mA4mA ×+××+
 This parameter can set the corresponded voltage of 0 for analog output.

AVI Selection
Factory Setting: 0
Settings 0: 0-10V
1: 0-20mA
2: 4-20mA

ACI Selection
Factory Setting: 0
Settings 0: 4-20mA
1: 0-10V
2: 0-20mA
 When changing the input mode, please check if the switch of external terminal (SW3, SW4)
corresponds to the setting of Pr.03-28~03-29.
