Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-12-4
Pr12-06 and delay time of Pr12-05, then CFP2000 will delay the time setting of Pr12-03. Then
CFP2000 will switch the motor to use mains electricity and delay the time setting of Pr12-03 to run
next motor. If necessary, other motors will be activated in sequence. See sequential diagram of 12-3
and 12-4.

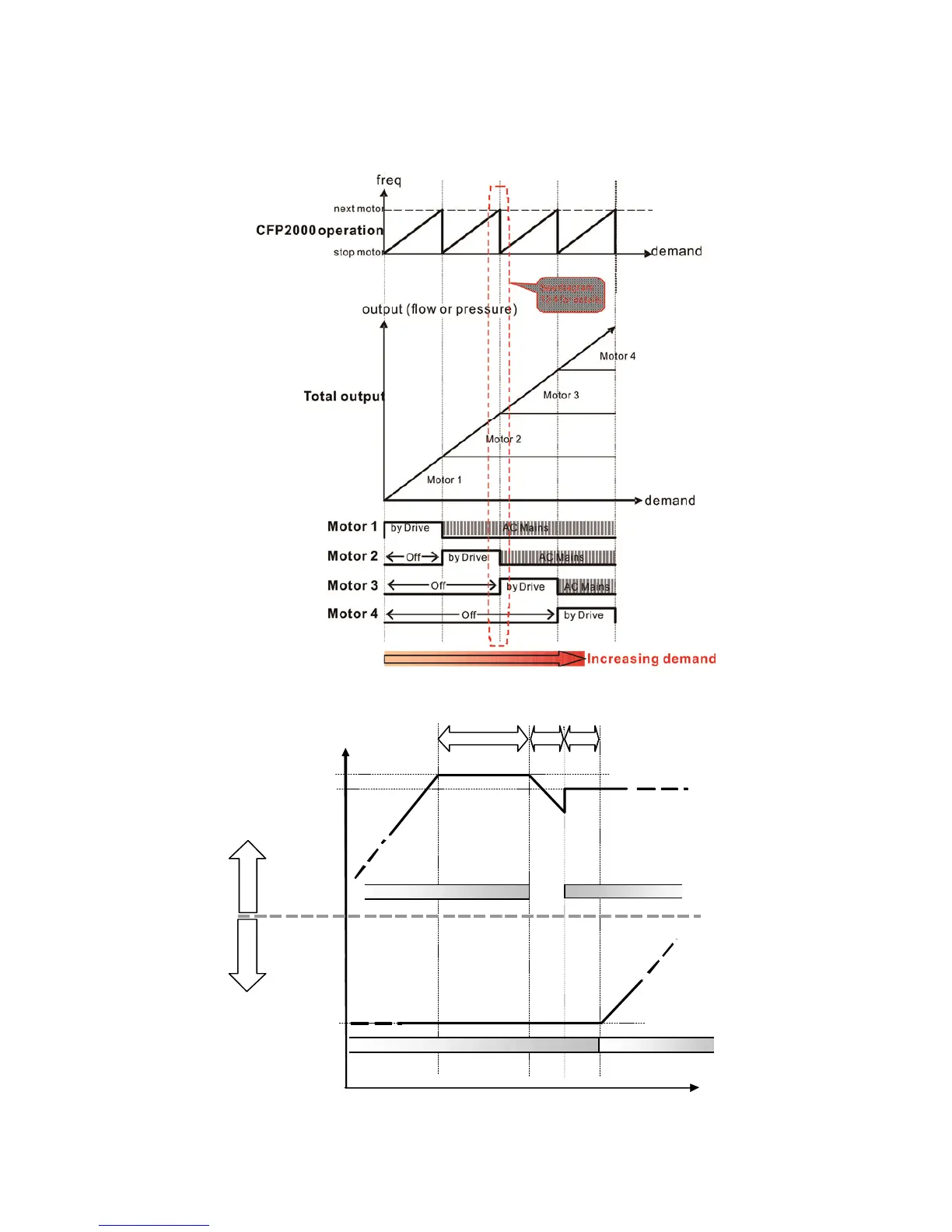

Diagram 12-3: Sequence of Fixed quantity circulation with PID – Increasing Demand
mains (50Hz)
P12-06
P1 2-05 P1 2-03 Pr12-03
Motor #2 by Drive
Motor #2 on mains
Motor #2 Motor #3
Motor #3 by Drive Motor #3 off
0Hz
tim e
freq
Diagram 12-4: Sequence of switching motors at fixed quantity circulation with PID – Increasing Demands
To Next Page
