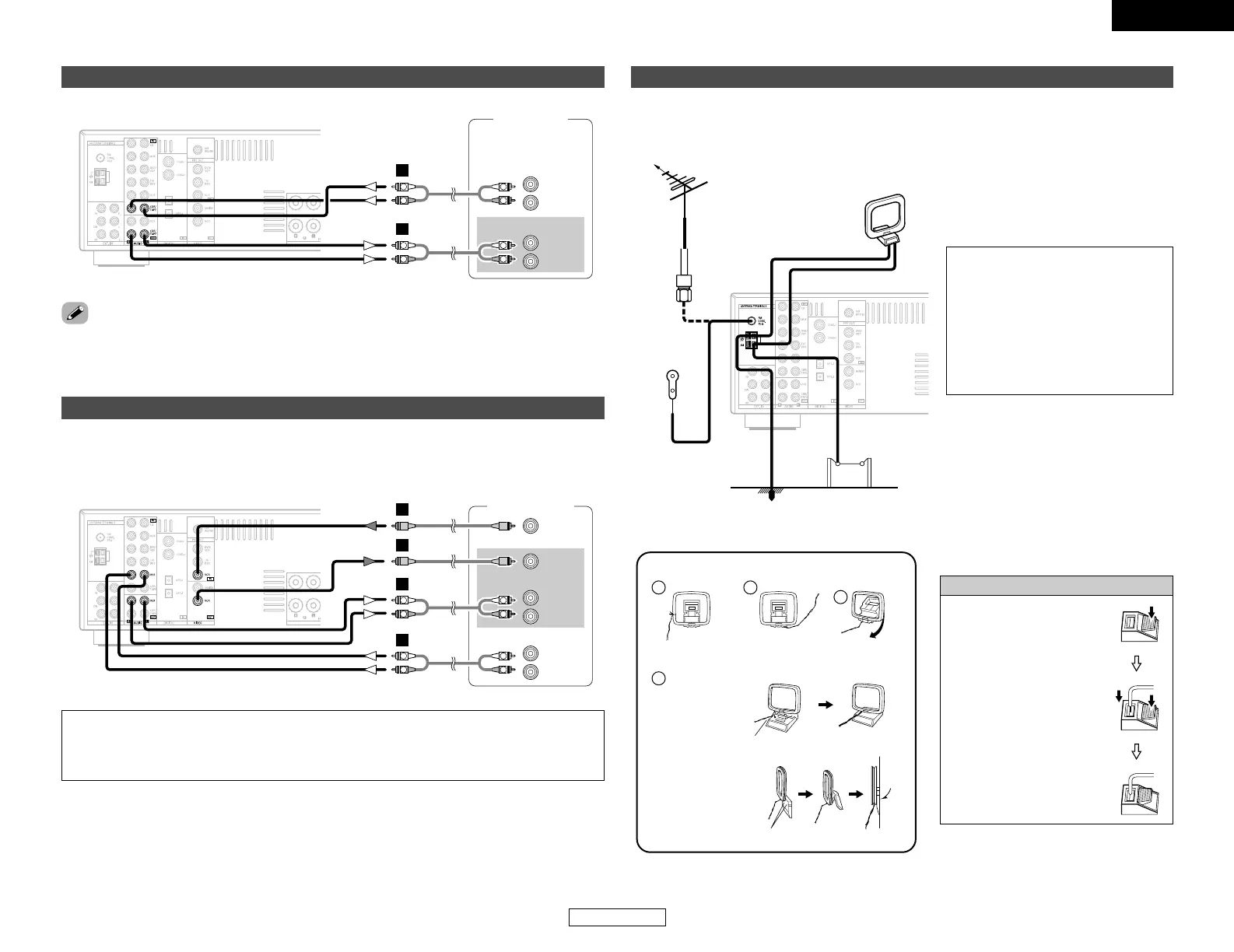

Connecting Other Sources Connecting Other Sources
Connecting a VCR
Video deck
R
L
AUDIO IN
R
L
AUDIO OUT
VIDEO
OUT
VIDEO
IN
R
L
R
L
F
F
A
R
L
R
L
A
If you wish to perform analog dubbing from a digital source, such as a DVD recorder to an analog
recorder such as a cassette deck, you will need to connect the analog inputs and outputs as shown
below, in addition to the digital audio connections.
NOTE:
• When recording to a VCR, it is necessary that the type of cable used with the playback source
equipment be the same type that is connected to the AVR-1306 VCR OUTPUT terminal.
Example: VCR IN → Video cable : VCR OUT → Video cable
1
4
2
3
2 AM loop antenna assembly
Connect to the AM
antenna terminals.
Remove the vinyl tie
and take out the
connection line.
Bend in the reverse
direction.
a. Antenna placed on
a stable surface.
b. Hanging the
antenna on a wall.
Mount
Use the
installation hole to secure the antenna to a wall, etc.
Connection of AM antennas
1. Push the lever.
2. Insert the conductor.
3. Return the lever.
An FM antenna cable plug can be connected directly to the unit.
Connecting the antenna terminals
NOTE:
• Do not connect two FM antennas
simultaneously.
•Even if an external AM antenna is
used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna
lead terminals do not touch metal
parts of the panel.
Direction of broadcasting
station
75 Ω/ohm
COAXIAL
cable
FM antenna
FM indoor
antenna
(Supplied)
AM loop
antenna
(Supplied)
AM outdoor antenna
Ground
Connecting a tape deck, CD recorder or MD recorder
R
L
AUDIO OUT
R
L
AUDIO IN
Tape deck /
CD recorder /
MD recorder
R
L
R
L
A
A
R
L
R
L
• If humming noise is generated, move the tape deck further away from the source of such noise.

Denon AVR-1306 Specifications

General

Power Output	75 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
Component Video Inputs	2
Digital Audio Inputs	2 Optical, 1 Coaxial
AM/FM Tuner	Yes
Dolby Digital	Yes
DTS	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Preset Station Qty	56
Frequency Response	10 Hz - 100 kHz
Amplifier Output Details	75.0 Watt - 8.0 Ohm - 20 - 20000 Hz - THD 0.08 %
Tuning Range	FM: 87.5 - 108.0 MHz, AM: 522 - 1611 kHz
Tuning Display	Fluorescent
Connector Type	RCA
Speaker Impedance	6 - 16 Ohm
Dimensions	434 x 151 x 363mm (W x H x D)
Channels	7.1
Weight	10.5 kg
