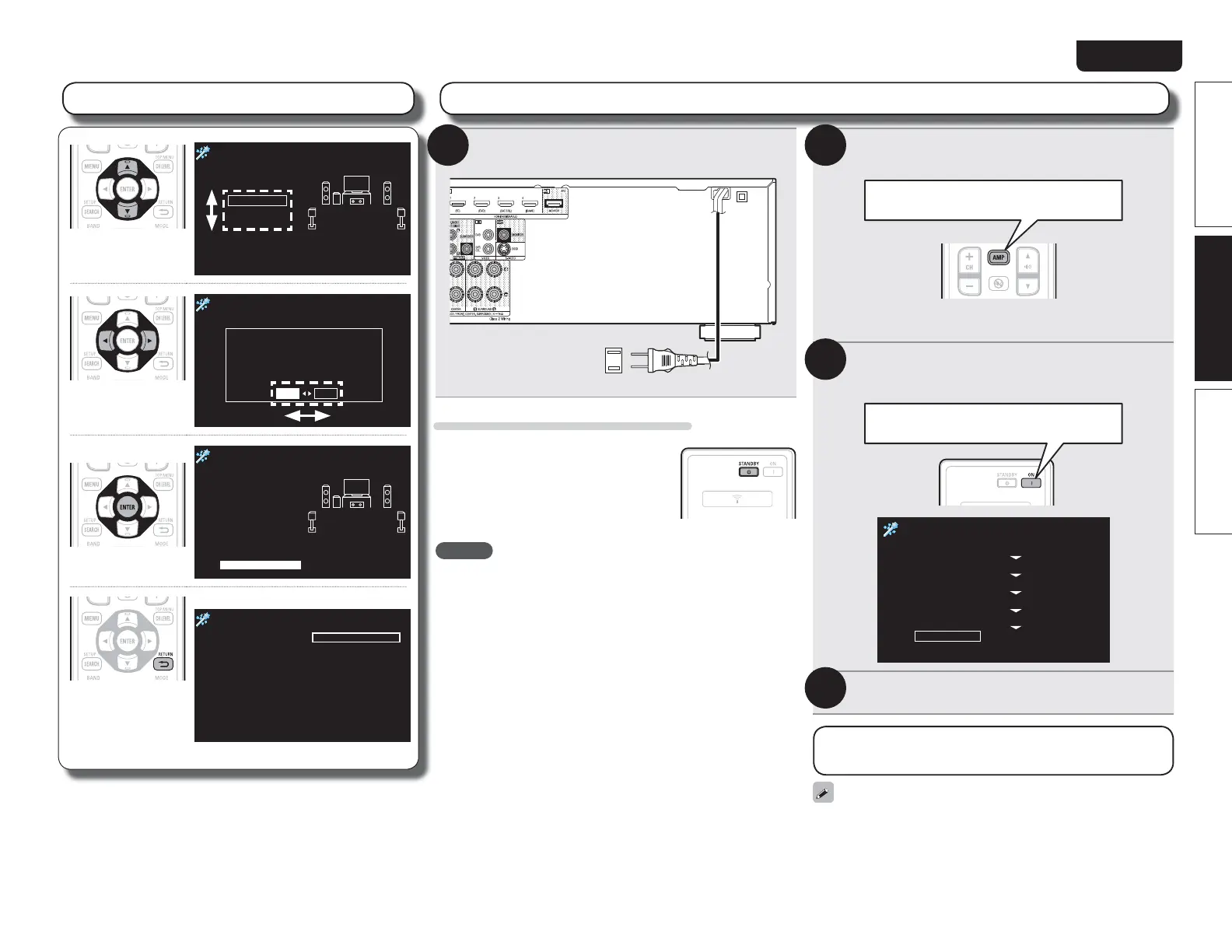

Preparation PlaybackSetup Wizard
Basic operation of Setup Wizard
Move to the item that
you want to configure
using
ui.
Please select the
speaker configuration
to be used.
5.1ch
Others
5.1ch is the most
popular surround
system.
Speaker Connection
Move to the item that
you want to configure
using
o p.
Speaker Connection
5.1ch is selected for speaker
system. Select Yes to confirm.
Yes No
Enters the selection.
Please connect the
speakers.
Location CENTER
Terminal
:CENTER
Press [ENTER] for next
connection.
Ready to connect
Speaker Connection
Returns to the start of
each setting.
or
Cancels the Setup
Wizard.
Do you wish to stop
and exit wizard?
You can restart he
setup wizard anytime
using the on screen
menu.
Setup Wizard
Yes
No
Getting Started
Insert the main unit power plug into the wall
socket.
To household power outlet
(AC 120 V, 60 Hz)
Power cord
1
Press AMP to set the remote control unit to AMP-
operation mode.
Switch the AMP-operation mode
tThis remote control is a preset remote control that can be used to
control connected devices.
Press ON ( Z ) to the this unit.
The power switches on, and the Setup Wizard start screen is
displayed on the television screen.
Power on
1. Language Select
2. Speaker Connection
3. Speaker Calibration
4. Source Setup
5. Remote Setup
Complete
This wizard assists
connection and setup
of receiver step by
step using cursor,
enter or return keys
on remote.
Press [ENTER] to start.
Start
Setup Wizard
Press ENTER.
Start the Setup Wizard.
Setup Wizard has started.
Please follow the message on screen.
To start the Setup Wizard again after exiting it, select “Setup
Wizard” in the menu (vm page 46 “Menu map”).
2
3
4
When power is switched to standby
Press STANDBY (X).
GPower indicator status in standby modeH
tNormal standby : Off
tWhen “HDMI Control” (vm page 62) is
set to “ON” : Red
NOTE
During power standby, a minimal amount of power is consumed. To
totally cut off the power, remove the power cord from the power
outlet.
