Denon AVR-1612 Manual

6
ENGLISH

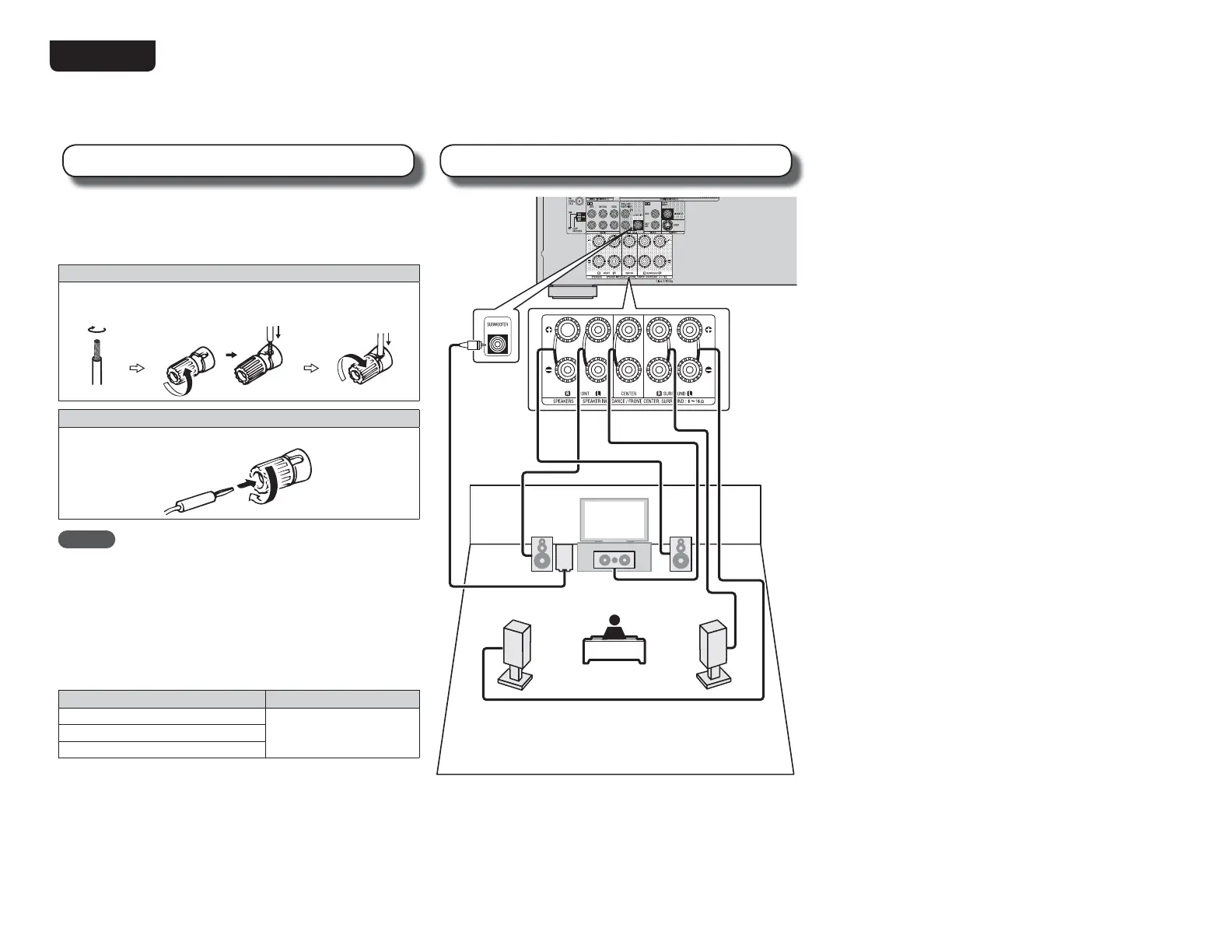

Connect
Carefully check the left (L) and right (R) channels and
+ (red) and – (black) polarities on the speakers being
connected to the this unit, and be sure to interconnect
the channels and polarities correctly.
Connecting the speaker cables
Peel off about 0.03 ft/10 mm of sheathing from the tip of the
speaker cable, then either twist the core wire tightly or terminate it.
When using a banana plug
Tighten the speaker terminal firmly before inserting the banana plug.
NOTE
tConnect so that the speaker cable core wires do not protrude
from the speaker terminal. The protection circuit may be
activated if the core wires touch the rear panel or if the + and
– sides touch each other (
vm page 90 “Protection Circuit”).
tNever touch the speaker terminals while the power supply is
connected. Doing so could result in electric shock. (When the
Setup Wizard is running, follow the instructions in the Setup
Wizard screen for making connections.)
tUse speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 ΩCENTER
SURROUND
nConnecting the speakers
The speakers are connected in “2. Speaker Connection” of the Setup Wizard but if you did not use or cancelled the Setup Wizard, connect the speakers as shown below.
For details, see the included CD-ROM (Owner’s manual).
5.1-channel
FL FR
C
SL
SR
SW

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
