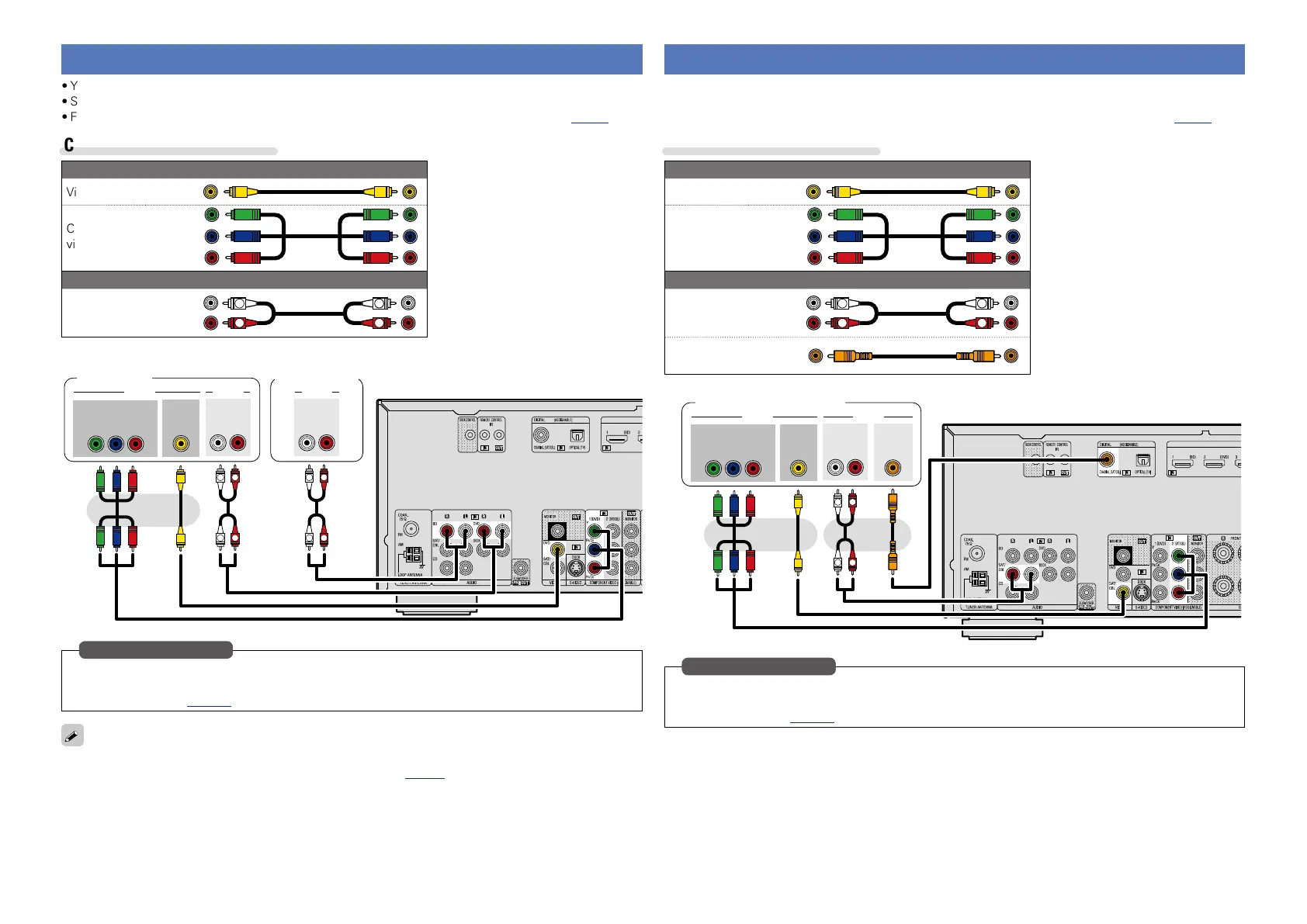

Connecting a set-top box (Satellite tuner/Cable TV)
•You can watch satellite or cable TV.
•Select the connector to use and connect the device.
•For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage6).
Cables used for connections
Video cable (sold separately)
Video cable
Component
video cable
Audio cable (sold separately)
Audio cable
R
L
R
L
Coaxial
digital cable
R
L
R
L
VIDEO AUDIO
AUDIO
RL
OUT
OUT
VIDEO
COMPONENT VIDEO
Y P
B PR
OUT
OUT
COAXIAL
Satellite tuner/Cable TV
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage70)
in Set as Necessary
Connecting a Blu-ray Disc player/DVD player
•You can enjoy video and audio from a Blu-ray Disc or DVD.
•Select the connector to use and connect the device.
•For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage6).
Cables used for connections
Video cable (sold separately)
Video cable
Component
video cable
Audio cable (sold separately)
Audio cable
R
L
R
L
R
L
R
L
R
L
R
L
VIDEO AUDIO
AUDIO
RL
OUT
OUT
VIDEO
COMPONENT VIDEO
Y P
B PR
OUT
AUDIO
AUDIO
RL
OUT
Blu-ray Disc
player
DVD player
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage70)
in Set as Necessary
When you want to play back HD Audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus, DTS Express) and Multi-
channel PCM with this unit, use an HDMI connection (vpage 6 “Connecting an HDMI-compatible
device”).
