Denon AVR-1712 User Manual

32
Here we describe the installation, connection and
setup methods for speakers other than 5.1-channel
speakers. For the installation, connection and setup
methods for 5.1-channel speakers, see C page 4
“Setup Wizard”.
Use Audyssey
®
Auto Setup function of this unit
to automatically detect the number of connected
speakers and perform optimal settings for the
speakers to be used.
Procedure for speaker settings
Install
Connect (vpage34)
Set up speakers (vpage39)
Install
This unit is compatible with Dolby Pro Logic gz (vpage 92),
which offers an even wider and deeper surround sensation.
When using Dolby Pro Logic gz, install front height speakers.

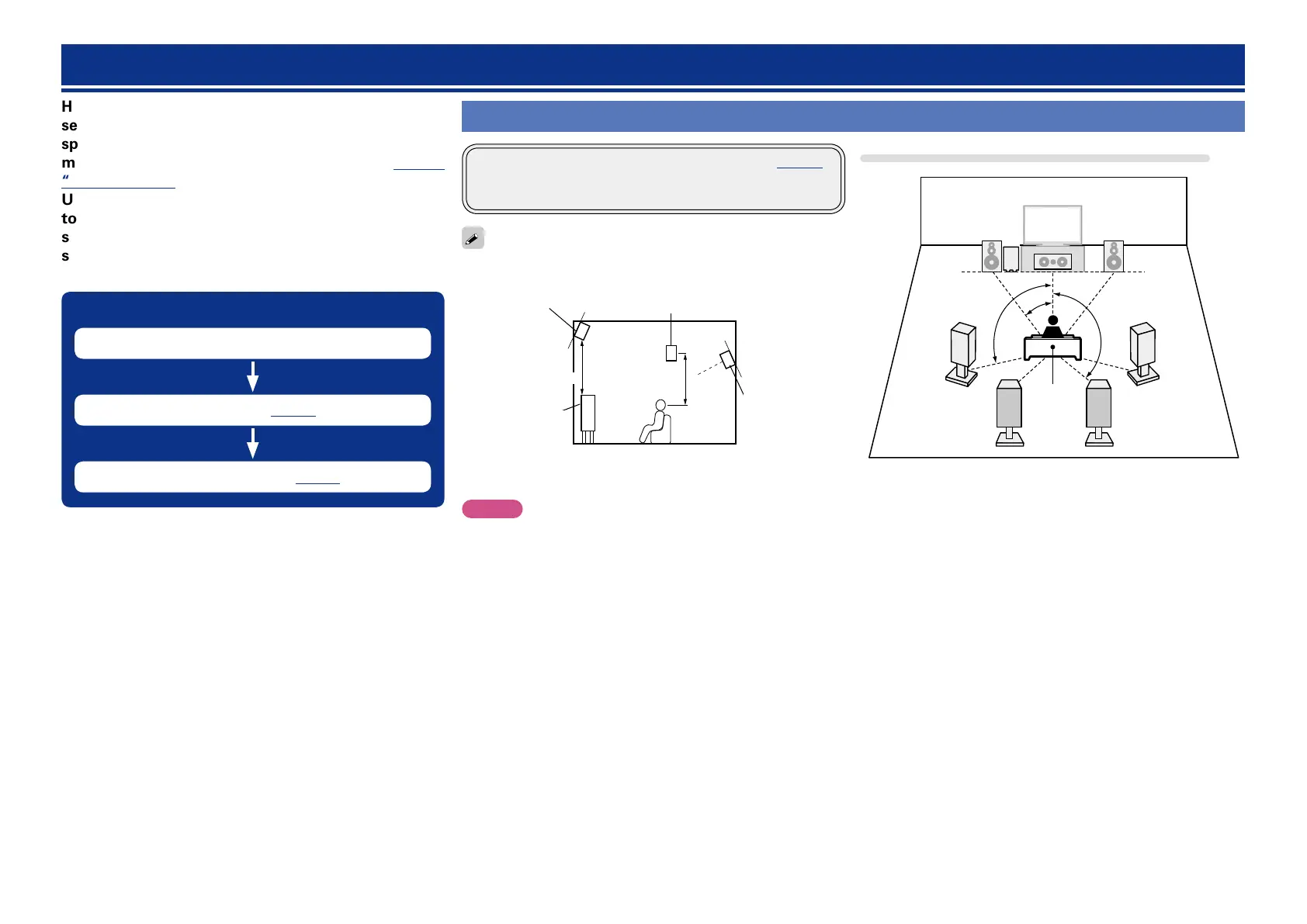

Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
z
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front height
speaker
•Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
•Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
NOTE
It is not possible to use the surround back speakers and front height
speakers simultaneously.
When 7.1ch (Surround back speaker) installed
FL FR
C
SBL SBR
SL
SR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚
GSpeaker abbreviationsH
FL Front speaker (L) SL Surround speaker (L)
FR Front speaker (R) SR Surround speaker (R)
C Center speaker SBL Surround back speaker (L)
SW Subwoofer SBR Surround back speaker (R)
Speaker installation/connection (Advanced connection)
Basic version
Advanced version
Information
Advanced version
vSee overleaf
