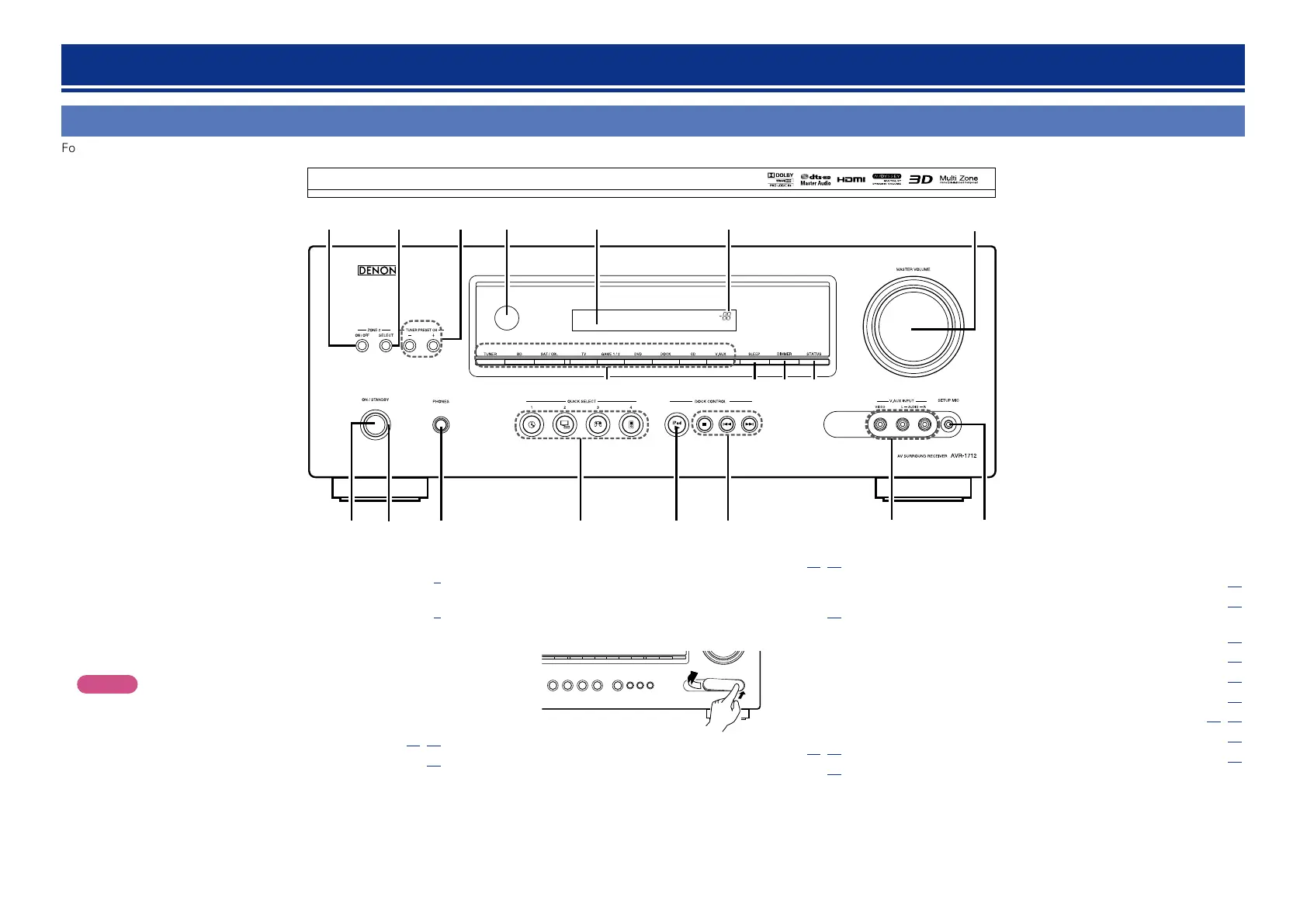

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q2Q3Q5 Q4 Q1
Q0 o
i
u
Q7Q6 Q8 Q9
tr yewq
q Power operation button
(ON/STANDBY) ································································· (C 5)
Turns power to this unit on and off (standby).
w Power indicator ································································· (C 5)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r QUICK SELECT buttons ···················································· (44, 46)
t iPod play button (iPod 1) ······················································· (24)
Q0 Master volume indicator
Q1 Display ······················································································ (82)
Q2 Remote control sensor ··························································· (85)
Q3 Tuner preset channel buttons
(TUNER PRESET CH +, –) ························································ (26)
Q4 ZONE2 SELECT button ··························································· (45)
Q5 ZONE2 ON/OFF button ··························································· (45)
Q6 Input source select buttons ···················································· (20)
Q7 SLEEP button ····································································· (42, 46)
Q8 DIMMER button ······································································· (66)
Q9 STATUS button ······································································· (58)
y iPod system buttons ························································· (23, 96)
•Stop button (2)
•Skip buttons (8, 9)
u V.AUX INPUT connectors ······················································· (10)
Remove the cap covering the connectors when you want to use
them.
i SETUP MIC jack ································································· (15, 39)
o MASTER VOLUME control knob ············································ (21)
