7.1-channel (Front height speaker) connection

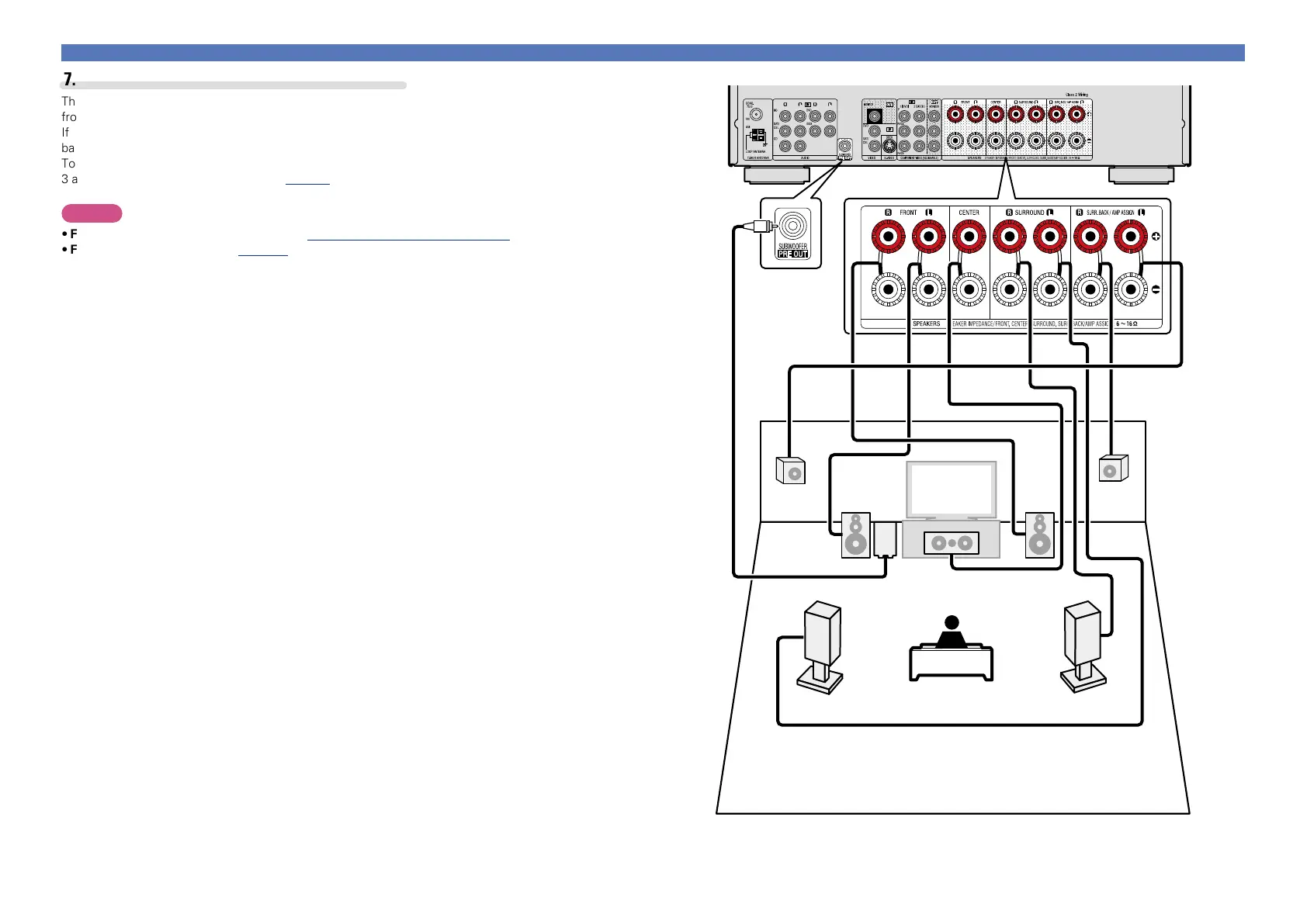

The illustration on the right shows a connection example for performing 7.1-channel playback using the
front height speakers.
If you connect the surround back and front height speakers before you start playback, the audio is played
back by automatically switching the speakers in accordance with the surround mode or input signals.
To perform 7.1-channel playback using the front height speaker, set “Amp Assign” to “F.HEIGHT” in steps
3 and 4 for “Set up “Amp Assign”” (vpage39).
NOTE
•For speaker cable connections, see C page 6 “Connecting the speakers”.
•For speaker impedance, see page34.
FL FR
C
SL
SR
SW
FHRFHL
