37
Connect

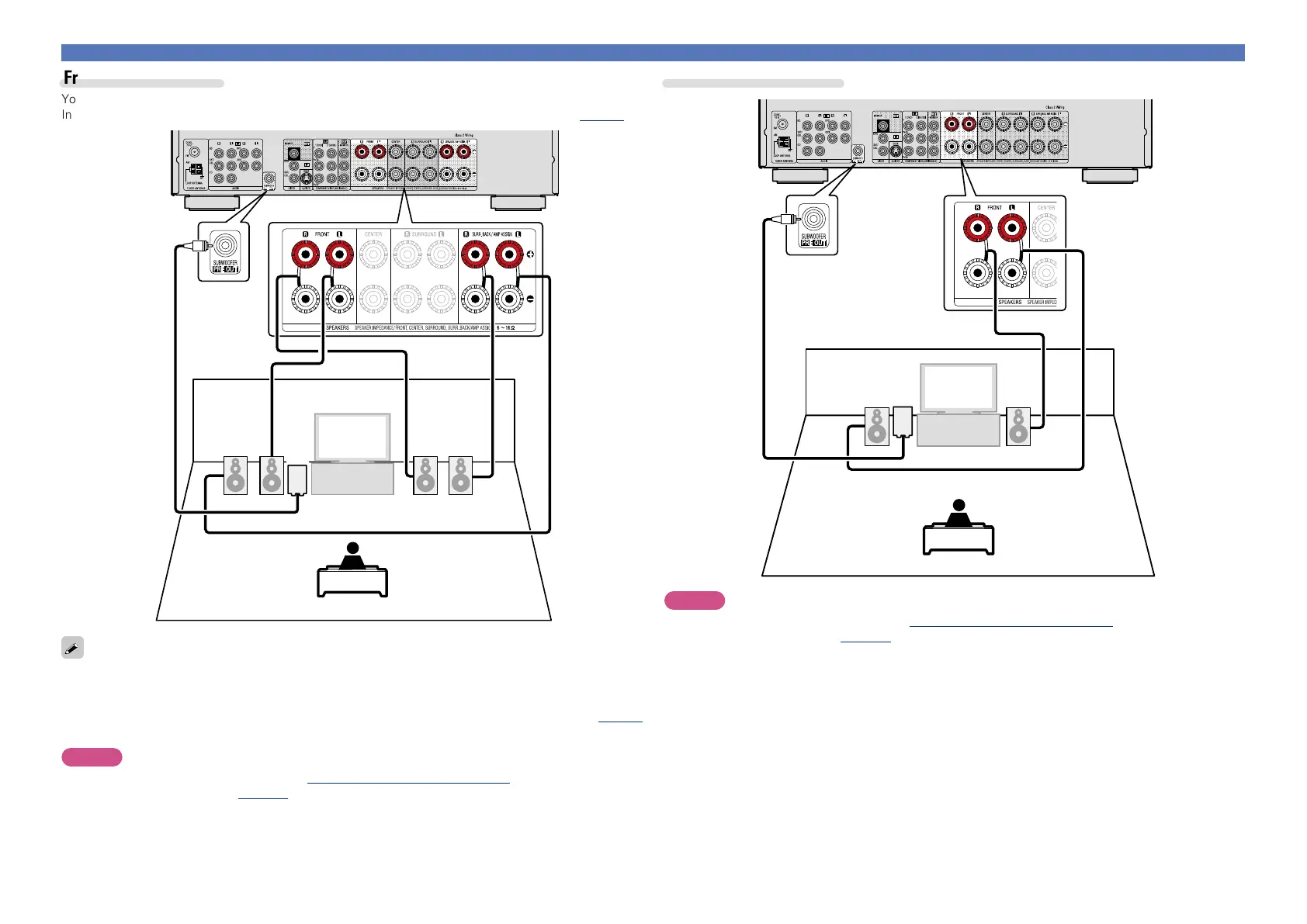

Front A/B connection
You can connect a second set of speakers to this unit and use them for playback.
In this case, set “Amp Assign” to “Front B” in steps 3 and 4 for “Set up “Amp Assign”” (vpage39).
FL(A)FL(B) FR(B)FR(A)
SW
For surround playback of a multichannel source, if you connect the center speaker, surround speakers and
subwoofers, 5.1-channel playback is available.
Front speakers can be used separately, depending on the speaker’s specifications or playback source such
as front speakers (A) for multichannel playback and front speakers (B) for 2-channel playback (vpage62
“Front Sp Setup”).
NOTE
•For speaker cable connections, see C page 6 “Connecting the speakers”.
•For speaker impedance, see page34.
2.1-channel connection
FL FR
SW
NOTE
•For speaker cable connections, see C page 6 “Connecting the speakers”.
•For speaker impedance, see page34.
