Denon AVR-1906 Operating Instructions

ENGLISH
13
ENGLISH

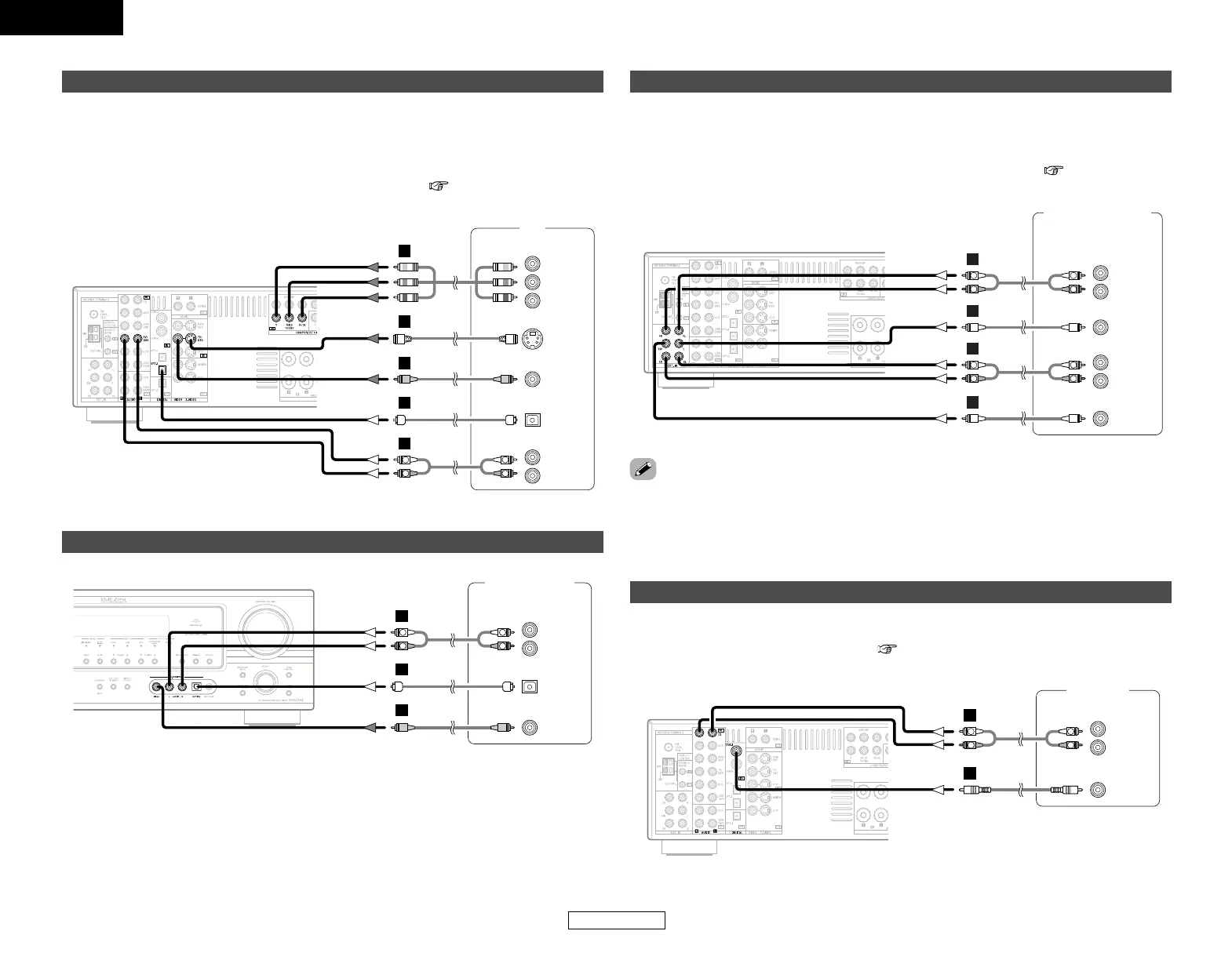

Connecting Other Sources Connecting Other Sources
Connecting a TV/DBS tuner
F
G
A
TV
S VIDEO
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
OPTICAL
OUT
R
L
R
L
H
D
• For best picture quality choose the component video connection to your TV or DBS tuner. S-Video
and composite video inputs are also provided if your TV or DBS tuner does not have component
video outputs.
•To connect the digital audio output from the TV or DBS tuner, you can choose from either the
coaxial or optical connections. If you choose to use the coaxial connection, it needs to be
assigned. For more information about Digital Input Assignment ( page 40).
Connecting a video camera or video game
Video camera /
Video game
R
L
AUDIO OUT
OPTICAL
OUT
VIDEO
OUT
R
L
R
L
A
D
F
Connecting the external inputs (EXT. IN) terminals
DVD Audio-Video /
Super Audio CD player /
External decoder
R
FRONT
L
5.1ch AUDIO OUT
CENTER
R
SURROUND
L
SUB-
WOOFER
L
R
L
R
B
A
B
R
L
R
L
A
• These terminals are for inputting multi-channel audio signals from an external decoder, or a
component with a different type of multi-channel decoder, such as a DVD Audio player, a multi-
channel Super Audio CD player, or another future multi-channel sound format decoder.
• The video signal connection is the same as that for a DVD player.
• For instructions on playback using the external input (EXT. IN) terminals ( page 18).
•With discs on which special copyright protection measures have been taken, the digital signals
may not be output from the DVD player. In this case, connect the DVD player’s analog multi-
channel output to the AVR-1906’s EXT. IN terminals for playback. Also refer to your DVD player’s
operating instructions.
Connecting a CD player
R
L
AUDIO OUT
CD player
COAXIAL
OUT
R
L
R
L
A
C
To connect the digital audio output from the CD player, you can choose either coaxial or optical
connection. If you choose to use the optical connection, it needs to be assigned. For more
information about Digital Input Assignment ( page 40).

Denon AVR-1906 Specifications

Power Amplifier Section

front power output (8 ohms)	85 W + 85 W
front power output (6 ohms)	120 W + 120 W
center power output (8 ohms)	85 W
center power output (6 ohms)	120 W
surround power output (8 ohms)	85 W + 85 W
surround power output (6 ohms)	120 W + 120 W
surround back power output (8 ohms)	85 W + 85 W
surround back power output (6 ohms)	120 W + 120 W

Preamplifier Section

input sensitivity/impedance	200 mV/47 kohms
output level/load impedance	SUBWOOFER 1.2 V/10 kohms
frequency response	10 Hz - 100 kHz (+1, -3 dB)
signal-to-noise ratio	98 dB (IHF-A weighted)
tone control treble	±12 dB at 10 kHz
tone control bass	±12 dB at 100 Hz

FM Section

tuning frequency range (FM)	87.5 - 107.9 MHz
usable sensitivity (FM)	1.0 µV (11.2 dBf)

AM Section

tuning frequency range (AM)	520 - 1710 kHz
usable sensitivity (AM)	18 µV

General

power supply	AC 120 V, 60 Hz
power consumption	5.1 A
dimensions	434 (W) x 147 (H) x 417 (D) mm
weight	11.7 kg
