ENGLISH
16
ENGLISH
Connecting Other Sources Connecting Other Sources
For instructions on operations using the MULTI ZONE functions ( page 35~37).

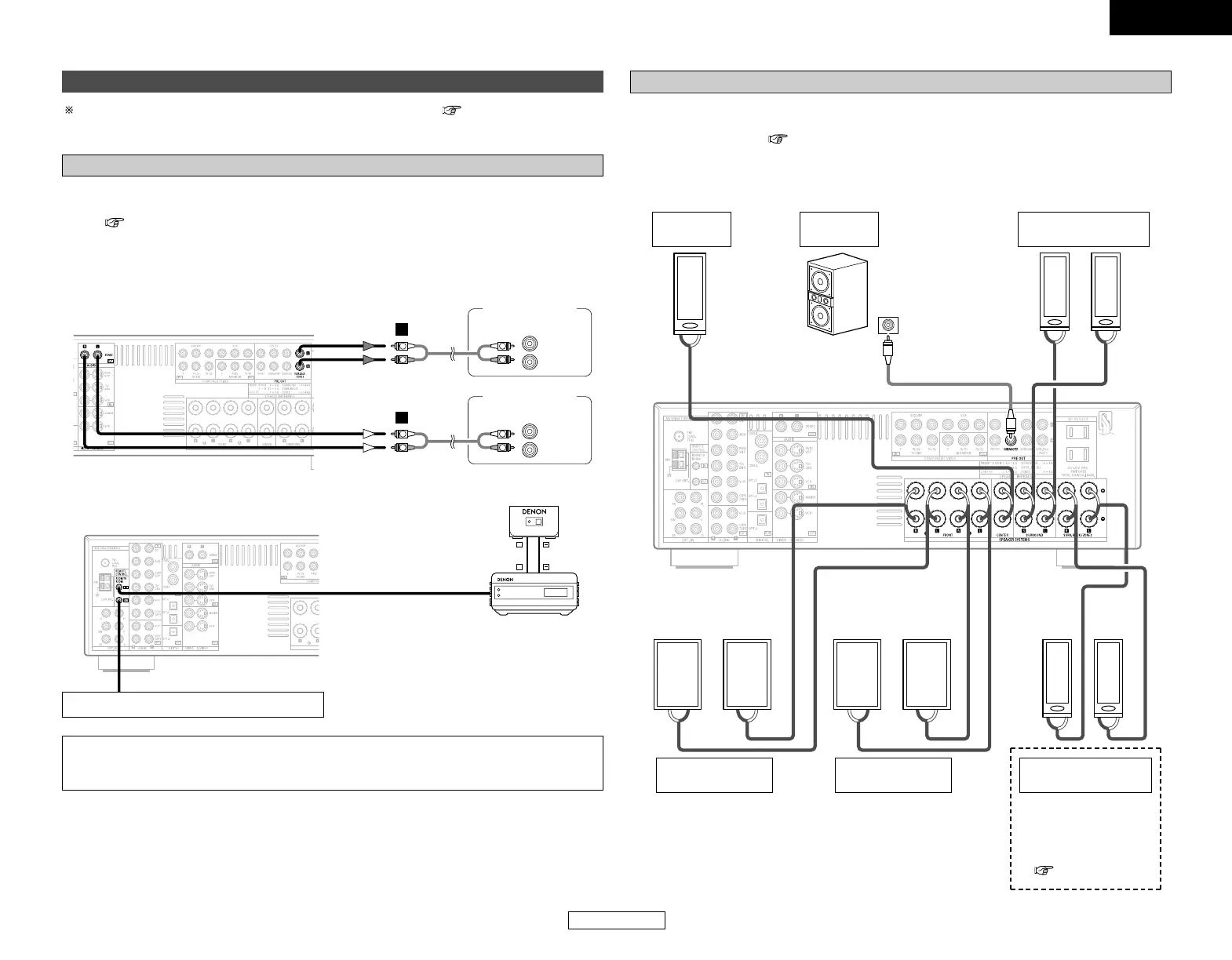

Connecting the MULTI ZONE terminals
• If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 out
(variable/fixed level) terminals can be used to play a different program source in ZONE2 the same
time ( page 35, 36).
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired
and connected between the MAIN ZONE and ZONE2, the remote-controllable devices in the
MAIN ZONE can be controlled from ZONE2 using the remote control unit.
ZONE2 out connections
Power amplifier
(ZONE2)
R
L
IN
Power amplifier
(ZONE2)
R
L
IN
(Variable)
(Fixed)
R
L L
A
R
L
R
L
R
A
NOTE:
• For instructions on installation and operation of separately sold devices, refer to the devices’
operating instructions.
+
+
OUTPUT
INPUT
AUX OUT
RC-616 INFRARED
RETRANSMITTER
RC-617 INFRARED SENSOR
Extension terminals for future use.
•When the power amplifier is assigned to the ZONE2 output channel at “Power Amp Assign.” in
the “System Setup” menu, the surround back speaker terminals can be used as the ZONE2
speaker out terminals ( page 36).
• The connections diagram below is an example for when the surround back speaker is assigned
to the ZONE2 stereo 2 channel.
In this case, surround back speaker out can not be used for MAIN ZONE.
ZONE2 speaker out connections
><<>><<>
><
><><
><><
IN
(
L
) (
R
)
(
L
) (
R
)
(
L
) (
R
) (
L
) (
R
)
Connection terminal
for subwoofer with
built-in amplifier
(subwoofer), etc.
Surround speaker
systems
Subwoofer
Front speaker
systems (B)
Front speaker
systems (A)
Center
speaker
ZONE2 speaker
systems
NOTE:
• The settings must be
changed to use this
speaker for ZONE2
( page 44).
To Next Page
