ENGLISH
Select the terminal to use
and
connect the device.
AUDIO
OUT
L R
00
-----
AUDIO-----
AUDIO OPTICAL OPTICAL
IN
OUT
IN
L R
00
IT£] IT£]
HOMI
OUT
-VIDEO-
Video cassette recorder

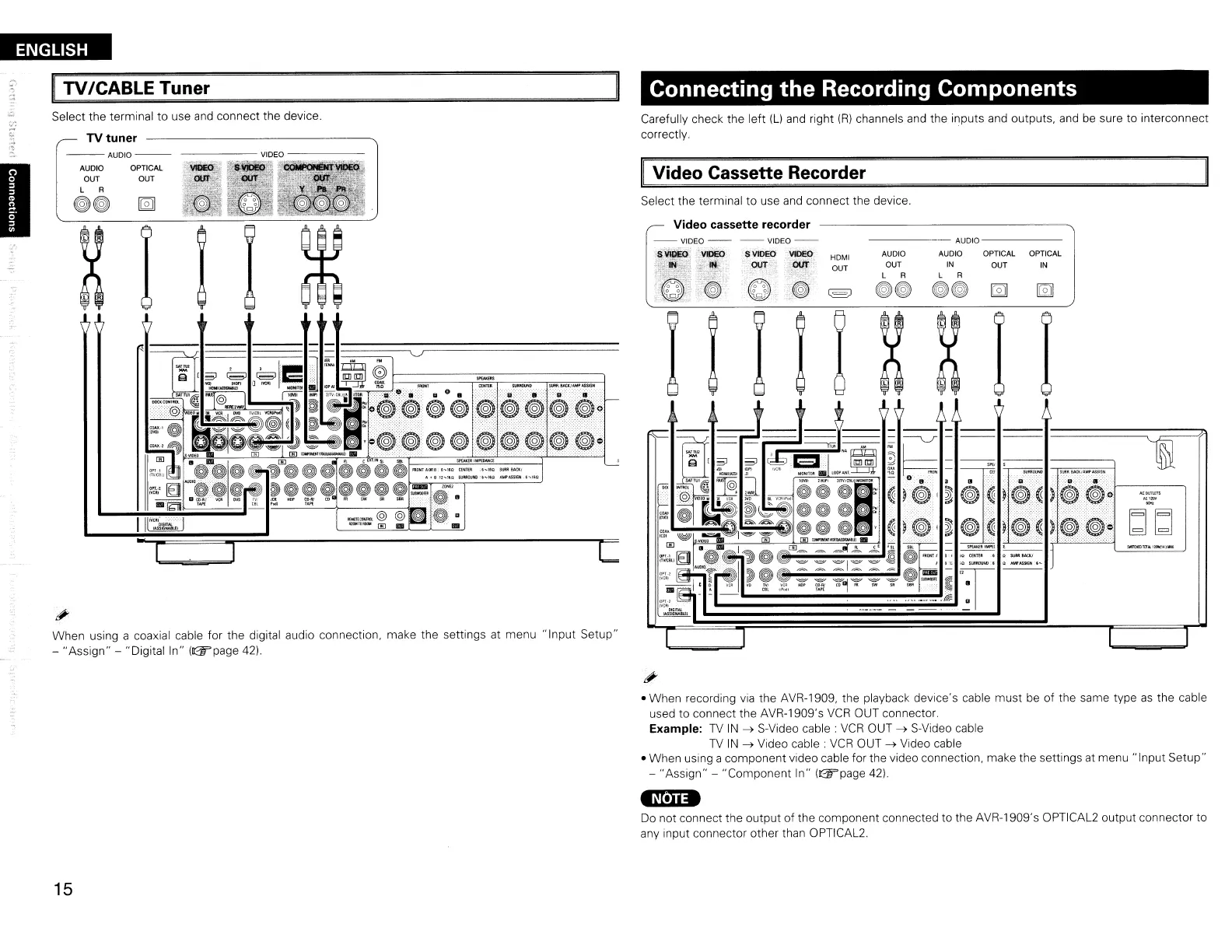

Connecting the Recording Components
Carefully check the left
(l)
and
right
(Rl
channels
and
the inputs
and
outputs,
and
be sure to interconnect
correctly.
~
Video Cassette Recorder
,
When using a coaxial cable for the digital audio connection, make the settings at menu "Input Setup"
- "Assign" -
"Digitalin"
(lJ::§'page
42).
;'
I
TV
ICABLE Tuner
""
Select the terminal to use
and
connect the device.
TV
tuner
-.
• When recording
via
the AVR-1909, the playback device's cable must
be
of the same type
as
the cable
used to connect the AVR-1909's
VCR
OUT connector.
Example:
TV
IN
--+
S-Video cable.
VCR
OUT
--+
S-Video cable
TV
IN
--+
Video cable.
VCR
OUT
--+
Video cable
• When using a component video cable for the video connection, make the settings at menu "Input Setup"
- "Assign" - "Component In"
(lJ::§'page
42)
l1(iU.
Do not connect the output of the component connected to the AVR-1909's OPTICAL2 output connector to
any input connector other than OPTICAL2.
15
