Denon AVR-1909 - Schematic Diagram: CPU Unit

161 pages

To Next Page

To Previous Page

87654321

AVR-1909/789, AVC-1909

SCHEMATIC DIAGRAMS (4/25)

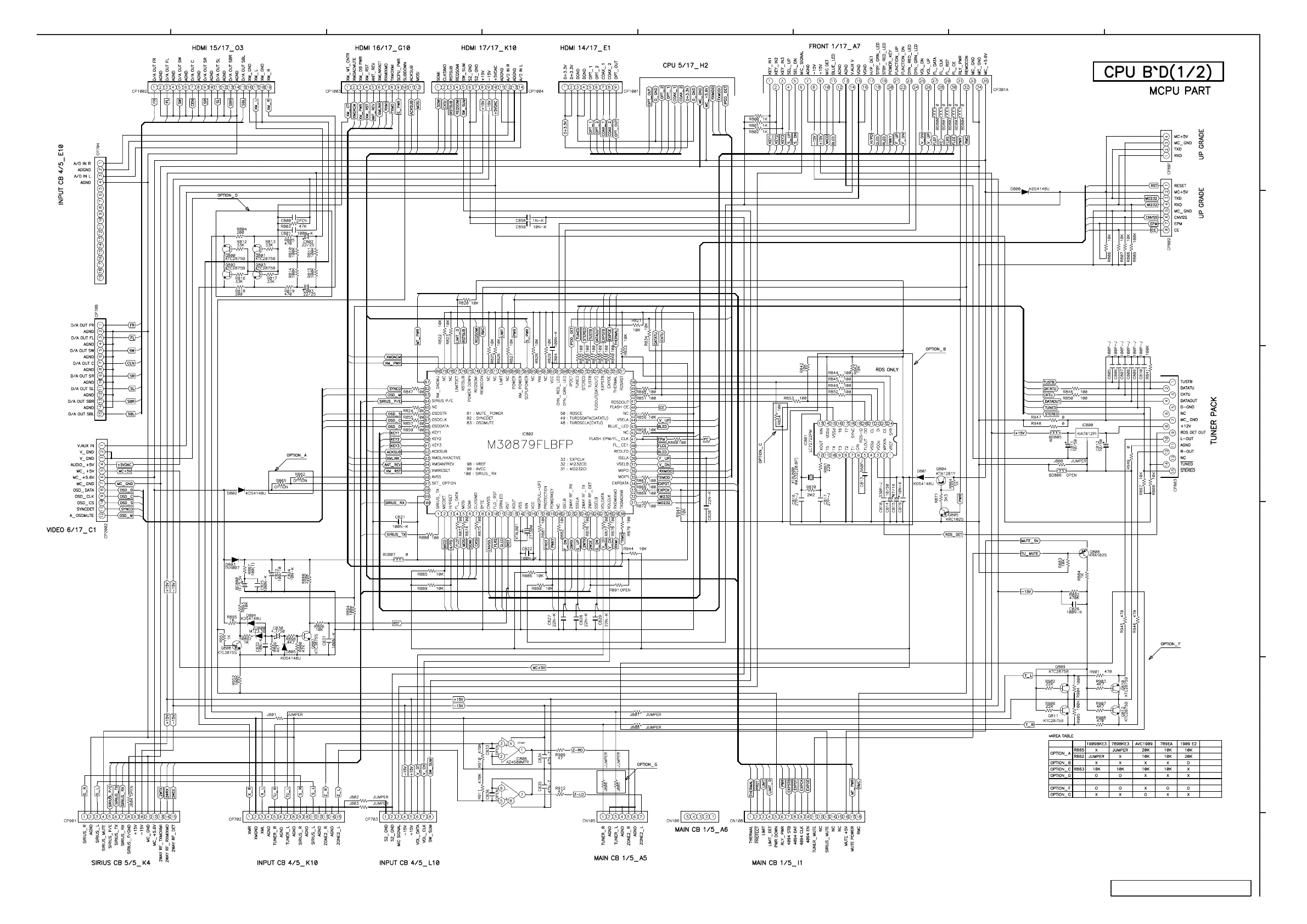

CPU UNIT (1/2)

MCPU PART

Main Page

Service Manual1
