Denon AVR-1909 - POWER UNIT; SCHEMATIC DIAGRAMS (25;25); SUPPLAY UNIT; REG UNIT

161 pages

To Previous Page

87654321

AVR-1909/789, AVC-1909

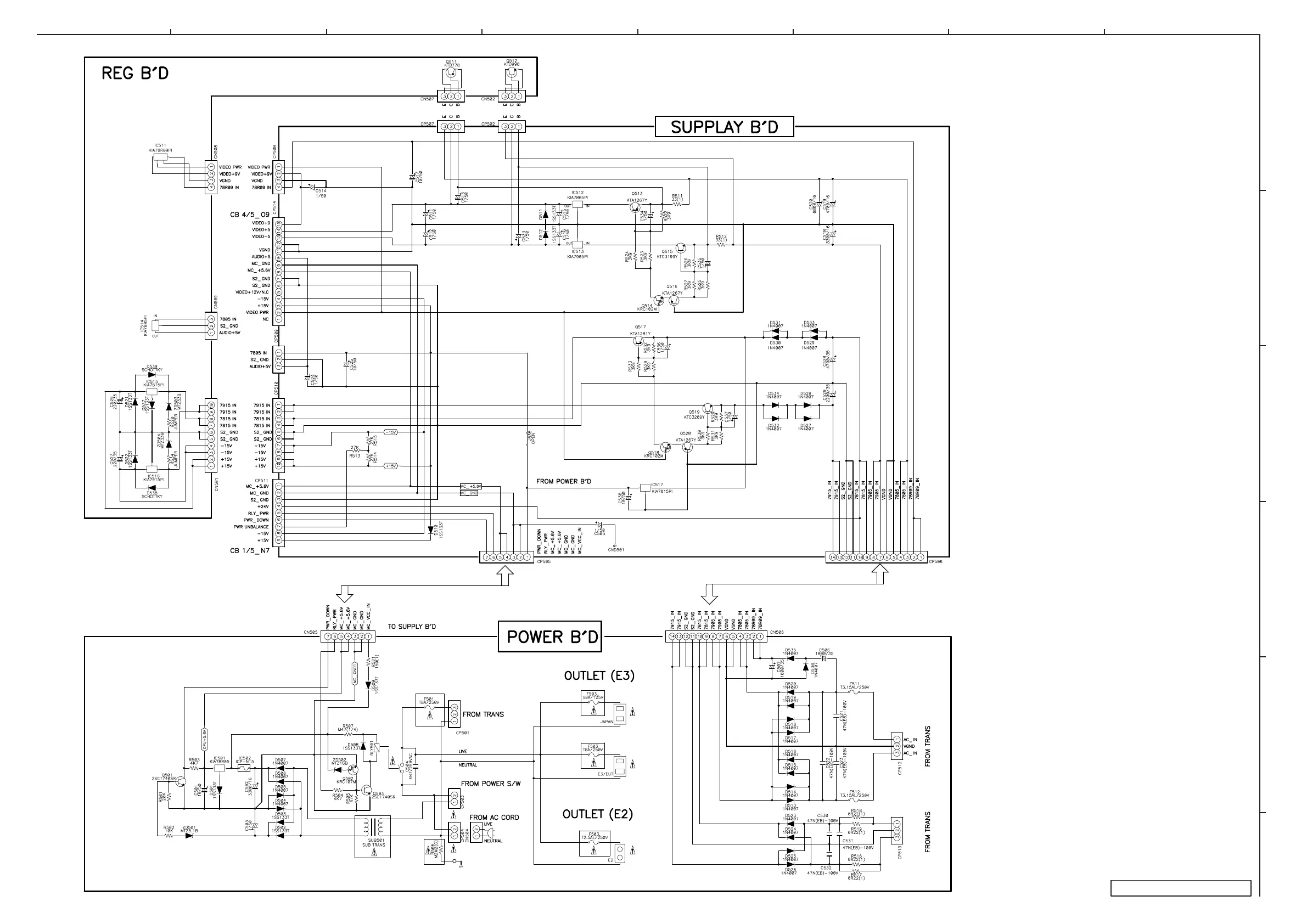

SCHEMATIC DIAGRAMS (25/25)

POWER UNIT

SUPPLAY UNIT

REG UNIT
