Denon AVR-1909 Service Manual

6
AVR-1909/789, AVC-1909
ワイヤー整形図
調整や部品の交換等により、ワイヤー類の結束をはずした
り移動させた場合には、それらの作業が完了した時点でワ
イヤーの整形をおこなってください。正しく整形されてい
ないとノイズ発生の原因となることがあります。
上面からみたワイヤー整形
WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment or
parts replacement etc., be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.

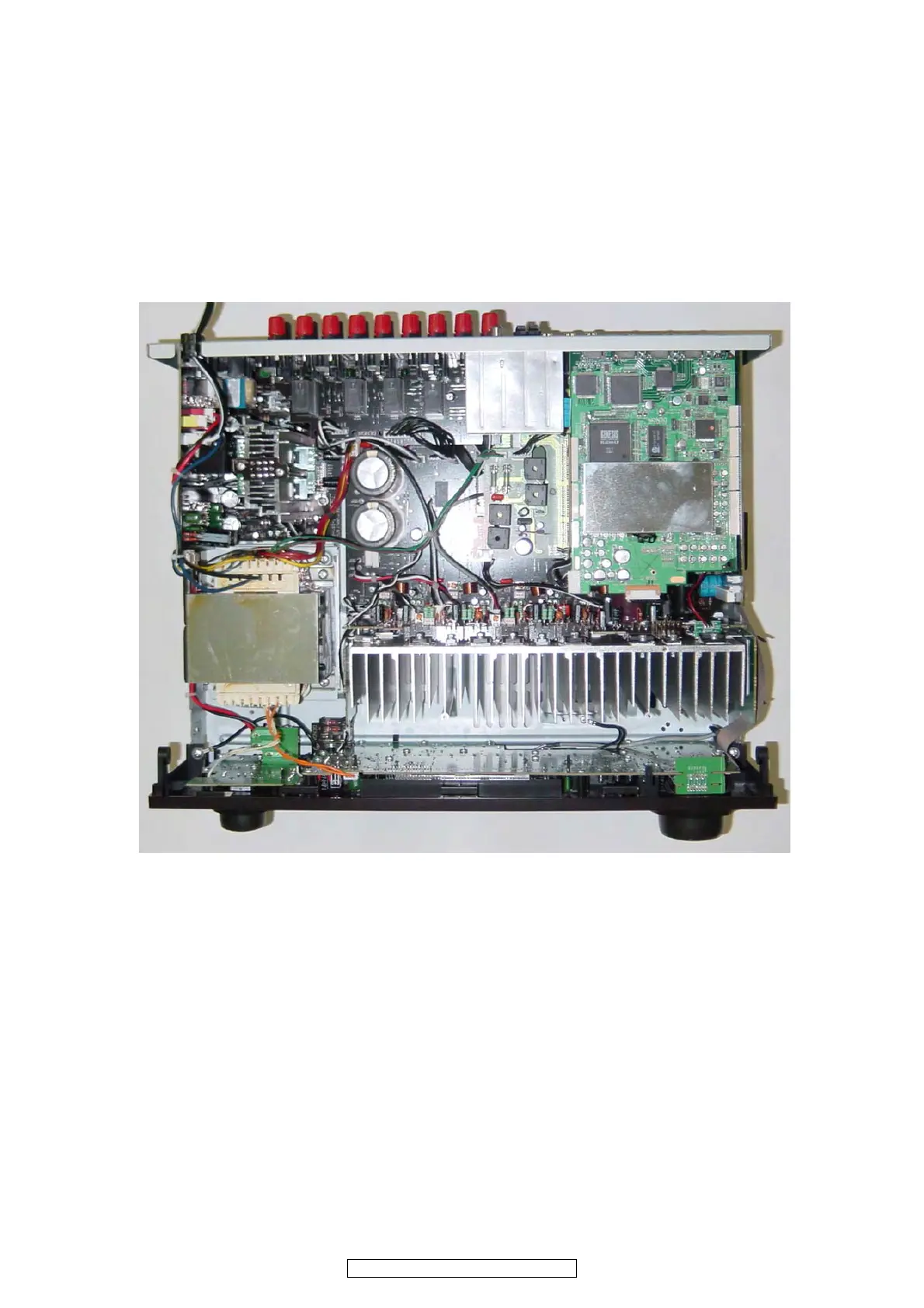

Wire arrangement viewed from the top
Back Panel side
Front Panel side

Denon AVR-1909 Specifications

General

Speakers connectivity type	-
HDMI version	1.3a
Product color	Black
x.v.Color support	Yes
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	90 W
HDMI in	3
Number of HDMI outputs	1
Ethernet LAN	No
