Denon AVR-1909 Service Manual

9
AVR-1909/789, AVC-1909

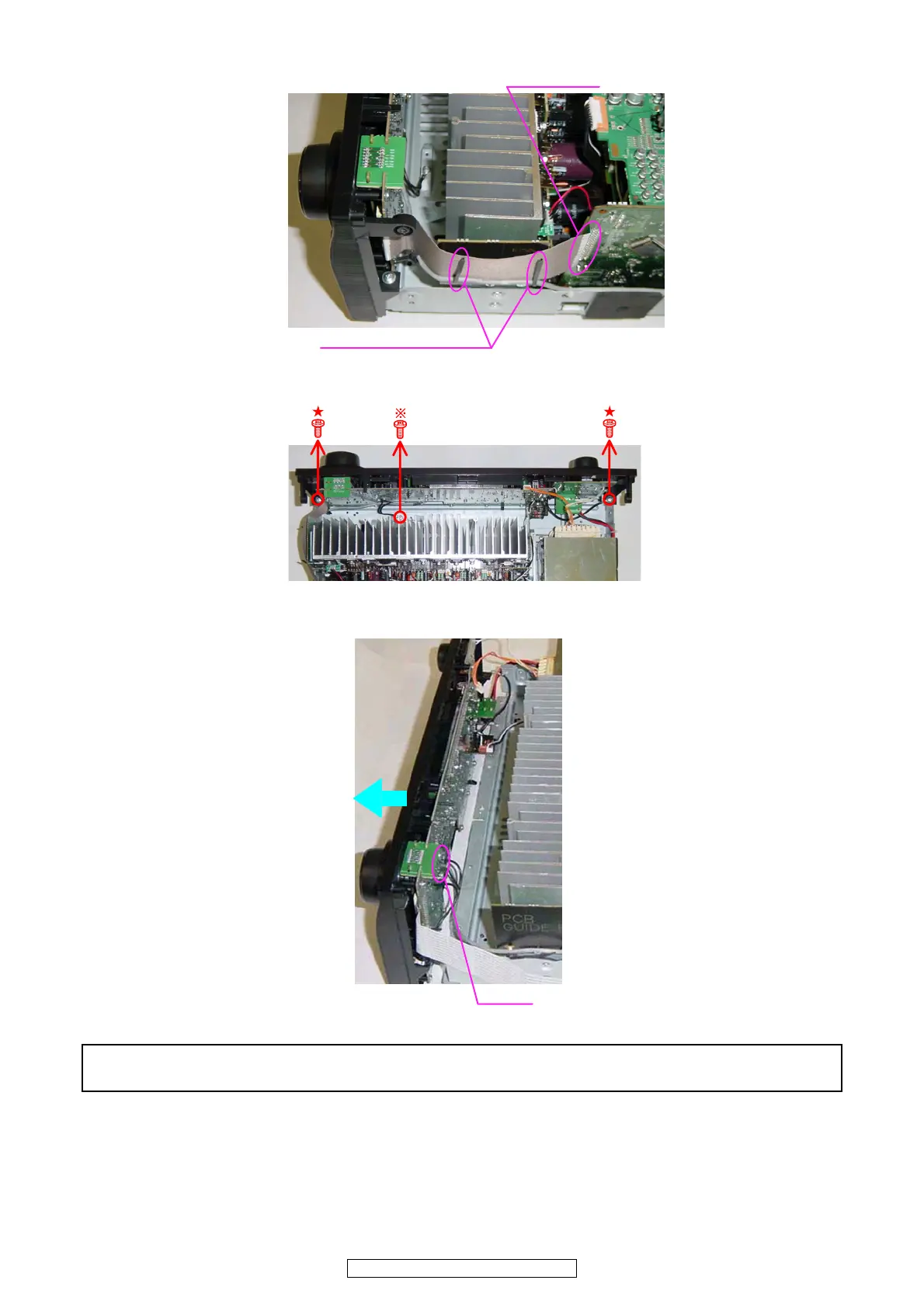

(3) Disconnect the FFC cable.（FFC ケーブルをはずす。）
(4) Remove the screw.（ねじをはずす。）
(5) Disconnect the connector wire.（コネクタワイヤーをはずす。）
CORD HOLDER : Loose
FFC CABLE
Picture C
Top view
Picture C
CN306
Please refer to "EXPLODED VIEW " for the disassembly method of each P.W.B included in PANEL FRONT SUB ASSY .
PANELFRONTSUBASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
