Display
t ryuioQ0Q1Q2
q w e

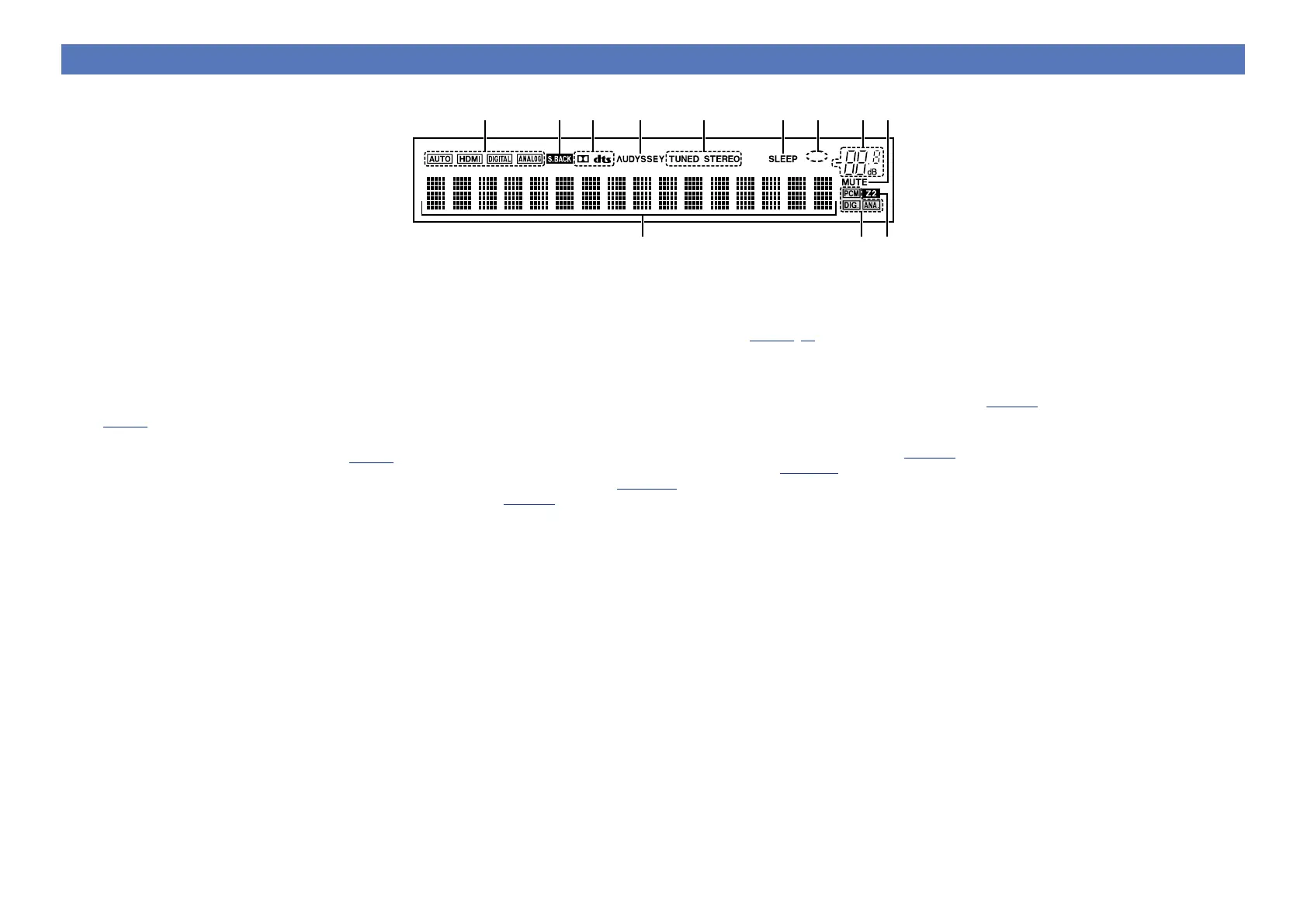

q Information display
The input source name, sound mode, setting values and other
information are displayed here.
w Input signal indicators
e ZONE2 indicators
This lights up when ZONE2 (separate room) power is turned on
(vpage91).
r MUTE indicator
This lights when the mute mode is selected (vpage31).
t Master volume indicator
y Circle indicator
Circle indicator is displayed when the input source is “NETWORK”
or “iPod/USB” when you are playing back music.
u Sleep timer indicator
This lights when the sleep mode is selected (vpage87, 92).
i Tuner reception mode indicators
These light according to the reception conditions when the input
source is set to “FM”.
STEREO : In FM mode, this lights up when receiving analog stereo
broadcasts.
TUNED : Lights up when the broadcast is properly tuned in.
o Audyssey
®
indicator
This indicator lights when the “MultEQ
®
” (vpage 102),
“Dynamic EQ
®
” (vpage 103), or “Dynamic Volume
®
”
(vpage103) setting is set to “On”.
Q0 Decoder indicators
These light when Dolby or DTS signals are input or when the Dolby
or DTS decoder is running.
Q1 Surround back indicator
This lights when audio signals are being output from the surround
back speakers (vpage113).
Q2 Input mode indicators
Set the audio input modes for the different input sources
(vpage110).
