Denon AVR-2310

10
AVR-2310CI/2310/890, AVC-2310
4. PCB DIGI-CNT ASSY
(1) Disconnect the FFC cable and board to board.
(2) Remove the screws.
5. TUNER PACK
(1) Remove the screws.
Proceeding : CABINET TOP HDMI PWB ASSY
→
→
DIGI-CNT PWB ASSY
BRACKET HDMI
→
FFC Cable
Board to board

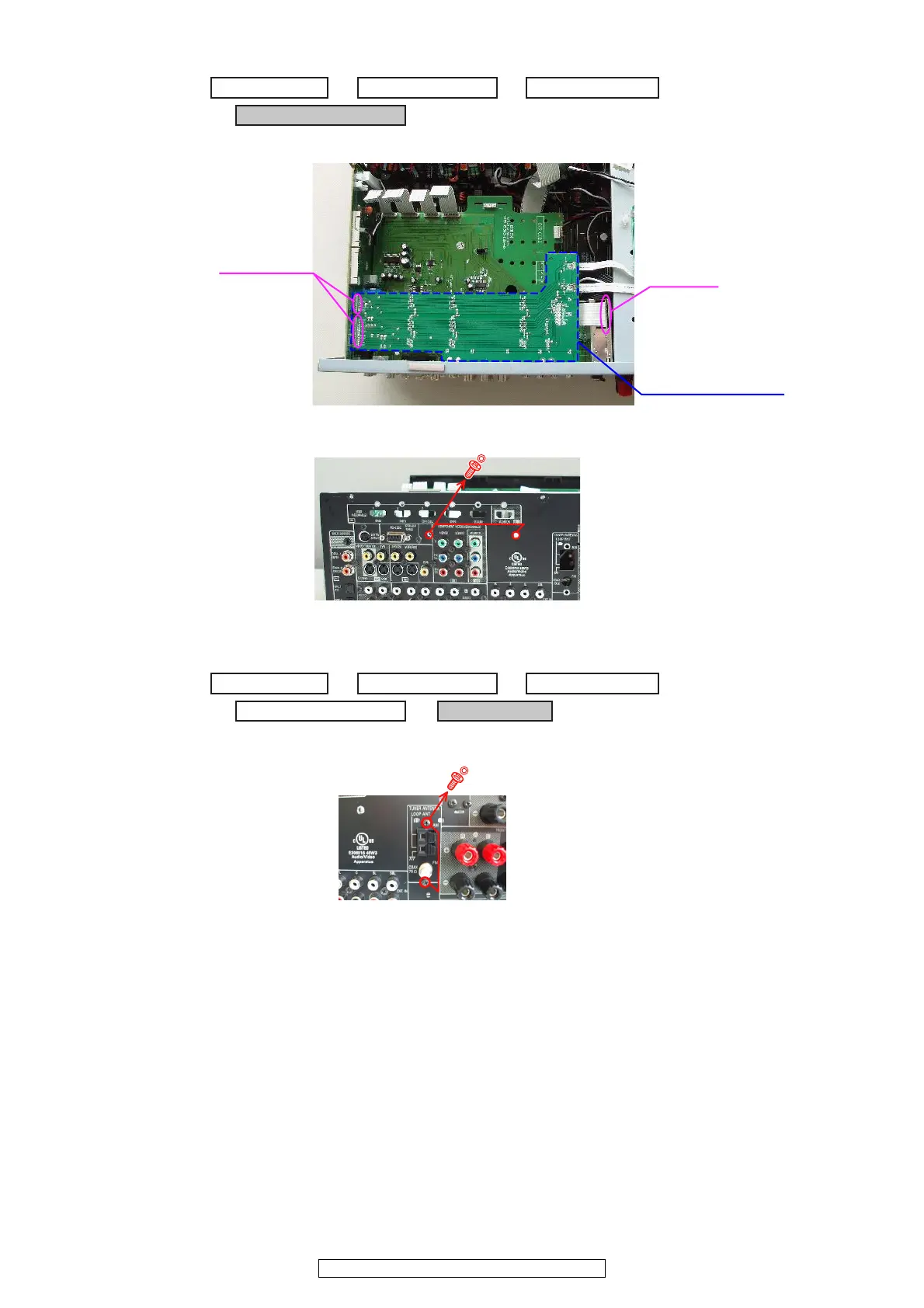

PCB DIGI-CNT ASSY
Direction of photograph: A
→
TUNER PACK
Proceeding : CABINET TOP HDMI PWB ASSY
→
→
DIGI-CNT PWB ASSY
BRACKET HDMI
→
Direction of photograph: A
