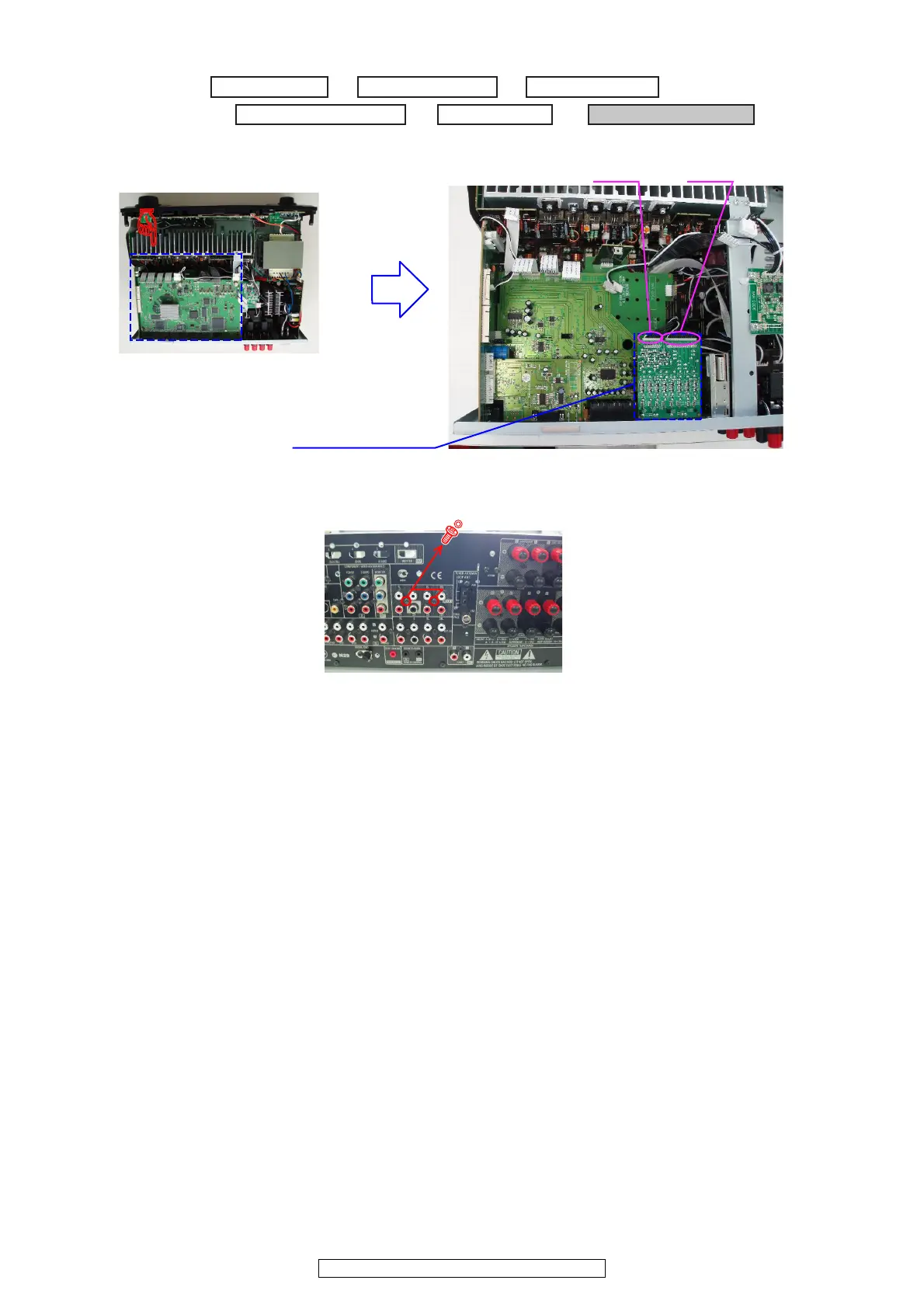

14. PCB PRE OUT ASSY (E2/EA/E1C model)
(1) Disconnect the connector wires.
(2) Remove the screws.
→
TUNER PACK
→
PCB PRE OUT ASSY
Proceeding : CABINET TOP HDMI PWB ASSY
→
→
DIGI-CNT PWB ASSY
BRACKET HDMI
→
v
CN702CN701
PCB PRE-OUT ASSY
Direction of photograph: A
