Denon AVR-2310 Service Manual

7
AVR-2310CI/2310/890, AVC-2310

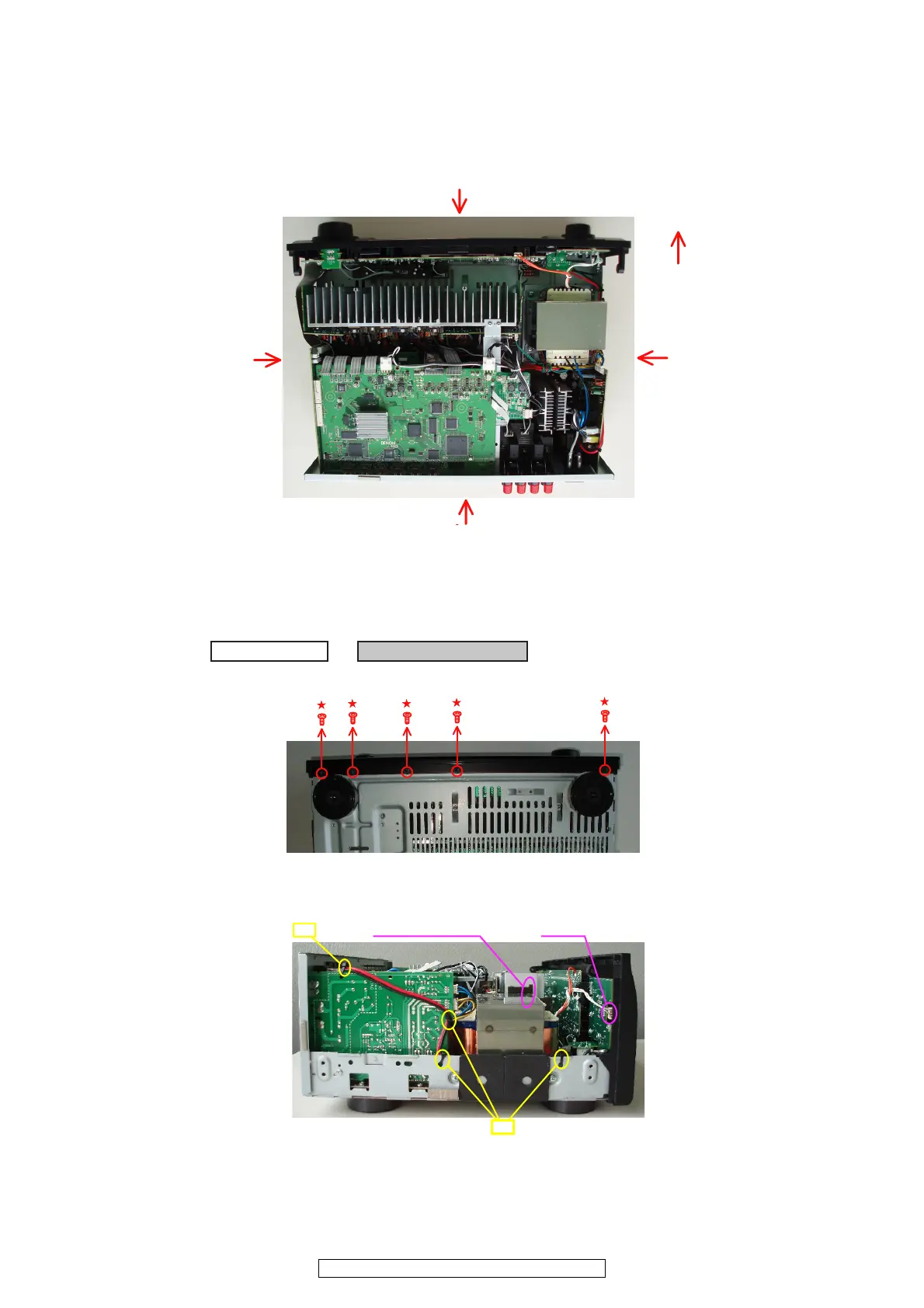

About the photos used for descriptions in the “DISASSEMBLY” section.
• The direction from which the photographs used herein were photographed is indicated at "Direction of photograph: ***" at
the left of the respective photographs.
• Refer to the table below for a description of the direction in which the photos were taken.
• Photographs for which no direction is indicated were taken from above the product.
1. PANEL FRONT ASSY
(1) Remove the screws.
(2) Cut the wire clamp bands, then loose the style pin. Disconnect the connector wire.
The viewpoint of each photograph
(Photografy direction)
［View from above］
Front side
Direction of photograph: B
Direction of photograph: D
Direction of photograph: C
f
Proceeding : CABINET TOP PANEL FRONT ASSY
→
Proceeding : CABINET TOP PANEL FRONT ASSY
→
View from bottom
Direction of photograph: D
Style pin : Loose CP301
cut
cut

Denon AVR-2310 Specifications

General

Equalizer	Yes
Product color	Black
Impedance	8 Ω
Frequency range	10 - 100000 Hz
Total Harmonic Distortion (THD)	0.05 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
S-Video inputs quantity	7
Component video (YPbPr/YCbCr) in	3
Dimensions (WxDxH)	431 x 377 x 171 mm
HDMI ports quantity	5
Connectivity technology	Wired
Headphone connectivity	3.5 mm
S-Video outputs quantity	2
Digital audio optical out	1

Weight and Dimensions

Weight	11200 g
