8
AVR-2310CI/2310/890, AVC-2310

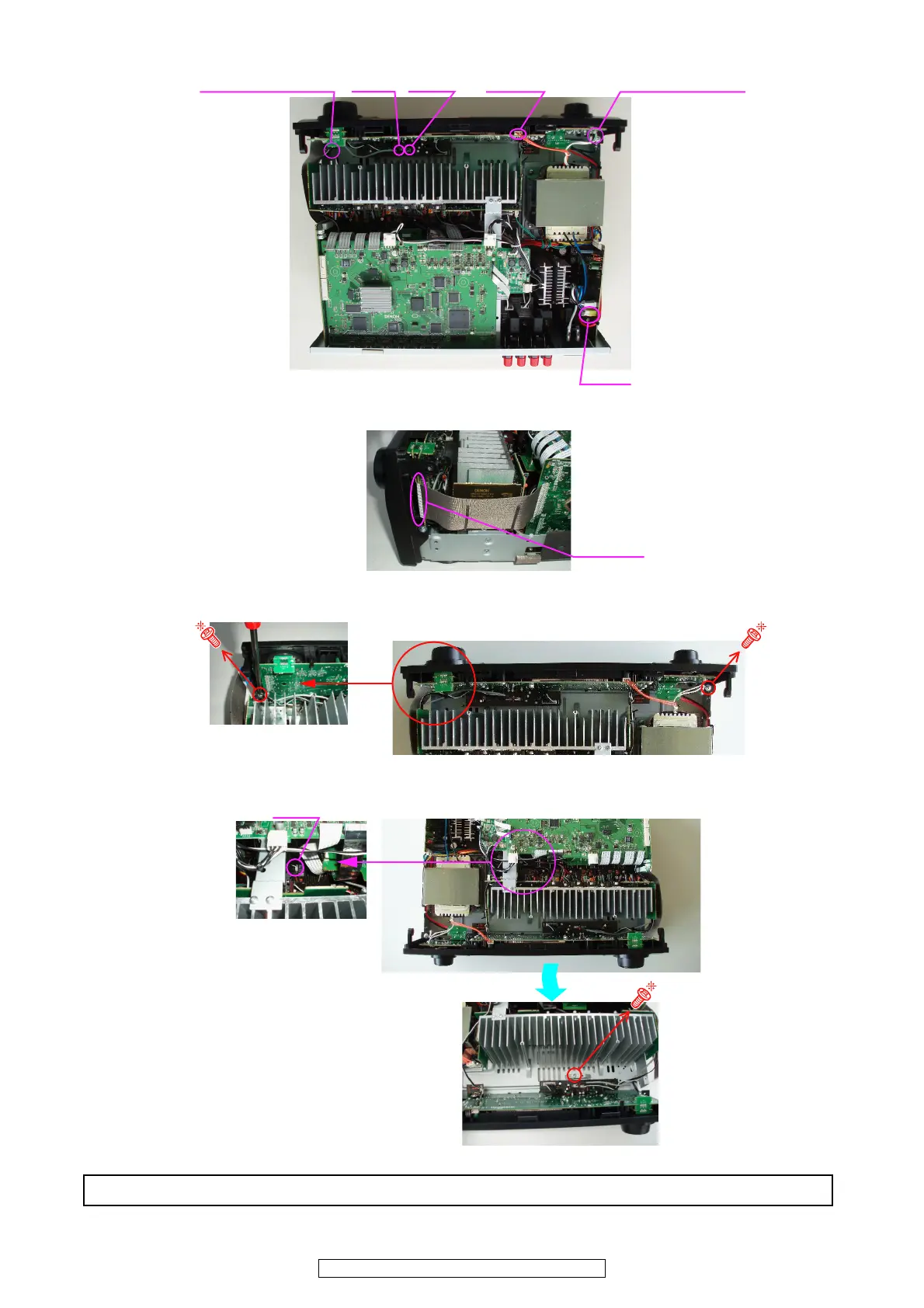

(3) Loose the Cord holders, then disconnect the connector wires.
(4) Disconnect the FFC Cable.
(5) Remove the screws.
(6) Disconnect the connector wire, then remove the screw.
Cord holder : Loose CN306A
CN305 CN303
CP503
Cord holder : Loose
Direction of photograph: C
FFC Cable
CP541
Direction of photograph: D
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in PANEL FRONT ASSY.
