15
AVR-2310CI/2310/890, AVC-2310

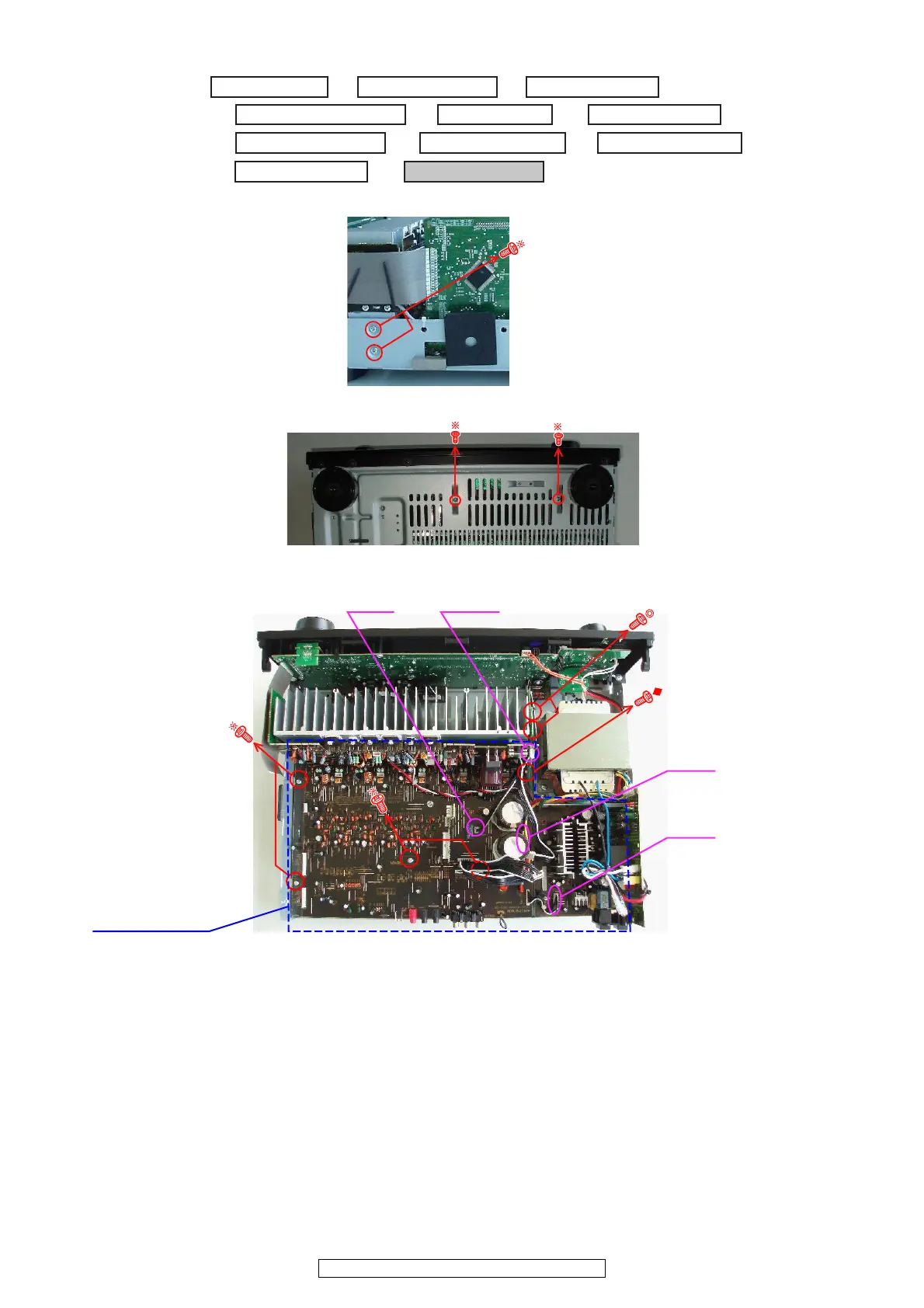

11. PCB MAIN ASSY
(1) Remove the screws.
(2) Disconnect the connector wires, then remove the screws.
→
TUNER PACK
→
CHASSIS BACK
Proceeding : CABINET TOP HDMI PWB ASSY
→
→
DIGI-CNT PWB ASSY
→
PCB SIRIUS ASSY
→
PCB VIDEO ASSY
→
PCB INPUT ASSY
→
PCB CPU ASSY
→
PCB MAIN ASSY
BRACKET HDMI
→
Direction of photograph: C
View from bottom
CP2270CP541
CP104
CP511
PCB MAIN ASSY
