Page #10 background image
10
AVR-2807
(c) PR/CR 信号レベル
調整個所 ： 1U-3737VR605
調整値 ： 525 ± 10ｍV
波形
PR/CR
COMPONENTOUT の PR/CR 信号レベル
(c) Target, P
R/CR-signal
Point : 1U-3737 VR605
Adjustment Value : *525 ± 10mV
Waveform
* : 486 ± 10mV for U.S.A. & Canada model

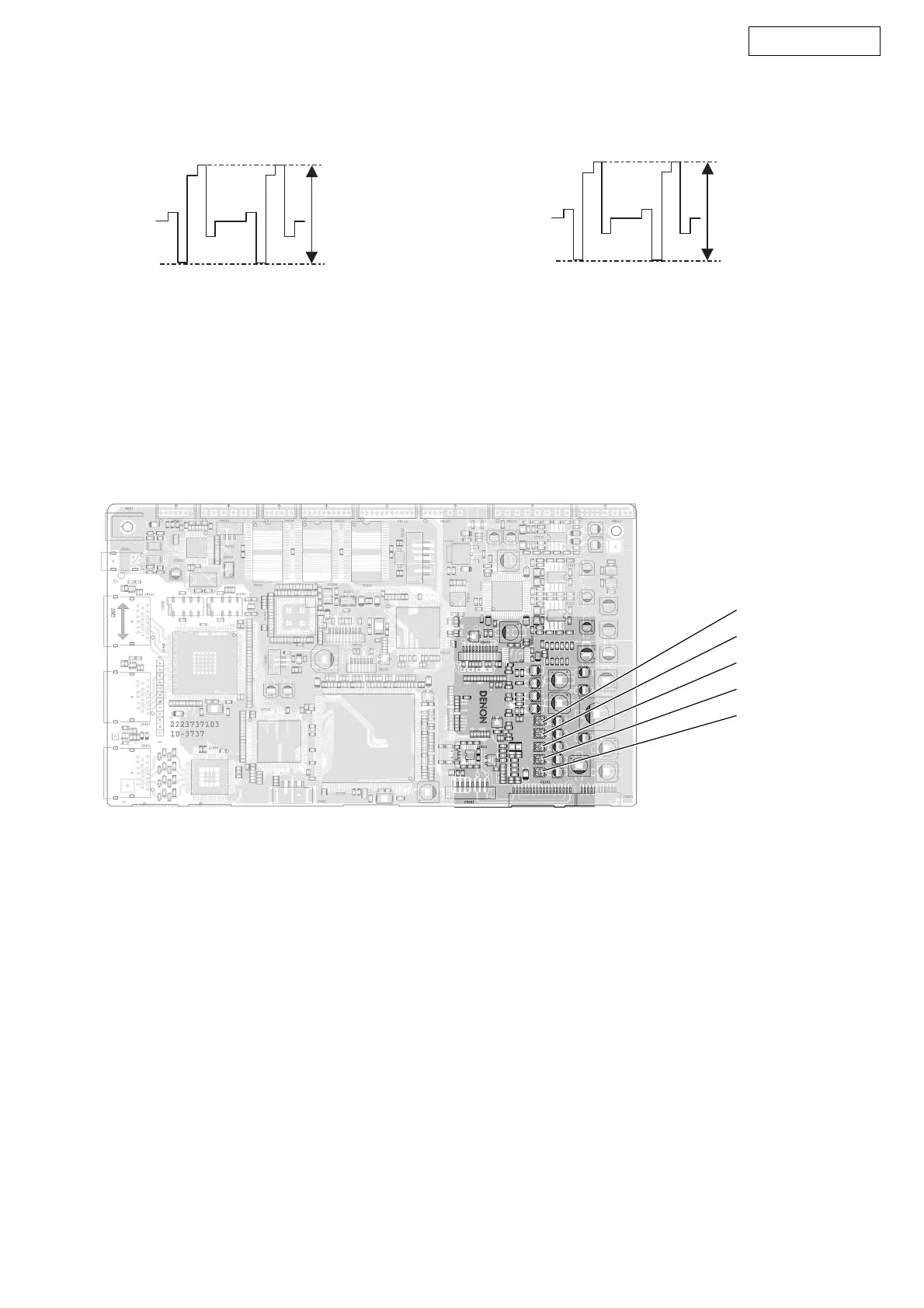

1U-3737 DIGITAL UNIT
PR/CR-signal COMPONENT OUT
PR/CR
VR601 S-Y
VR602 S-C
VR603 Y
VR604 P
B
/C
B
VR605 P
R
/C
R
