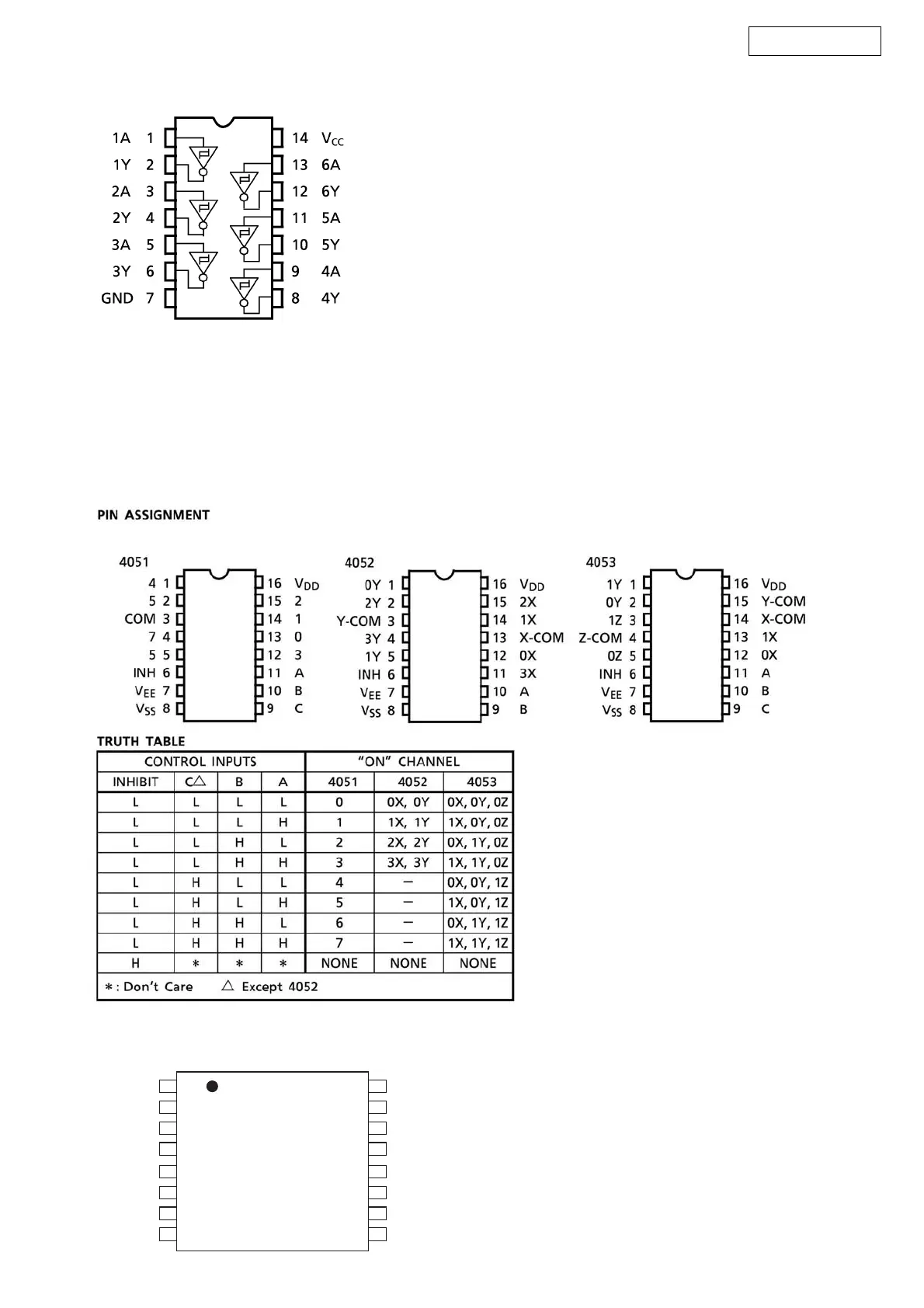

39
AVR-2807
TC74VHC14F (MA : IC904,913)
TC4051BF (FR : IC405,406)
TC4052BF (FR : IC404)
TC4053BF (FR : IC403)
TC4051BFT (AV : IC308,309,310,311)
TC4052BFT (AV : IC307)
TC4053BFT (AV : IC305,306,704)
MM74HC4053SJ (AV : IC701)
AK4385ET (DI : IC804)
1
5
2
6
3
7
4
8
16
15
14
13
12
11
10
9
BICK
MCLK
SDTI
LRCK
PDN
CSN
CCLK
CDTI
DZFR
DZFL
VDD
VSS
AOUTL+
AOUTL-
AOUTR+
AOUTR-
