Denon AVR-3312

105
Audio Check PATH

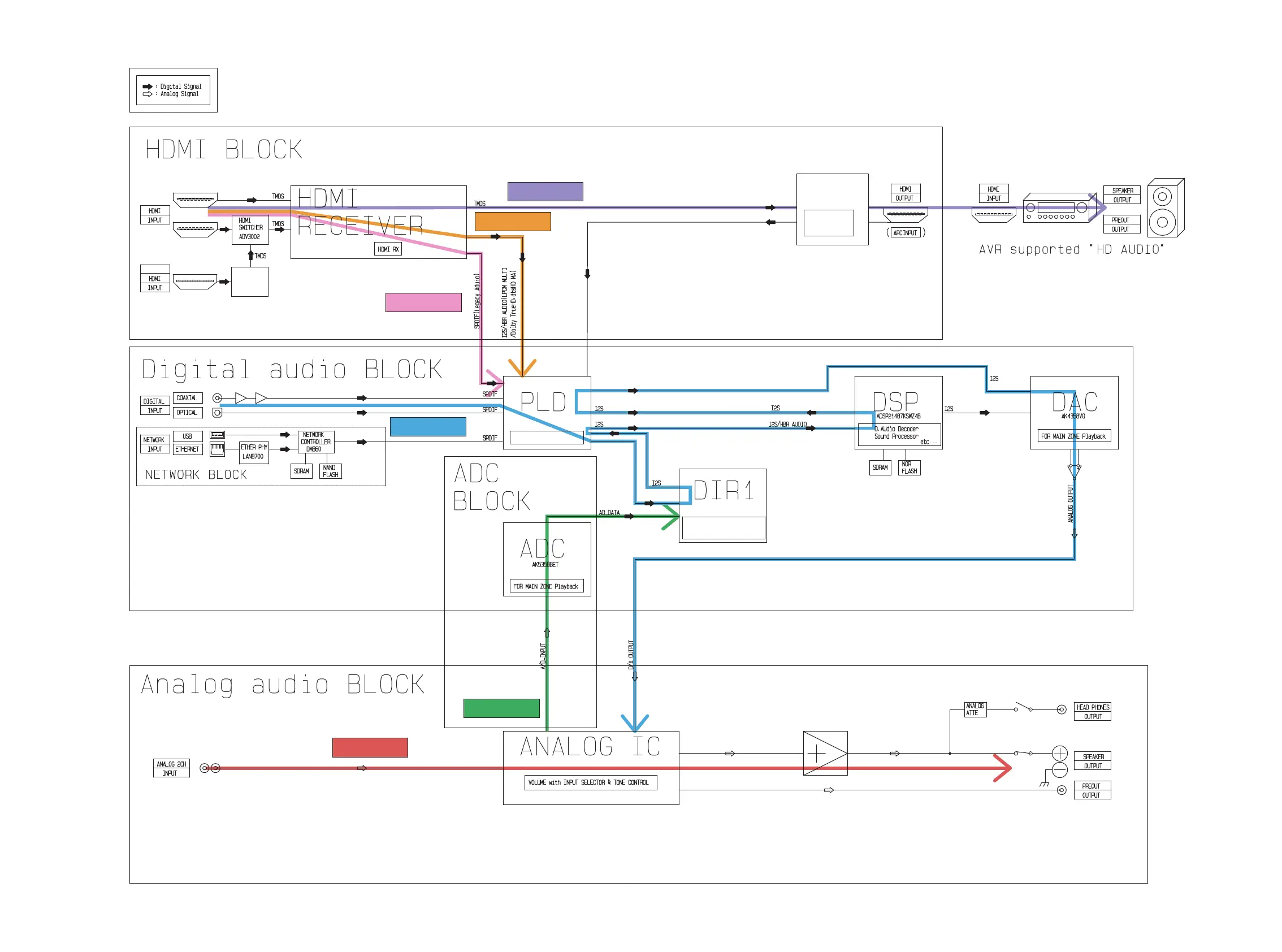

Refer to troubleshooting "4.1. AUDIO CHECK"(97 page).
CHECK1
CHECK3
CHECK2
CHECK4
CHECK5
CHECK6
ADV7844
TMDS
BUFFER
AD8195
ARC(SPDIF)
EPM240T100CN5
SPDIF/I2S SELECTOR
R2A15220FP
LC89058W-E
DIGITAL AUDIO
INTERFACE RECEIVER
FRONT
SPDIF
ADV8002
HDMI
TRANSMITTER
with scaler
video encoder
OSD etc...
