Denon AVR-3312

9

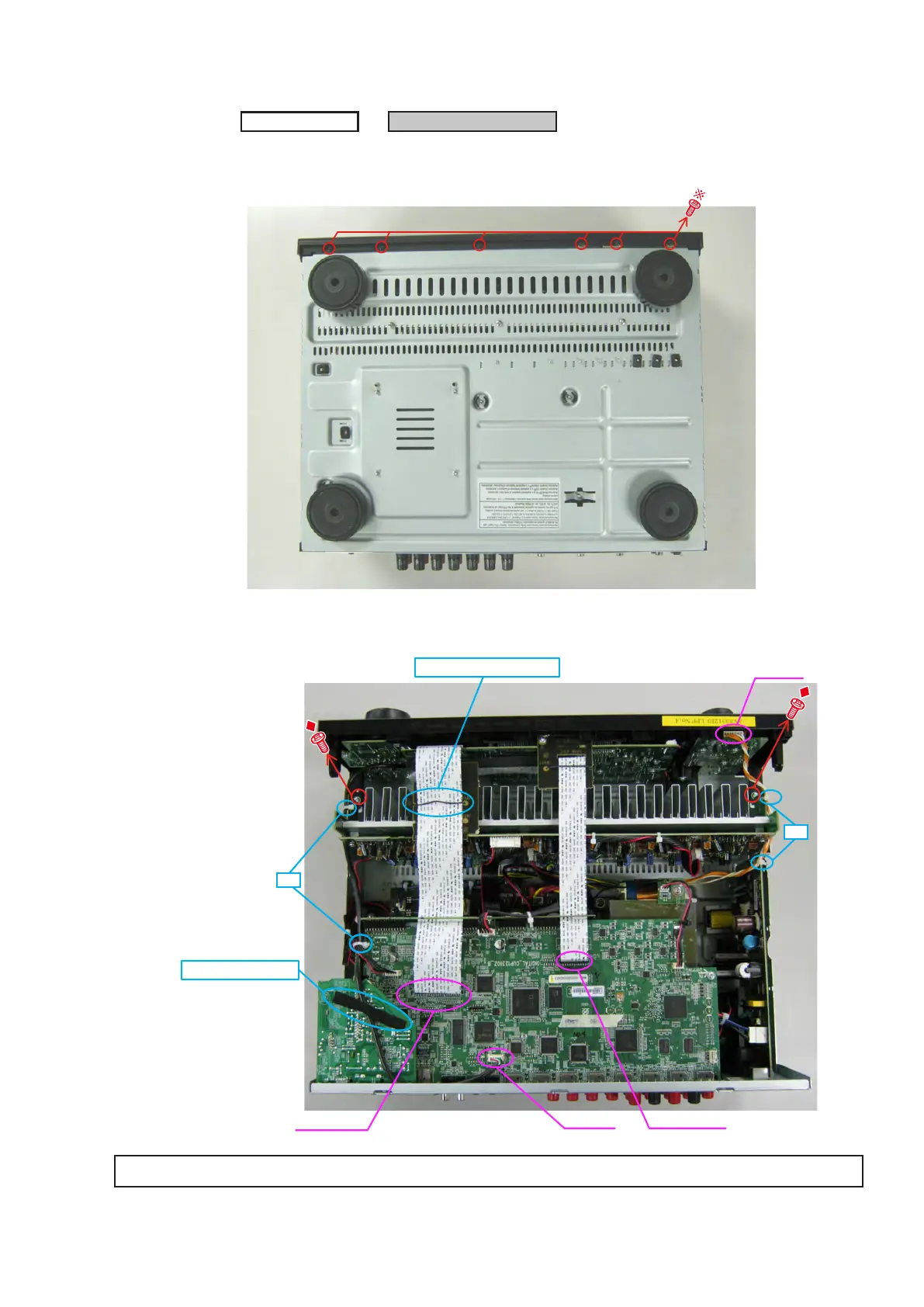

1. FRONT PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC cables. Remove the screws.
CABINET TOP
FRONT PANEL ASSY
→
Proceeding :
View from the bottom
CN390 FFC cable
CN602
FFC cable
STYLE PIN : Loosen
TAPE : Remove
cut
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.
