Denon AVR-3312

12

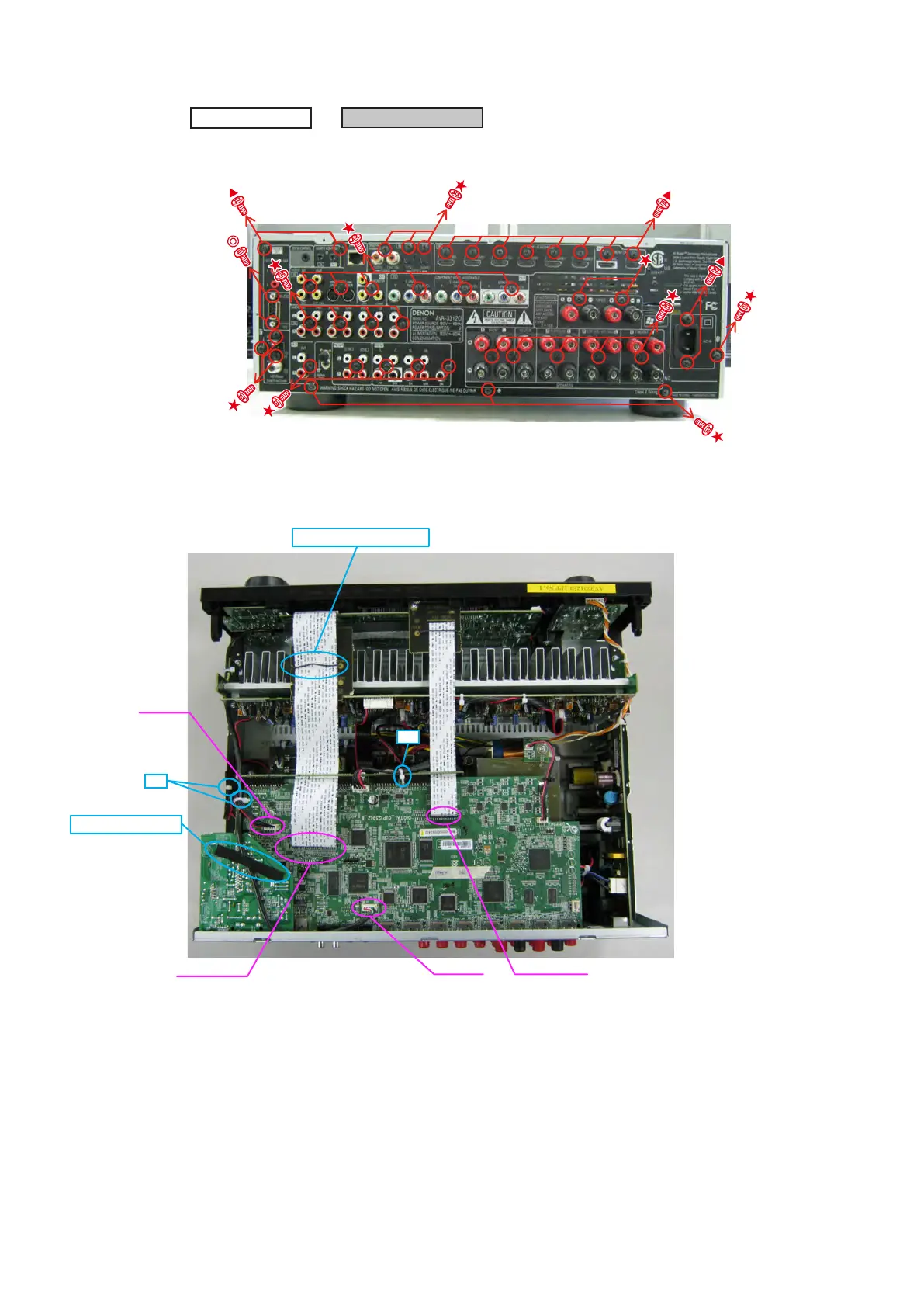

3. HDMI UNIT ASSY
(1) Remove the screws, then remove the BACK PANEL and the HDMI BRACKET.
(2) Cut the wire clamp band, then disconnect the connector wires and the FFC cables.
Remove the PCB DOCK from the PCB SIDE CNT and PCB RS232C(Board to board).
CABINET TOP
HDMI UNIT ASSY
→
Proceeding :
Shooting of photograph: A
CN390 FFC cable
FFC cable
CN704
STYLE PIN : Loosen
TAPE : Remove
cut
cut
