Denon AVR-3312

11

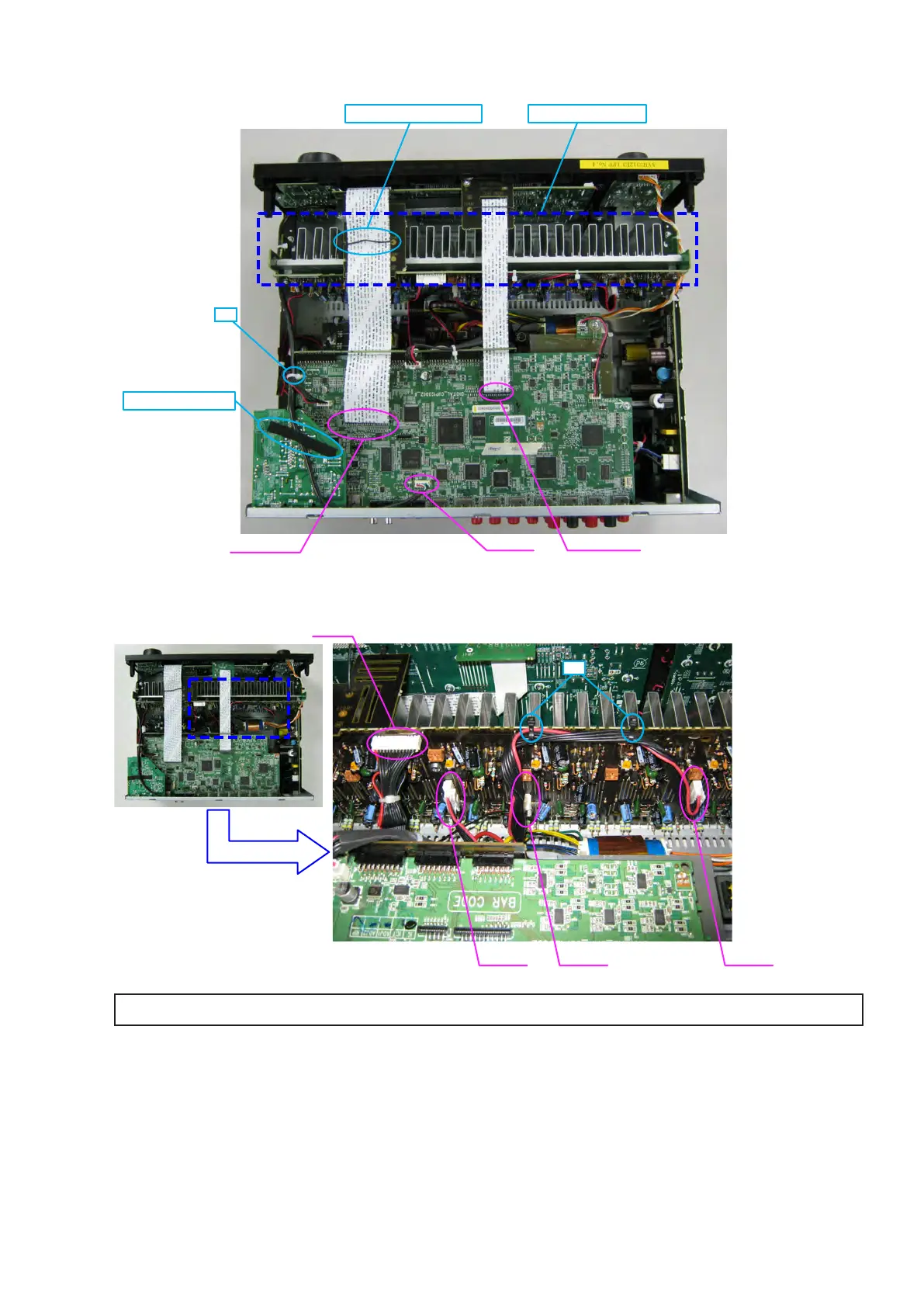

(3) Cut the wire clamp band, then disconnect the connector wire and FFC cables .
(4) Cut the wire clamp bands, then disconnect the connector wires.
CN390 FFC cable
FFC cable
STYLE PIN : Loosen HEAT SINK Assy
TAPE : Remove
cut
CN461
CN702CN703CN701
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HEAT SINK ASSY.
