Denon AVR-3803 Operating Instruction

8
ENGLISH

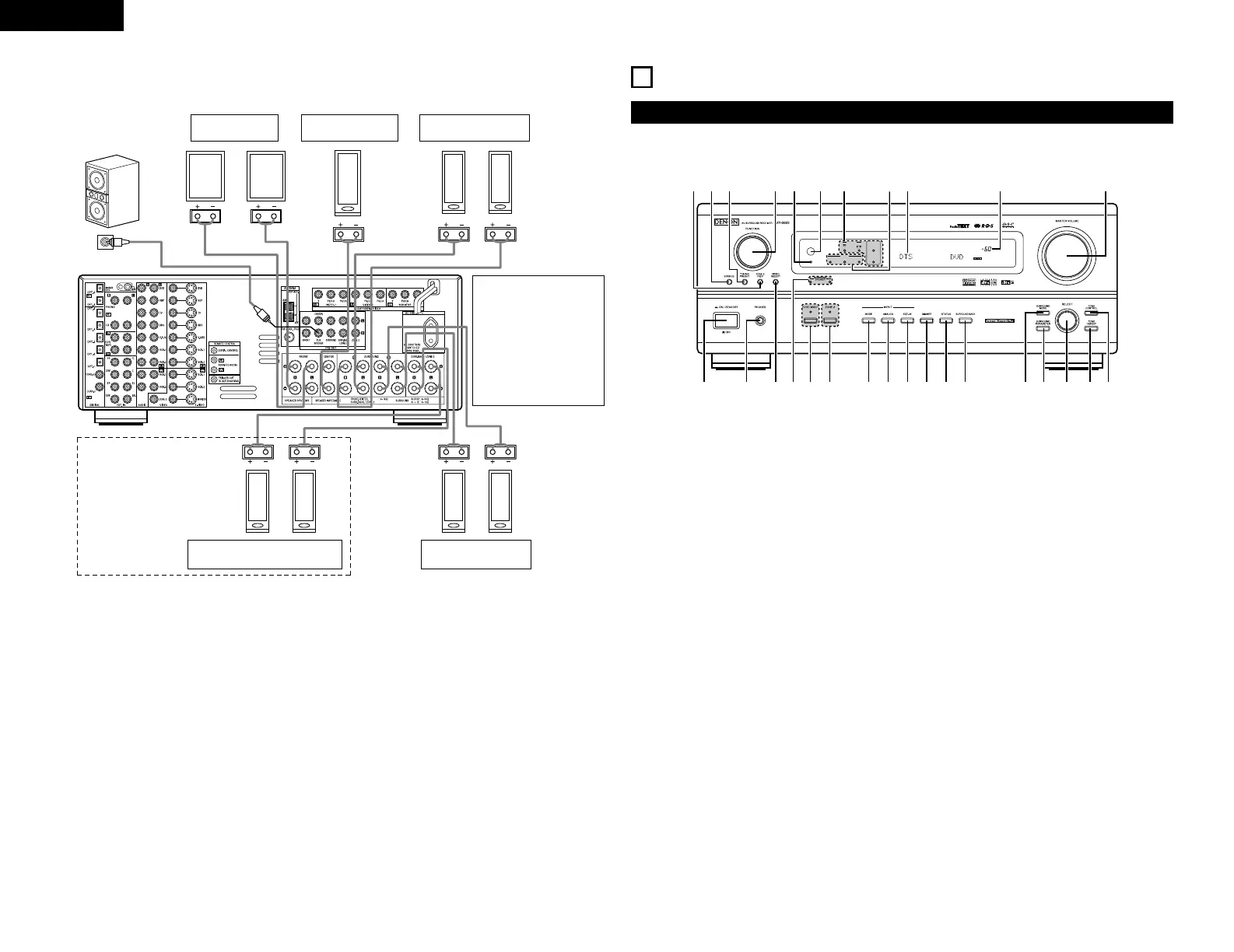

Connections
• When making connections, also refer to the operating instructions of the other components.
(
L
) (
R
)
(
L
) (
R
) (
L
) (
R
)
(
L
) (
R
)
Connection jack for
subwoofer with built-in
amplifier (super woofer),
etc.
SURROUND SPEAKER
SYSTEMS (A)
CENTER SPEAKER
SYSTEM
FRONT SPEAKER
SYSTEMS
• Precautions when
connecting speakers
If a speaker is placed near
a TV or video monitor, the
colors on the screen may
be disturbed by the
speaker’s magnetism. If
this should happen, move
the speaker away to a
position where it does not
have this effect.
SURROUND SPEAKER
SYSTEMS (B)
SURROUND BACK/ZONE 2
SPEAKER SYSTEMS
NOTES:
• To use Surround back with one
speaker, connect the speaker to
SURR. BACK L CH.
• The settings must be changed to
use this speaker for ZONE 2.
See page 15.
OUTPUT
SIGNAL
DETECT
SURROUND
BACK CH
ON / STANDBY
REMOTE
SENSOR
AUTO
PCM
DTS
SIGNAL
DIGITAL
INPUT
VOLUME LEVEL
!7
!8!9@0@1@2@3@4@5@6@7@8
q w ter y u i
o!0 !1 !2 !3 !4 !5 !6
Front Panel
6
PART NAMES AND FUNCTIONS
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
q
Power operation switch ...........................(26, 42)
w
Headphones jack (PHONES) ..........................(28)
e
VIDEO SELECT button ...................................(29)
r
Surround speaker system indicators
(SURROUND SPEAKER A/B)
t
PURE DIRECT button...............................(28, 42)
y
ZONE 2 button .........................................(30, 42)
u
MODE button...............................(26, 27, 33, 35)
i
ANALOG button .......................................(26, 27)
o
EXT. IN button ..........................................(26, 27)
!0
DIMMER button.............................................(29)
!1
STATUS button ...............................................(29)
!2
SURROUND BACK button .............................(34)
!3
SURROUND MODE button .........(27, 32~34, 36)
!4
SURROUND PARAMETER button.....(32~34, 36)
!5
SELECT knob...................(27, 28, 32~34, 36, 37)
!6
TONE DEFEAT button ....................................(28)
!7
TONE CONTROL button ..........................(28, 37)
!8
MASTER VOLUME control ............................(27)
!9
Master volume indicator (VOLUME LEVEL) ..(27)
@0
Display
@1
INPUT mode indicators ..................................(27)
@2
SIGNAL indicators ..........................................(27)
@3
Remote control sensor
(REMOTE SENSOR).......................................(19)
@4
Power indicator ..............................................(26)
@5
FUNCTION knob........(26, 29, 30, 33, 35, 39, 40)
@6
TUNING PRESET button ................................(40)
@7
SOURCE selector button ...............................(26)
@8
ZONE 2/REC button .................................(29, 30)

Denon AVR-3803 Specifications

General

Channels	7.1
Dolby Digital	Yes
DTS	Yes
Component Video Inputs	3
S-Video Inputs	7
Digital Audio Inputs	5 (3 Optical, 2 Coaxial)
Analog Audio Inputs	9
Type	AV Receiver
THD	0.05%
Input Sensitivity	200 mV
Signal to Noise Ratio	100 dB
Frequency Response	10 Hz - 100 kHz
Digital Inputs	5 (3 Optical, 2 Coaxial)
Weight	33.1 lbs
Amplifier Channels	7
Signal-to-Noise Ratio	100 dB
Surround Sound Modes	Dolby Digital, DTS, Dolby Pro Logic II
Power Output	110W per channel (8 ohms, 20Hz-20kHz, 0.05% THD)
Video Inputs	S-Video, Component
Input Sensitivity/Impedance	200 mV / 47 kOhm
Video Inputs/Outputs	S-Video, Component
Dimensions (W x H x D)	17.1 x 6.6 x 16.9 inches
