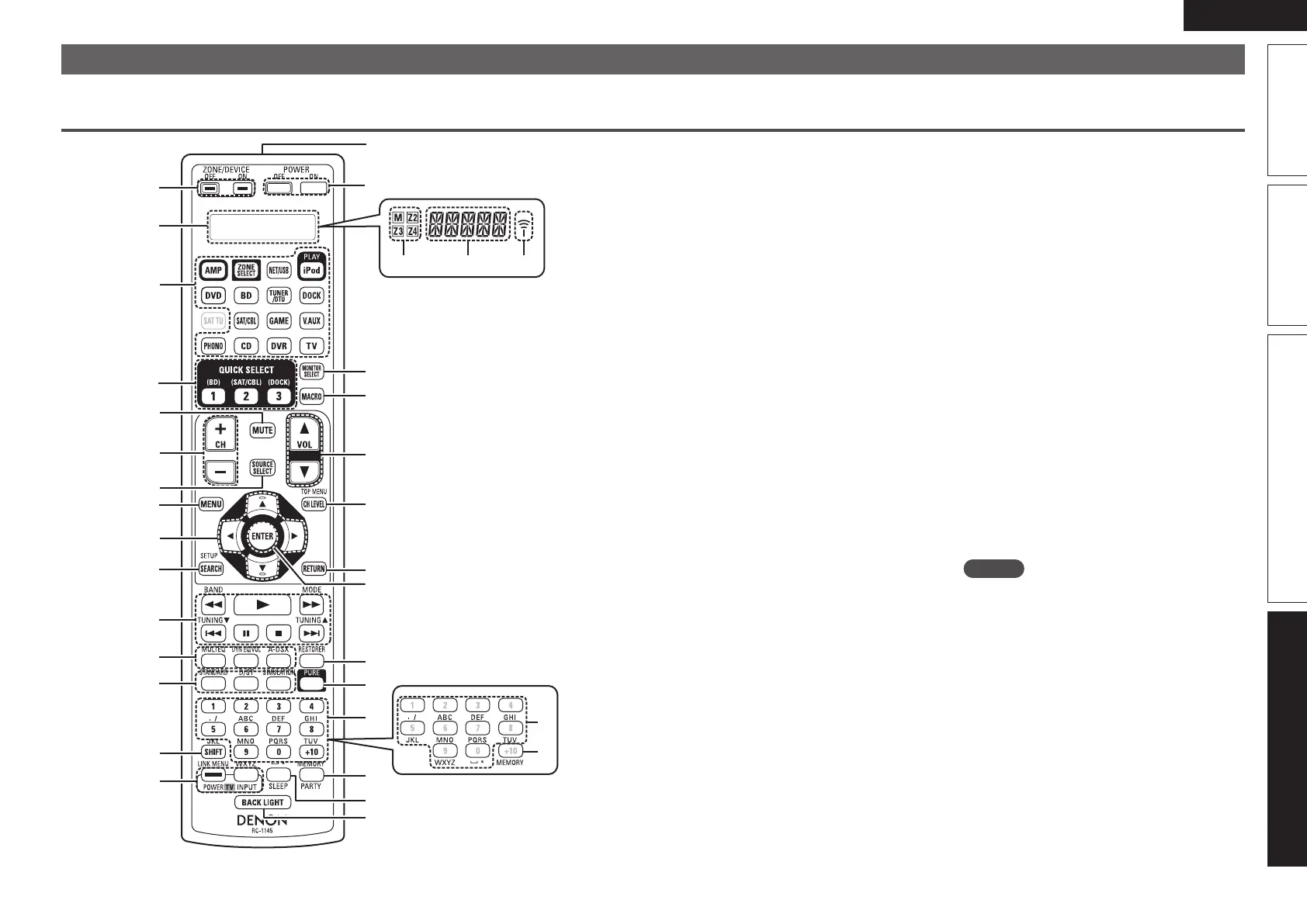

Main remote control unit (RC-1145)
q
w
e
r
t
y
u
i
o
Q0
Q1
Q2
Q3
Q4
Q5
W3
W5
W6
W2
Q9
Q8
W4
W1
W0
Q7
Q6
q w e
E0
E1
W7
W8
W9
q ZONE/DEVICE power buttons ·········· (69, 107)
w Display
q Zone select indicators ·························· (104)
w Operation mode indicator ····················· (104)
e Signal transmission indicator)
e Input source select buttons ················· (28, 69)
r QUICK SELECT buttons ······················· (63, 70)
t Muting button (MUTE) ························ (29, 69)
y Channel buttons (CH) ····· (33, 34, 37, 105, 107)
u SOURCE SELECT button ··························· (28)
i MENU button ·············································· (76)
o Cursor buttons (uio p) ·················· (73 – 76)
Q0 SEARCH button ·················· (30, 32, 34, 41, 75)
Q1 System buttons
······················· (31, 32, 38, 39, 41 – 43, 45, 107)
• Search buttons (6, 7)
• Skip buttons (8, 9)
• Play button (1)
• Pause button (3)
• Stop button (2)
Tuner system buttons ································ (35)
• FM/AM band switching button (BAND)
• Tuning mode button (MODE)
• Tuning up / Tuning down buttons
(TUNING df)
Q2 Audyssey buttons ·························· (85, 86, 96)
• MULTEQ
®
XT 32 button (MULTEQ)
• Dynamic EQ
®
/DYNAMIC VOLUME
®
button
(DYN EQ/VOL)
• Audyssey DSX™ button (A-DSX)
Q3 Surround mode buttons ···················· (46 – 48)
• STANDARD button
• Direct / Stereo button (D/ST)
• DSP simulation button (SIMULATION)
Q4 SHIFT button ··································· (33, 37, 74)
Q5 TV operation buttons
(TV POWER / INPUT) ······························ (107)
Q6 Remote control signal transmitter ········· (120)
Q7 Power buttons (POWER ON / OFF) ······ (7, 13)
Q8 Monitor select button
(MONITOR SELECT) ····························· (17, 94)
Q9 MACRO button (MACRO) ················ (109, 110)
W0 Master volume control buttons
(VOL) ······················································ (28, 69)
W1 Channel level button (CH LEVEL) ············· (62)
W2 RETURN button ·········································· (76)
W3 ENTER button ····································· (73 – 76)
W4 RESTORER button ······································ (88)
W5 Pure direct button (PURE) ························· (48)
W6 Number buttons
············································· (33, 37, 105 – 107)
W7 Character buttons ······································ (74)
W8 MEMORY button ·································· (33, 37)
W9 PARTY button ············································· (64)
E0 SLEEP button ········································ (62, 70)
E1 BACK LIGHT button
When you press this button, the backlight of the
remote control unit lights for 10 seconds.
NOTE
The SAT TU button cannot be used.
