Denon AVR-4311 User Manual

52
ENGLISH
Connect
• For the method of connecting 7.1-channel speakers, see page 5.
• For the method of connecting the TV, see page 6.
7.2- or 9.2-channnel (Surround back / Front height /
Front wide speaker) connection

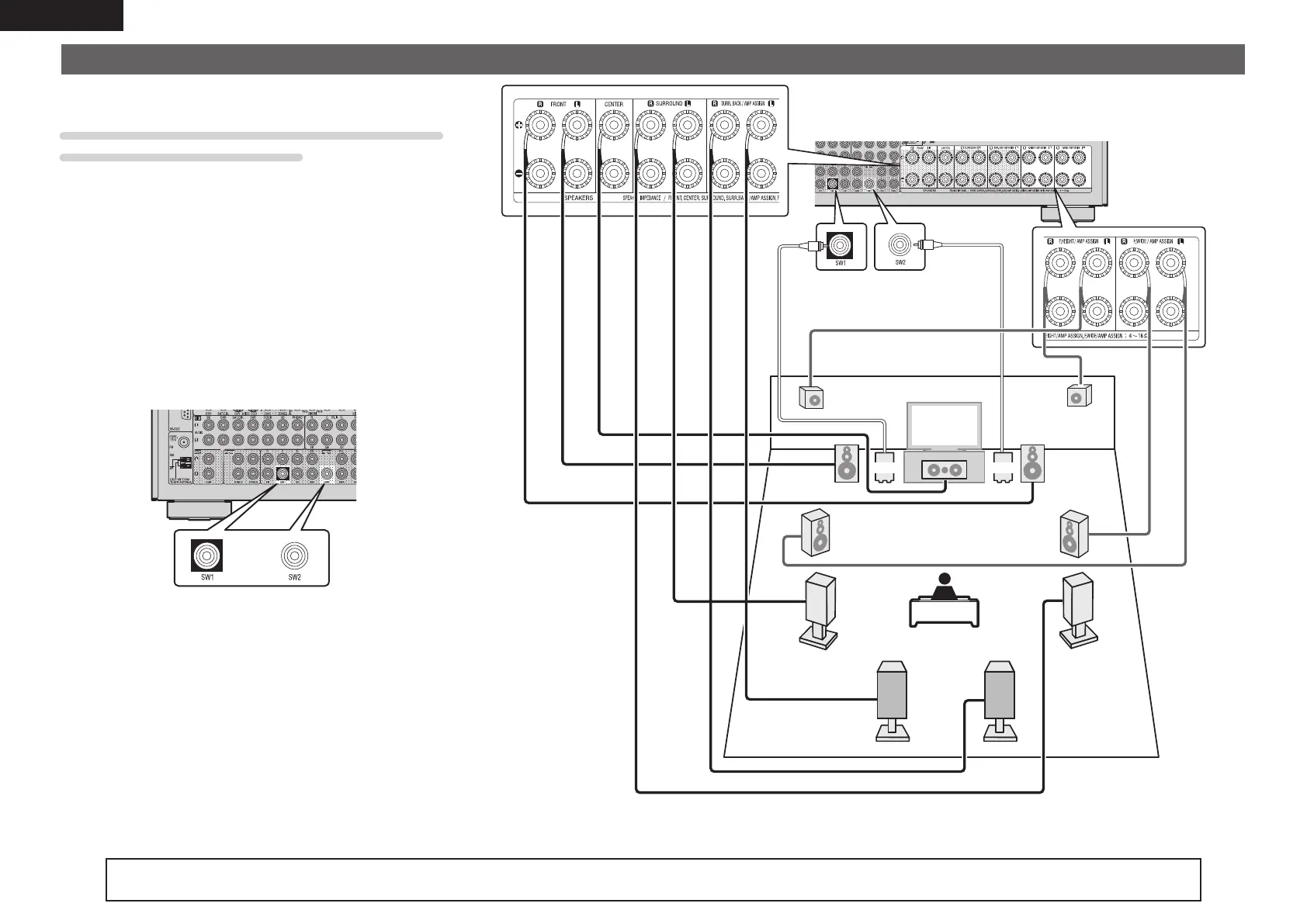

The illustration on the right shows a connection example for performing
7.2-channel or 9.2-channel playback using the surround back, front
height, or front wide speakers.
If you connect the surround back, front height, and front wide speakers
before you start playback, the audio is played back by automatically
switching the speakers in accordance with the surround mode or input
signals.
To set the speakers for automatic switching, select “Amp Assign”
and set “Assign Mode” to “NORMAL” using steps 3 and 4 of “Set up
“Amp Assign”” (vpage59).
n For connecting two subwoofers
Two subwoofers can be connected to this unit.
To use two subwoofers, set “Subwoofer” to “2 spkrs” using the
“Speaker Config.” setting (vpage91).
For speaker impedance and speaker cable connections, see page 5.
FL
FR
C
SBL SBR
SL
SR
FWR
FWL
FHR
FHL
SW1 SW2
1.AVR4311E2_ENG_6th_0810.indd 52 2010/08/12 10:11:56

Denon AVR-4311 Specifications

General

Type	AV Receiver
Number of channels	9.2
Output Power per Channel	140 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV / 47 kohms
Signal-to-Noise Ratio	102 dB
HDMI outputs	2
3D Support	Yes
Network features	AirPlay, DLNA
Audio DAC	24-bit/192kHz
Video Inputs/Outputs	Component
Audio Inputs/Outputs	Analog, Optical, Coaxial
Network Connectivity	Ethernet
Supported Audio Formats	Dolby TrueHD, DTS-HD Master Audio, FLAC, WAV, MP3, WMA, AAC
Dimensions (W x H x D)	434 x 195 x 427 mm
HDMI inputs	7 (1 on front)
