Front A/B connection
You can connect a second set of speakers to this unit and use them for playback.
To use a second set of speakers, select “Amp Assign” and set “Assign Mode” to “Front B” using steps
3 and 4 of “Set up “Amp Assign”” (vpage59).

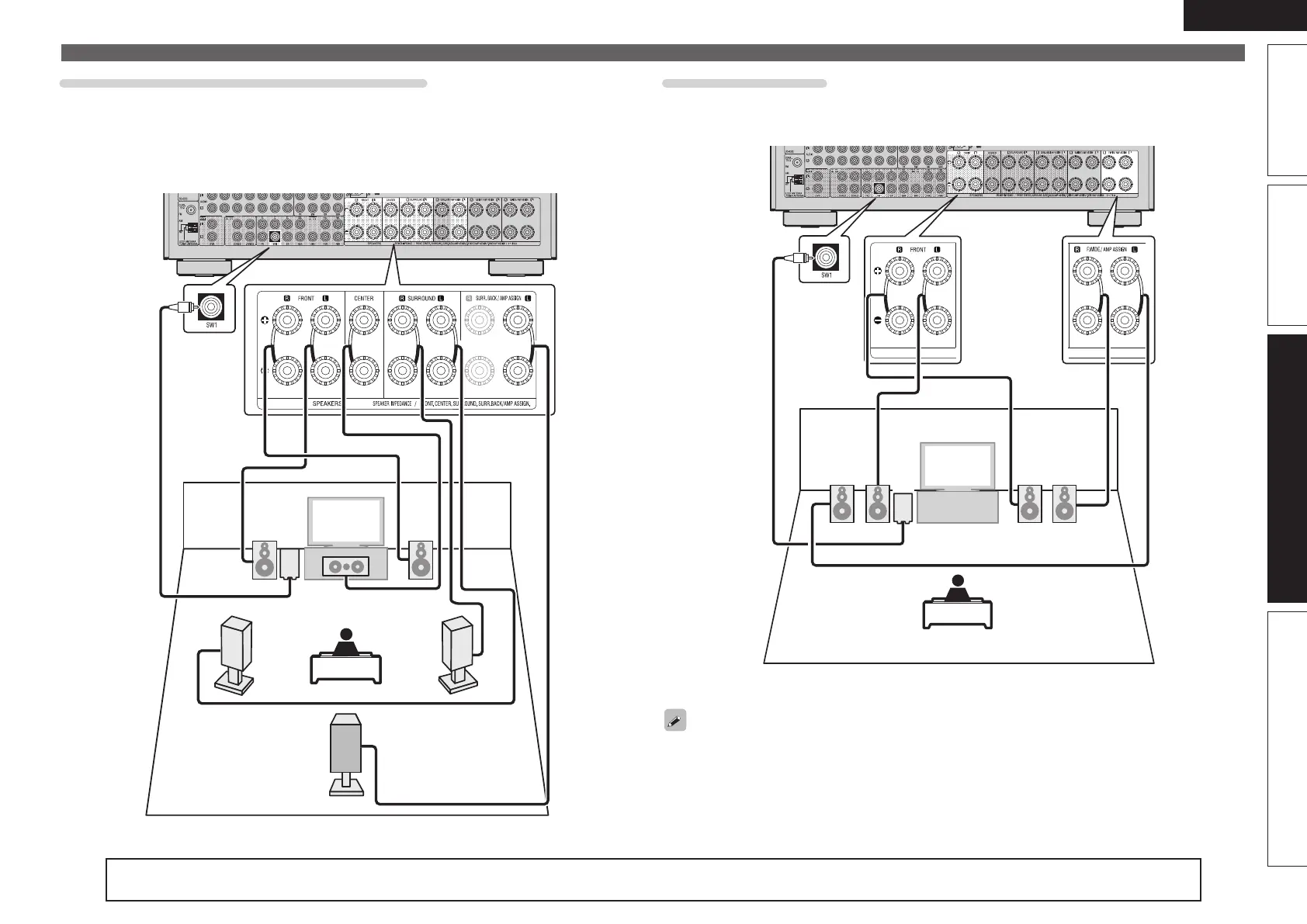

FL(A)FL(B) FR(B)FR(A)
SW
z You can also connect the Front B speakers to SURR.BACK/AMP ASSIGN or F.HEIGHT/AMP ASSIGN
speaker terminals using the “Amp Assign” and “Assign Sp.” settings (vpage91).
To perform multichannel playback, connect the center, surround, surround back, and front speakers, and
subwoofer.
Front speakers can be used separately, depending on the speaker’s specifications or playback source such
as front speakers (A) for multichannel playback and front speakers (B) for 2-channel playback (vpage94
“Front Speaker Setup”).
6.1-channel (Surround back speaker) connection
If using only one surround back speaker (with a 6.1-channel connection), connect to the “L” side of the
SURR. BACK/AMP ASSIGN terminal.
For speaker settings in this case, see “When 6.1ch (Surround back speaker) installed” (vpage51).
To perform 6.1-channel playback using the surround back speakers, select “Amp Assign” and set “Assign
Mode” to “NORMAL” using steps 3 and 4 of “Set up “Amp Assign”” (vpage59).
Also use the “Speaker Config.” setting (vpage91) to set “Surround Back” to “1 spkr”.
FL FR
C
SB
SL
SR
SW
Connect
For speaker impedance and speaker cable connections, see page 5.
