Connecting a TV
• Select the connector to use and connect the device.
• For video connections, see “Converting input video signals for output (Video conversion function)”
(vpage15).
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage16).
To listen to TV audio through this device, use the optical digital connection.
NOTE
The optical connection is not required when a TV compatible with the ARC function (Audio Return Channel
(HDMI 1.4a standard function) is connected to this unit via an HDMI connection.
For details, see “About ARC (Audio Return Channel) function” (vpage16) or refer to the instruction
manual for your TV.

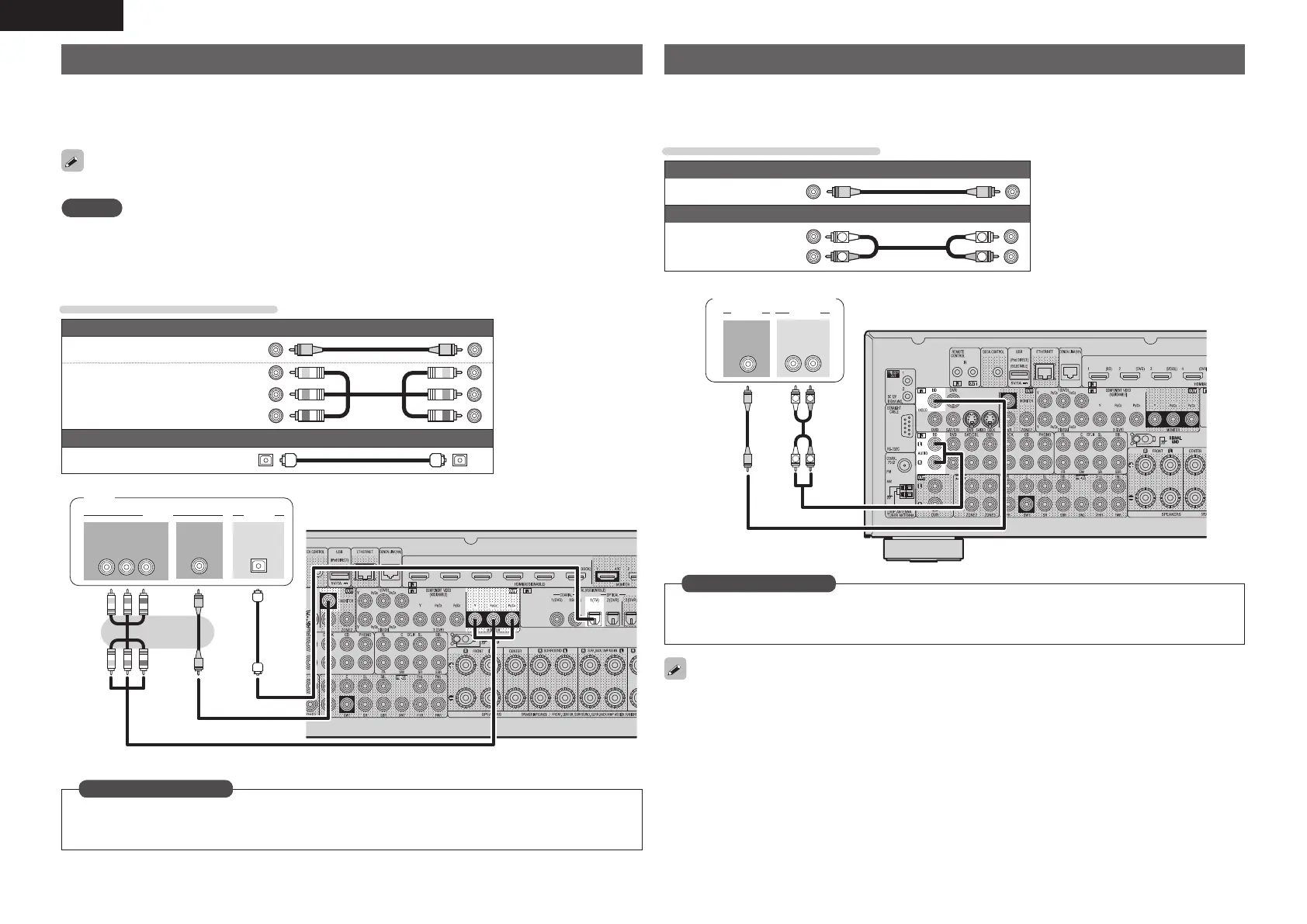

Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Component video
cable
(Green)
(Blue)
(Red)
Audio cable (sold separately)
Optical cable
IN
VIDEO
AUDIO
OPTICAL
OUT
VIDEO
COMPONENT VIDEO
Y P
B PR
IN
TV
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage77)
in Set as Necessary
Connecting a Blu-ray Disc player
• You can enjoy video and audio from a Blu-ray Disc.
• Select the connector to use and connect the device.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage16).
Cables used for connections
Video cable (sold separately)
Video cable
(Yellow)
Audio cables (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
R
L
R
L
VIDEO
AUDIO
AUDIO
RL
OUT
OUT
VIDEO
Blu-ray Disc player
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage77)
in Set as Necessary
For HD audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus and DTS Express) playback, connect with HDMI
(vpage16 “Connecting an HDMI-compatible device”).
1.AVR4311E2_ENG_6th_0810.indd 18 2010/08/12 10:11:39

Denon AVR-4311 Specifications

General

Type	AV Receiver
Number of channels	9.2
Output Power per Channel	140 W (8 ohms, 20 Hz - 20 kHz, 0.05% THD)
Frequency Response	10 Hz - 100 kHz (+1, -3 dB)
Total Harmonic Distortion	0.05%
Input Sensitivity/Impedance	200 mV / 47 kohms
Signal-to-Noise Ratio	102 dB
HDMI outputs	2
3D Support	Yes
Network features	AirPlay, DLNA
Audio DAC	24-bit/192kHz
Video Inputs/Outputs	Component
Audio Inputs/Outputs	Analog, Optical, Coaxial
Network Connectivity	Ethernet
Supported Audio Formats	Dolby TrueHD, DTS-HD Master Audio, FLAC, WAV, MP3, WMA, AAC
Dimensions (W x H x D)	434 x 195 x 427 mm
HDMI inputs	7 (1 on front)
