Connecting a external power amplifier
You can use this unit as a pre-amp by connecting a commercially
available power amp to the PRE OUT connector. Adding a power amp
to each of the channels provides an even greater sound presence.

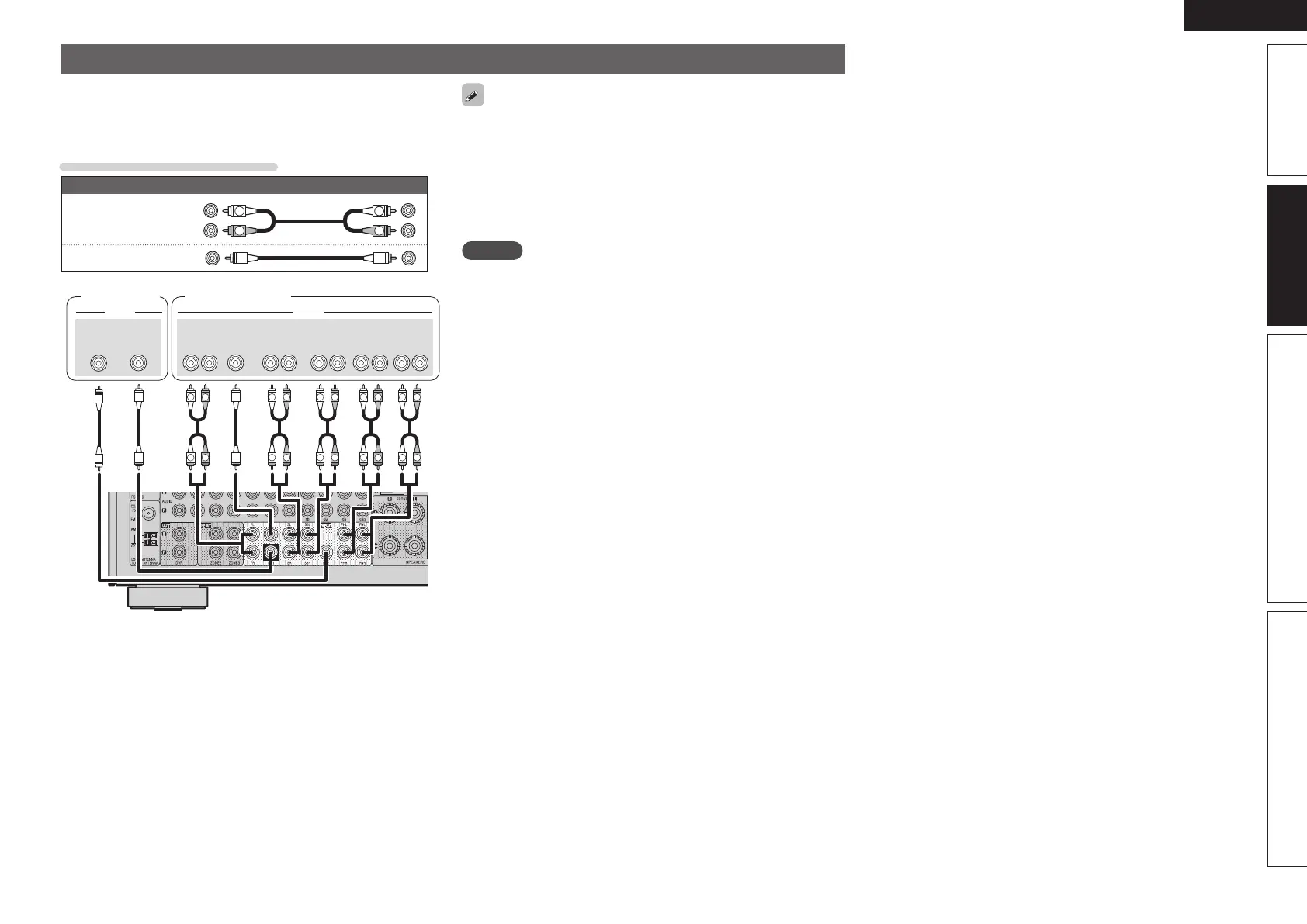

Select the terminal to use and connect the device.
Cables used for connections
Audio cable (sold separately)
Audio cable
(White)
(Red)
R
L
R
L
Audio cable
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
SUB-
WOOFER
1
SUB-
WOOFER
2
CENTER SURROUND
BACK
RL
SURROUND
RL
FRONT
HEIGHT
RL
FRONT
WIDE
RL
FRONT
RL
AUDIOAUDIO
Power amplifierSubwoofer
When using just one surround back speaker, connect it to the left
channel (L) terminal.
Use the volume control on the subwoofer to control subwoofer
volume.
If the subwoofer volume sounds low, use the volume control
provided on the subwoofer to adjust the volume.
You can use this unit as a preamplifier. For details, see “PRE AMP
mode” (vpage58).
NOTE
When external power amplifier have been connected to PRE OUT
terminals, do not connect the speakers to the speaker terminals.
