Denon AVR-4311 User Manual

5
Basic version Advanced version Information
ENGLISH
Simple version
Speakers
Carefully check the left (L) and right (R)
channels and + (red) and – (black) polarities
on the speakers being connected to the
this unit, and be sure to interconnect the
channels and polarities correctly.
Connecting the speaker cables
Peel off about 10 mm of sheathing from the tip
of the speaker cable, then either twist the core
wire tightly or terminate it.
NOTE
• Connect so that the speaker cable core wires
do not protrude from the speaker terminal.
The protection circuit may be activated if
the core wires touch the rear panel or if the
+ and – sides touch each other (vpage130
“Protection Circuit”).
• Never touch the speaker terminals while the
power supply is connected. Doing so could
result in electric shock.
• Use speakers with the speaker impedances
shown below.
Speaker terminals
Speaker
impedance
FRONT
4 – 16 Ω
CENTER
SURROUND
SURR. BACK / AMP ASSIGN
F.HEIGHT / AMP ASSIGN
F.WIDE / AMP ASSIGN
Use speakers where one speaker has an
impedance of 4 to 16 Ω.
When using a speaker with impedance of
4 Ω or 6 Ω, make sure to set the “Speaker
Impedance” in the menu (vpage94) to “6 Ω/
ohms” or “4 Ω/ohms”.

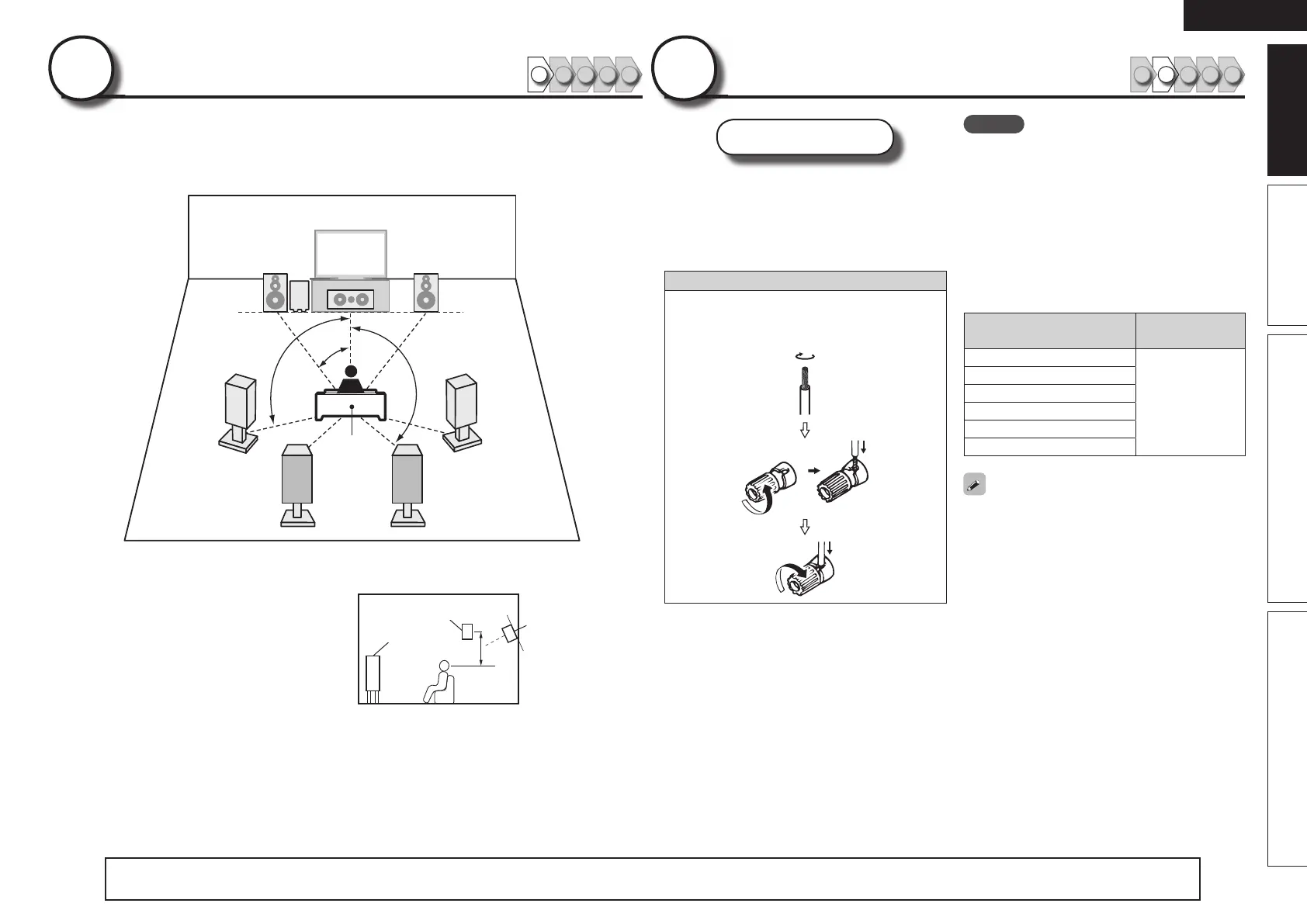

Install
1 2 3 4 5
This unit can perform 2.0 to 11.2-channel surround playback.
This page provides the speaker installation procedure for the
7.1-channel playback using surround back speakers as an example.
FL FR
C
SBL SBR
SL
SR
SW
90 – 110˚
22 – 30˚
135 – 150˚
Listening
position
FL Front speaker (L) • Install the surround speakers in a position 60
to 90 cm higher than ear level.
Surround back
speaker
• Point slightly
downwards
Front
speaker
Surround
speaker
60 – 90 cm
GViewed from the sideH
FR Front speaker (R)
C Center speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
SBL Surround back speaker (L)
SBR Surround back speaker (R)
1
Connect
1 2 3 4 5
2
The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.
For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 50 .
1.AVR4311E2_ENG_6th_0810.indd 5 2010/08/12 10:11:33
