Speaker connection
FL
FR
C
SL
SR
SW
FWR
FWL
FHRFHL
SBL SBR
AUX IN
R
L
R
L
Power amplifier

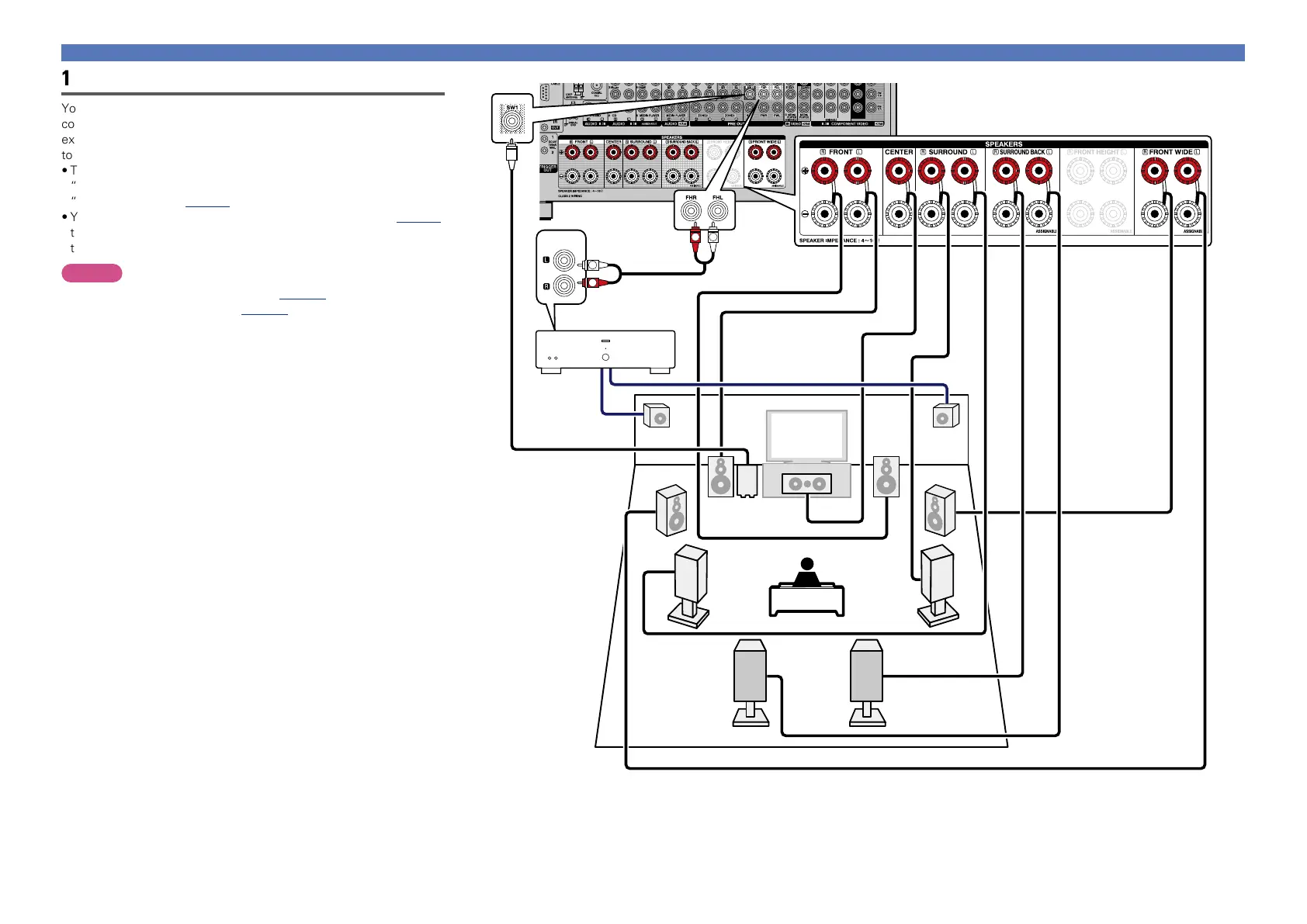

11.1-channel connection
You can perform playback using up to 11.1 channels using a
combination of the built-in power amplifier for 9-channel and an
external power amplifier for 2-channel. Connect the external amplifier
to the PRE OUT connector.
•To perform 11.1-channel playback, select “Amp Assign” and set
“Assign Mode” to “Discrete 11.1ch” using steps 3 and 5 of “Set up
“Amp Assign”” (vpage99).
•You can also follow step 7 in “Set up “Amp Assign”” (vpage99)
to change the PRE OUT connector connected to the power amplifier
to the front channel.
NOTE
•For speaker cable connections, see page93.
•For speaker impedance , see page93.
