Speaker connection
FL
FR
C
SBL SBR
SL
SR
FWR
FWL
FHR
FHL
SW
Power amplifier

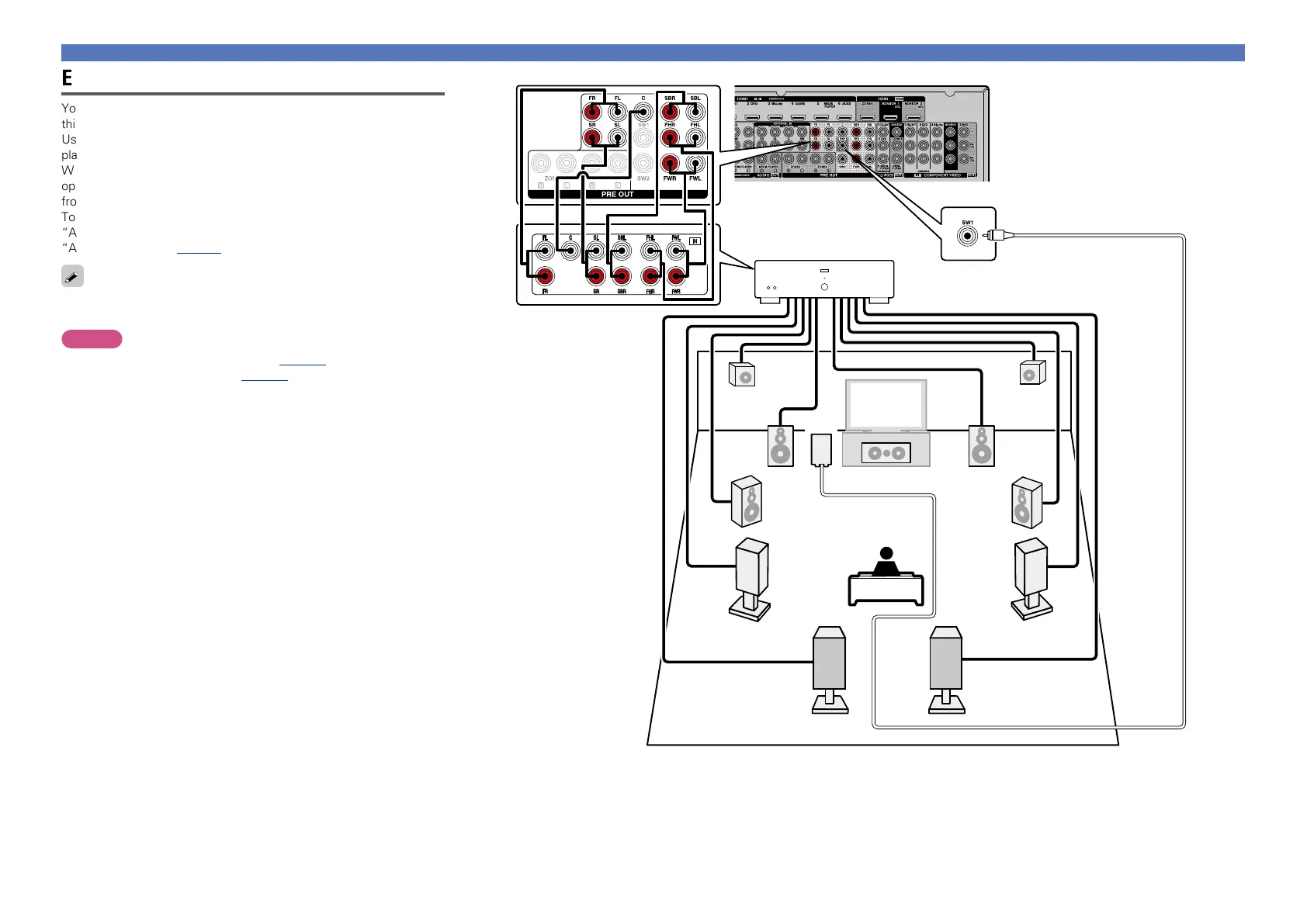

External power amplifier connection
You can connect all speakers to an external power amplifier and use
this unit as a preamplifier.
Using this unit as a preamplifier, you can perform up to 11.1-channel
playback.
When the preamplifier mode is used, the built-in power amplifier
operation of this unit is stopped, and interference to the preamplifier
from the power amplifier can be reduced.
To use this unit as a preamplifier, select “Amp Assign” and set
“Assign Mode” to “Pre Amplifier” using steps 3 and 5 of “Set up
“Amp Assign”” (vpage99).
For connecting power amplifier and speaker systems, refer to the
instruction manual supplied with the power amplifier to be used.
NOTE
•For speaker cable connections, see page93.
•For speaker impedance , see page93.
