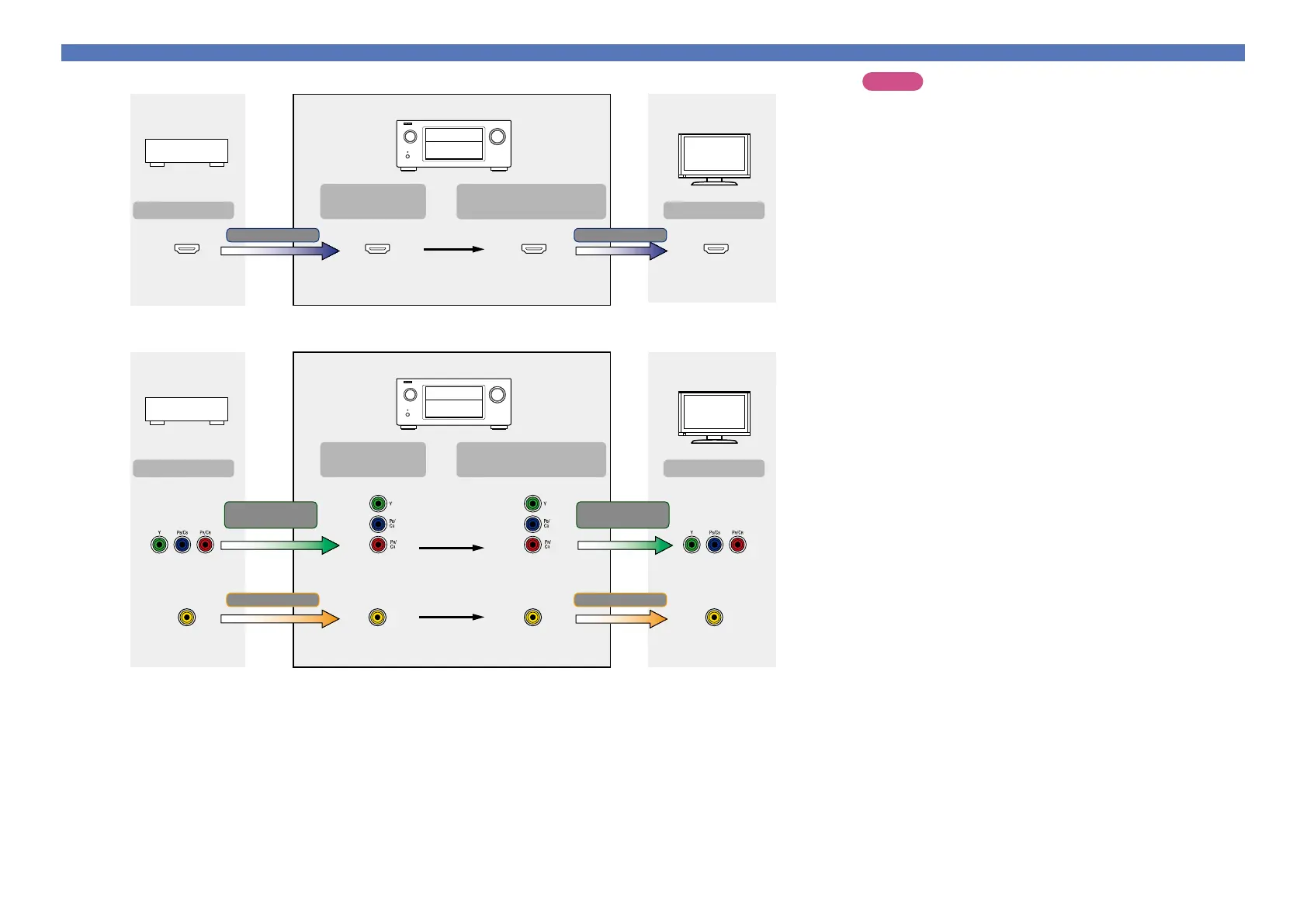

GFlow of video signals for ZONE4H
HDMI connector
HDMI signal HDMI signal
HDMI-compatible TV
HDMI connector HDMI connectorHDMI connector
Video device
This unit
Output
Input
(IN)
Output
(ZONE4 MONITOR OUT)
Input
GFlow of video signals for ZONE2H
Component video
signal
Component video
signal
Video signal Video signal
Video connector
HDMI-incompatible
TV
Component video
connectors
Component video
connectors
Component video
connectors
Component video
connectors
Video connector Video connector Video connector
Video device
This unit
Output
Input
(IN)
Output
(ZONE2 MONITOR OUT)
Input
NOTE
•HDMI signals are digital. HDMI signals cannot be converted into
analog signals.
•The HDMI ZONE4 function is only compatible with the HDMI 1 – 6
IN connectors. It is not compatible with the HDMI 7 IN connector.
