19
Connecting an HDMI-incompatible device

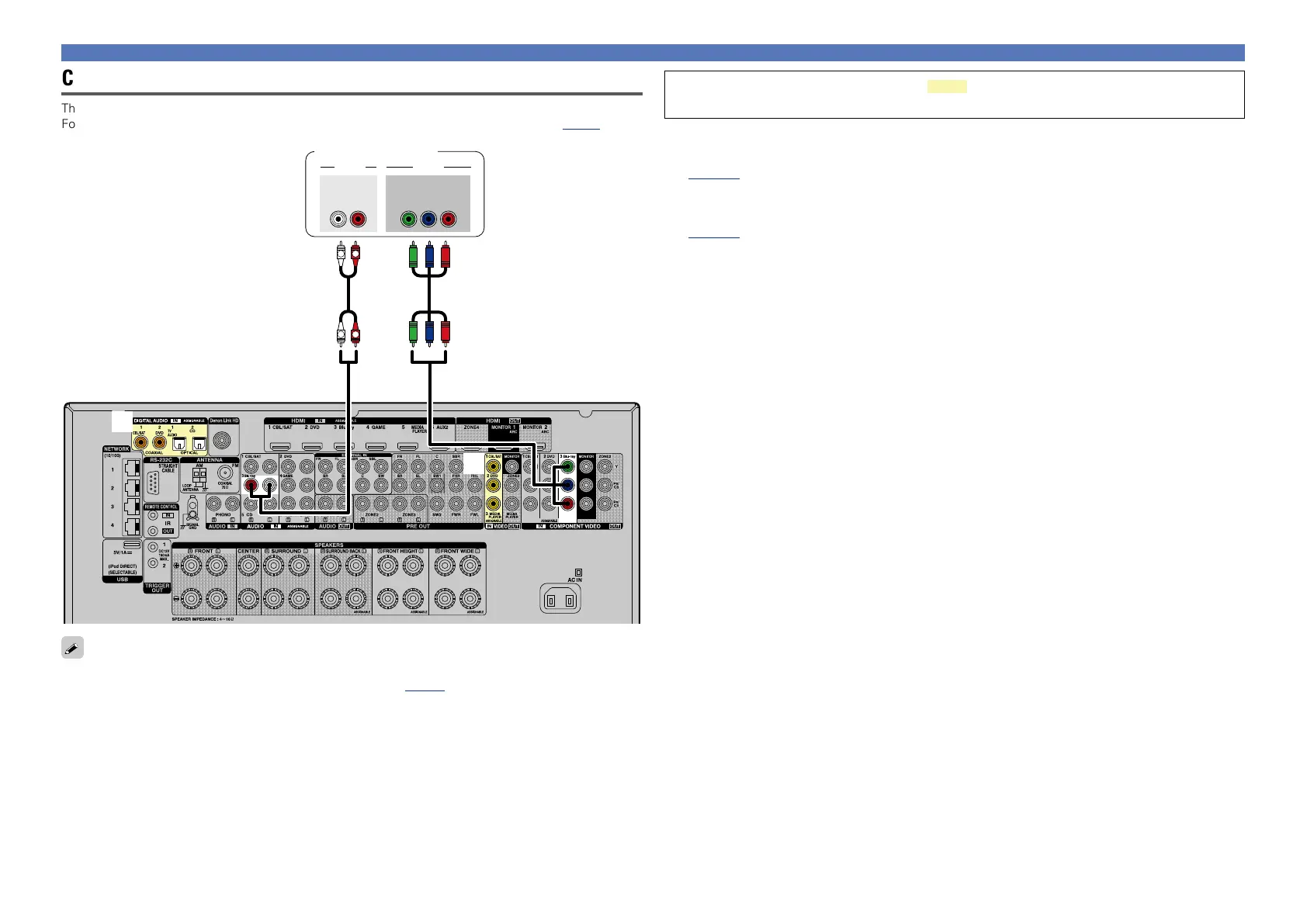

Connecting a Blu-ray Disc player
This section describes how to connect when your Blu-ray disc player does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage9).
a
s
R
L
R
L
VIDEOAUDIO
AUDIO
RL
OUT
COMPONENT VIDEO
Y P
B PR
OUT
Blu-ray Disc player
When you want to play back HD Audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus, DTS Express) and Multi-
channel PCM with this unit, use an HDMI connection (vpage 9 “Connecting an HDMI-compatible
device”).
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “Blu-ray” in “Input Assign” – “DIGITAL”
(vpage136).
To make connections for connectors indicated by s
Assign a connector to which a video cable is inserted to “Blu-ray” in “Input Assign” – “VIDEO”
(vpage136).
