Connecting a Video Component Equipped with Color Difference (Component - Y, P
B
/C
B
, P
R
/C
R
)
Video Jacks (DVD Player)
• When making connections, also refer to the operating instructions of the other components.
• The signals input to the color difference (component) video jacks are not output from the VIDEO output jack (yellow) or the S-Video output jack.
In addition, the video signals input to the VIDEO input (yellow) and S-Video input jacks are not output to the color difference (component) video
jacks.
• The AVR-4802’s on-screen display signals are not output from the color difference (component) video output jacks (MONITOR OUT).
• Some video sources with component video outputs are labeled Y, Pb, Pr, or Y, Cb, Cr, or Y, R-Y, B-Y. These terms all refer to component video
color difference output.
DVD player
Monitor TV

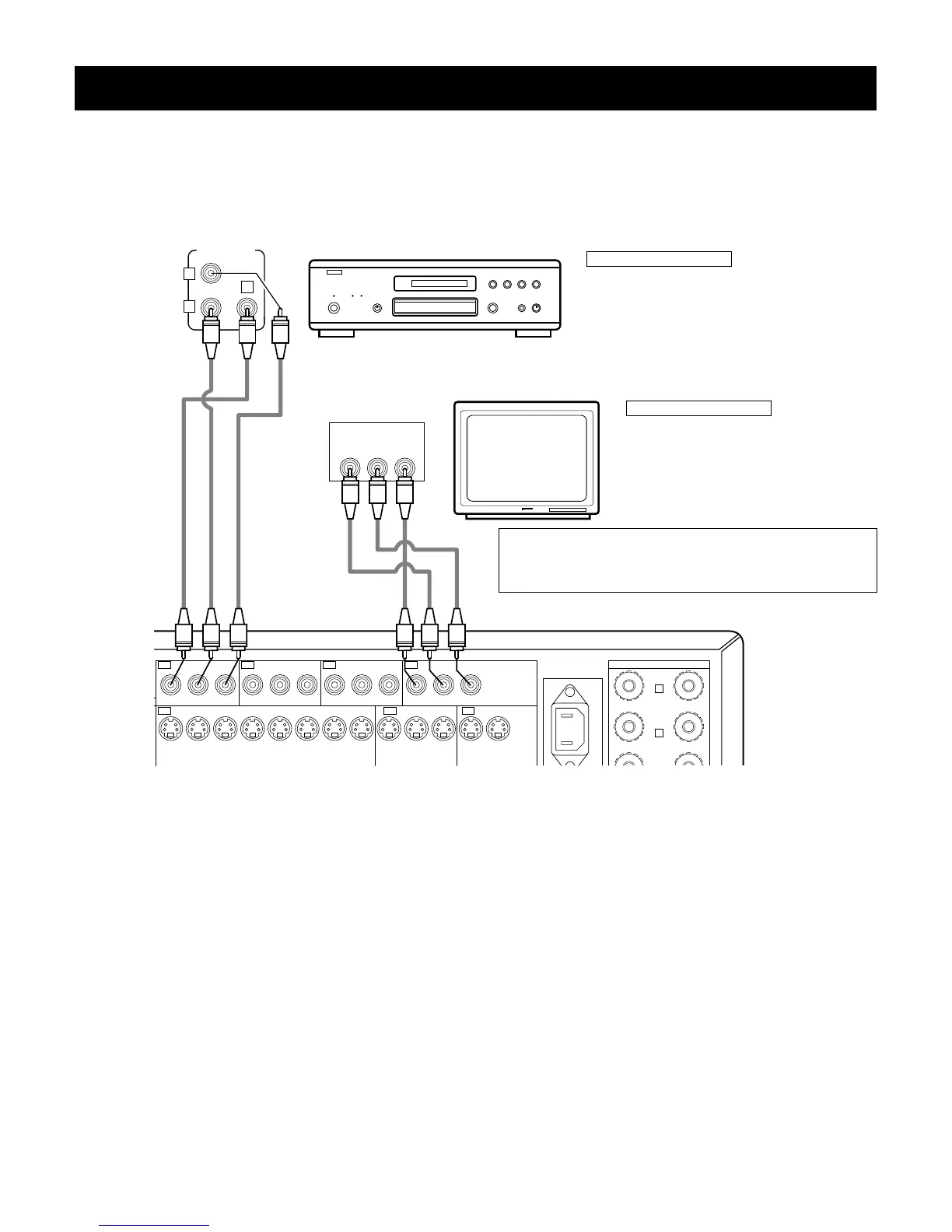

Connecting a DVD player
Connecting a monitor TV
DVD IN jacks
• Connect the DVD player’s color difference
(component) video output jacks (COMPONENT VIDEO
OUTPUT) to the COMPONENT DVD IN jack using 75 Ω/
ohms coaxial video pin-plug cords.
• In the same way, another video source with component
video outputs such as a TV, DBS/SAT tuner, etc., can be
connected to the TV, DBS/SAT color difference
(component) video jacks.
MONITOR OUT jack
• Connect the TV’s color difference (component)
video input jacks (COMPONENT VIDEO INPUT)
to the COMPONENT MONITOR OUT jack using
75 Ω/ohms coaxial video pin-plug cords.
• The color difference input jacks may be indicated differently on some TVs,
monitors or video components (“Pr, Pb and Y”, “R-Y, B-Y and Y”, “Cr, Cb and
Y”, etc.). For details, carefully read the operating instructions included with
the TV or other component.
