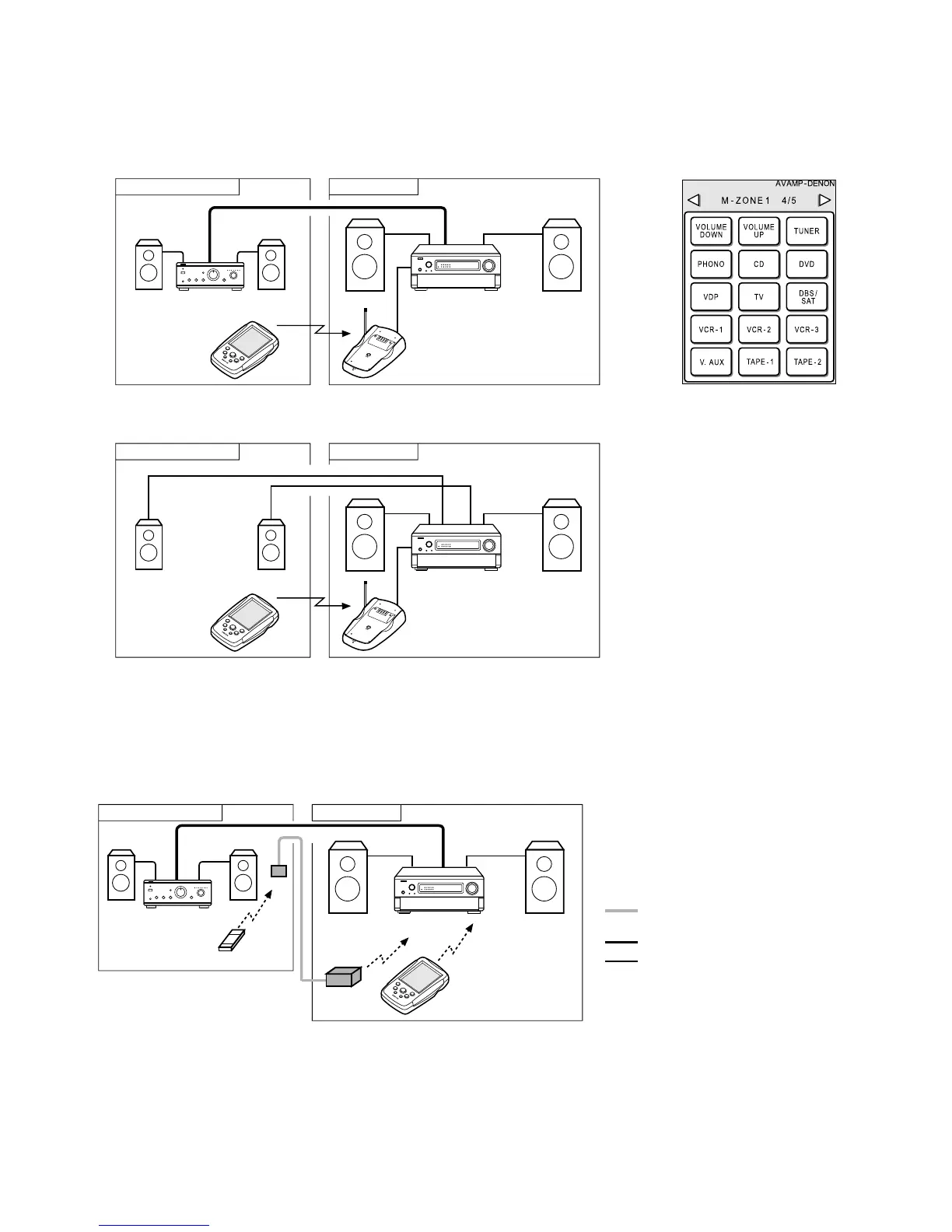

RC-8001ST
AVR-4802INTEGRATED
AMPLIFIER
RC-8000
ANOTHER ROOM MAIN ROOM
B
w When the MULTI ZONE terminal output is set to “Fixed (-40dB, 0dB)”.
The AVR-4802 is equipped with audio pre output terminals with a fixed output level (M-ZONE 1) as the MULTI ZONE output terminals.
Settings can be made at the system setup menu so that the same source as the M-ZONE 1 pre-out terminals can be played from the
speakers connected to the M-ZONE 1 speaker terminals.
2 When using the PRE OUT (MULTI ZONE) terminals
2 When using the SB/MULTI speaker terminals
RC-8001ST
AVR-4802
RC-8000
ANOTHER ROOM MAIN ROOM
NOTE:
When the main unit is set to the recording output mode, the M-ZONE 1 remote control unit key cannot be operated. (See page 36.)
[2] When using a separately sold room-to-room remote control unit (RC-616, 617 or 618)
When the main room and another room are far apart and operation is not possible with RF transmission, operation is possible using a
separately sold room-to-room remote control unit (RC-616, 617 or 618).
For details, refer to the operating instructions of the RC-616, 617 or 618.
RC-617
RC-616
MAIN ROOMANOTHER ROOM
AVR-4802
INTEGRATED
AMPLIFIER
B
REMOTE
CONTROL UNIT
REMOTE
CONTROL UNIT
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE AUDIO signal cable
SPEAKER cable
* Refer to CONNECTIONS on pages 6 to 13.
Room to Room Remote Control jacks
• The OUT jack is an extension jack for future use.
• When the OUT jack is connected, the signals input to the IN jack are output from the OUT jack directly. (Example: RC616 signals are output.)
• Do not connect only the OUT jack.
(The signals from the AVR-4802’s remote sensor are not output to this jack.)
To Next Page
