Connecting a video component equipped with S-Video jacks
• When making connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and pin jack inputs work in conjunction with each other.
• Precaution when using S-jacks
This unit’s S-jacks (input and output) and video pin jacks (input and output) have independent circuit structures, so that video signals input from
the S-jacks are only output from the S-jack outputs and video signals input from the pin jacks are only output from the pin jack outputs.
When connecting this unit with equipment that is equipped with S-jacks, keep the above point in mind and make connections according to the
equipment’s instruction manuals.

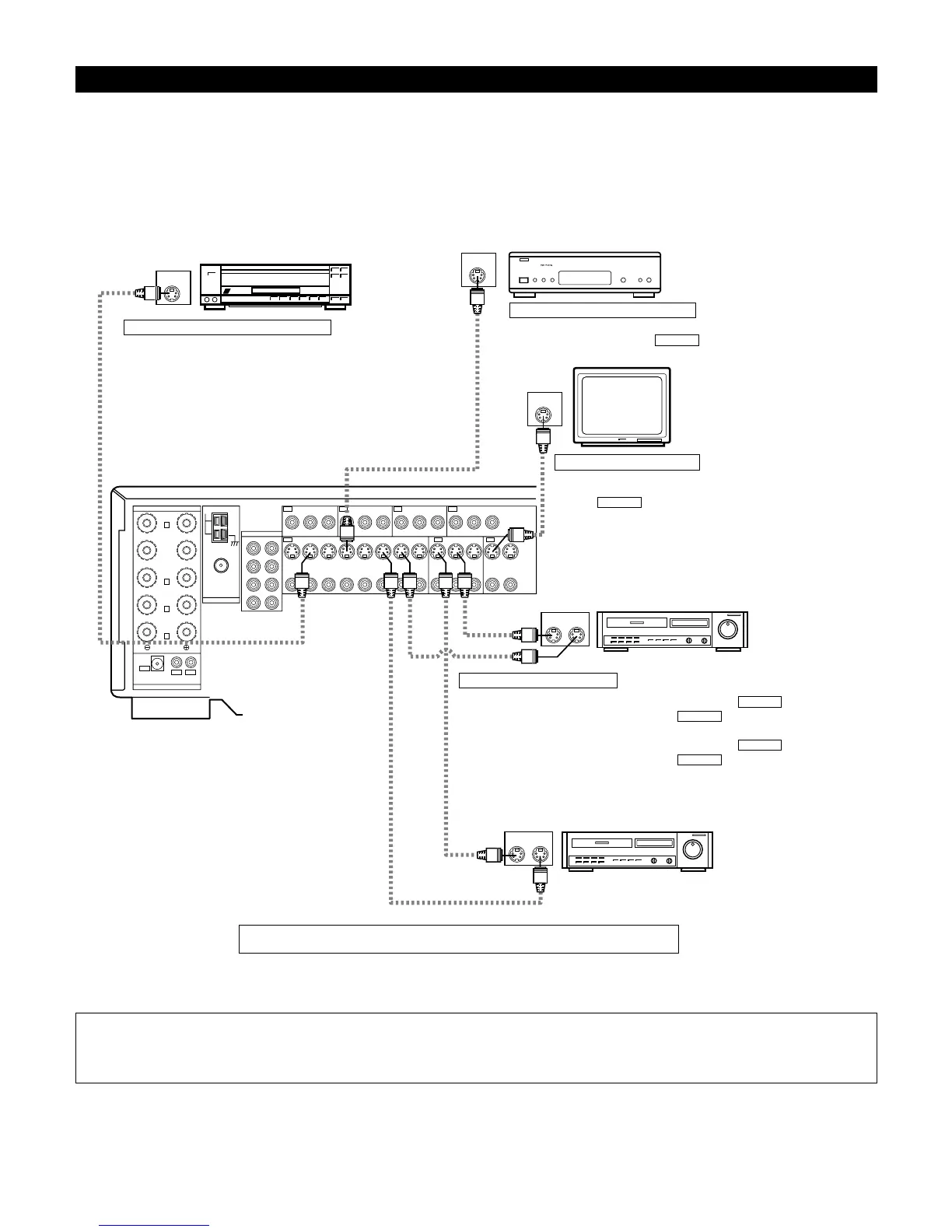

LD player, CDV player, etc.
Monitor TV
Video deck 2
Video deck 1
TV or satellite broadcast tuner
Connecting a video disc player (VDP)
Connecting a monitor TV
Connecting the video decks
Connecting a TV, DBS/SAT tuner
VDP
• Connect the video disc player’s S-Video output jack to the
S-VIDEO VDP IN jack using an S-Video connection cord.
• A DVD player can be connected to the DVD jacks in the same
way.
• It is also possible to connect a video disc player, DVD player,
video camcorder, game machine, etc., to the V.AUX jacks.
MONITOR OUT
• Connect the TV’s or DBS tuner’s S video input (S-VIDEO INPUT)
to the MONITOR OUT-1 jack using a S jack connection
cord.
• The monitor TV can also be connected in the same way to the S-
VIDEO MONITOR OUT-2 jack. Note, however, that the AVR-
4802’s on-screen display signals are not output from this jack.
S-VIDEO
• Connect the TV’s or DBS tuner’s S video output jack
(S-VIDEO OUTPUT) to the TV, DBS/SAT
IN jack using an S jack connection cord.
S-VIDEO
• Connect the video deck’s S output jack (S-OUT) to the VCR-1 IN jack and
the video deck’s S input jack (S-IN) to the VCR-1 OUT jack using S jack
connection cords.
• Connect the video deck’s S output jack (S-OUT) to the VCR-2 IN jack and
the video deck’s S input jack (S-IN) to the VCR-2 OUT jack using S jack
connection cords.
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO
Connect the components’ audio inputs and outputs as described on page 7.
NOTES:
• The on-screen display signals are not output from the video signal MONITOR OUT-2 (yellow) or S-Video signal MONITOR OUT-2 jack.
• The MONITOR OUT-2 output switches together with the input function selected with the REC/MULTI button. To use as the monitor output,
set “SOURCE” as the REC/MULTI input function.
