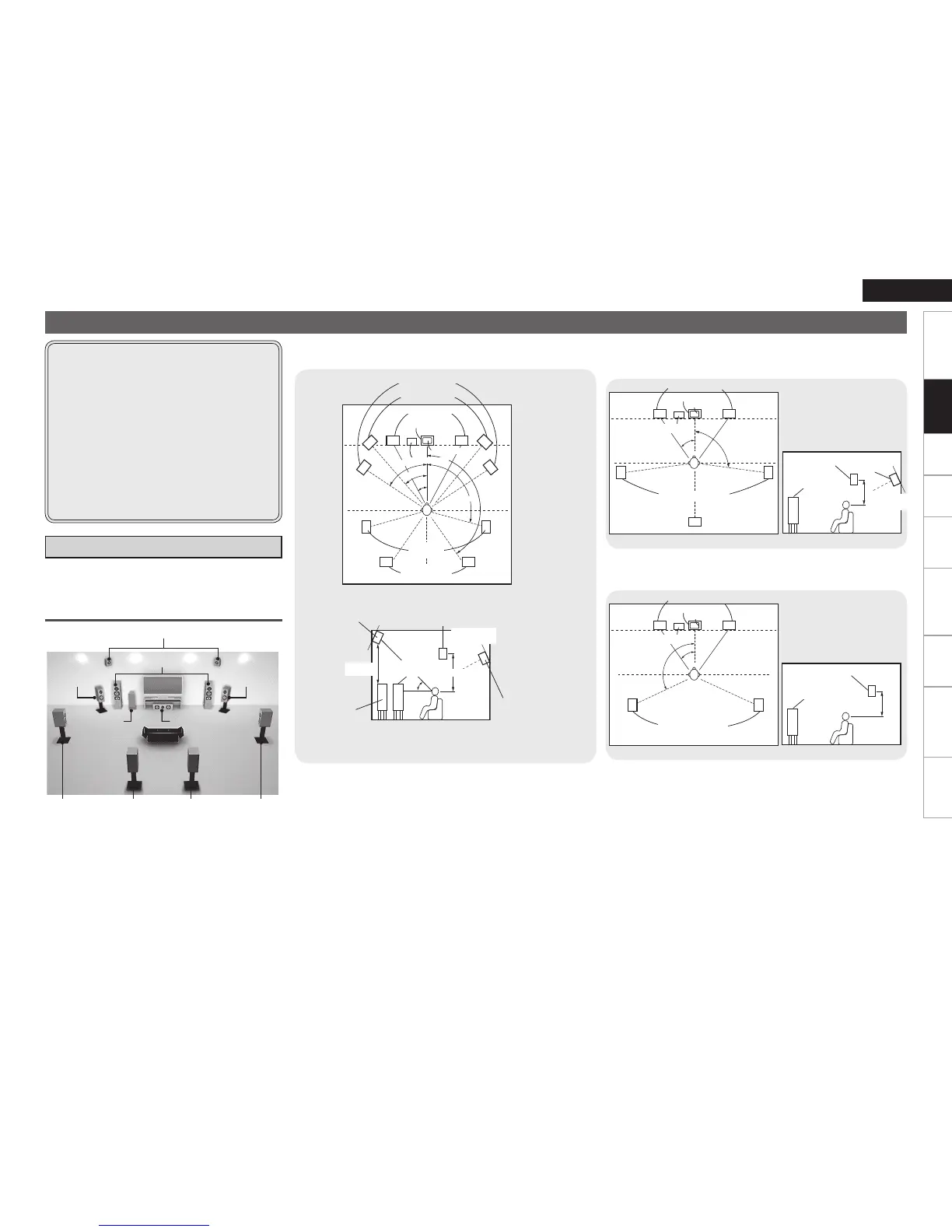

Installing the Speakers
The AVR-4810 supports up to 11.1-channel surround
sound playback by adding front height and front wide
channels to the 7.1-channel (Front/Center/Surround/
Surround Back/Subwoofer).
Installing front height and front wide speakers offers
an even wider and deeper sensation compared with
traditional surround spacing thanks to the advanced
simulation surround technology Audyssey DSX and
Dolby Pro Logic gz decoder.
To use Audyssey DSX, install front wide or front height
speakers. (Refer to page 111 for more information on
Audyssey DSX)
To use Dolby Pro Logic gz, install front height speakers.
(Refer to page 110 for more information on Dolby Pro
Logic gz)
a Speaker Layout
Below we introduce examples of speaker layouts. Refer to
these to arrange your speakers according to their type and
how you want to use them.
Installing All the Speakers
Surround back speakers
Center speaker
Front speakers
Subwoofer
Front height speakers
Surround
speaker
Surround
speaker
Front wide
speakers
Front wide
speakers
z6
z1
z
2
z
3
z
5
z1
z4
Subwoofer
Monitor
Surround
speakers
Center speaker
G
As seen from above
H
Front wide speakers
z1: 22 ~ 30˚
z2: 22 ~ 45˚
z3: 55 ~ 60˚
z4: 90 ~ 110˚
z5: 135 ~ 150˚
z6: 45˚ (b2)
Front speaker
Front wide
speaker
Surround
speaker
60 to 90 cm
G
As seen from the side
H
Installing the speakers
The illustration below shows the recommended speaker layout.
n
Surround back
speakers
Front height speakers
Front height
speaker
Point slightly
downwards
Point slightly
downwards
b1 : Recommendation for Dolby Pro Logic gz
b2 : Recommendation for Audussey DSX
z
1
z2
Front speakers
G
As seen from above
H G
As seen from the side
H
Monitor
Center speaker
z1: 22 ~ 30˚
z2: 90˚ ~ 110˚
Subwoofer
Surround speakers
Surround back
speaker
Front
speaker
Surround
speaker
Surround back
speaker
Point slightly
downwards
60 to 90 cm
When only one surround back speaker is being used
Use the layout shown in the illustration below for the surround back
speaker.
n
z
1
z
2
Surround speakers
Front speakers
Monitor
Center speaker
Subwoofer
z1: 22 ~ 30˚
z2: 120˚
Front
speaker
Surround
speaker
60 to 90 cm
G
As seen from above
H G
As seen from the side
H
When no surround back speaker is being used
Use the layout shown in the illustration below for the surround speaker.
n
At least
Front speakers
Surround back
speaker
1 m
