Multi-zone

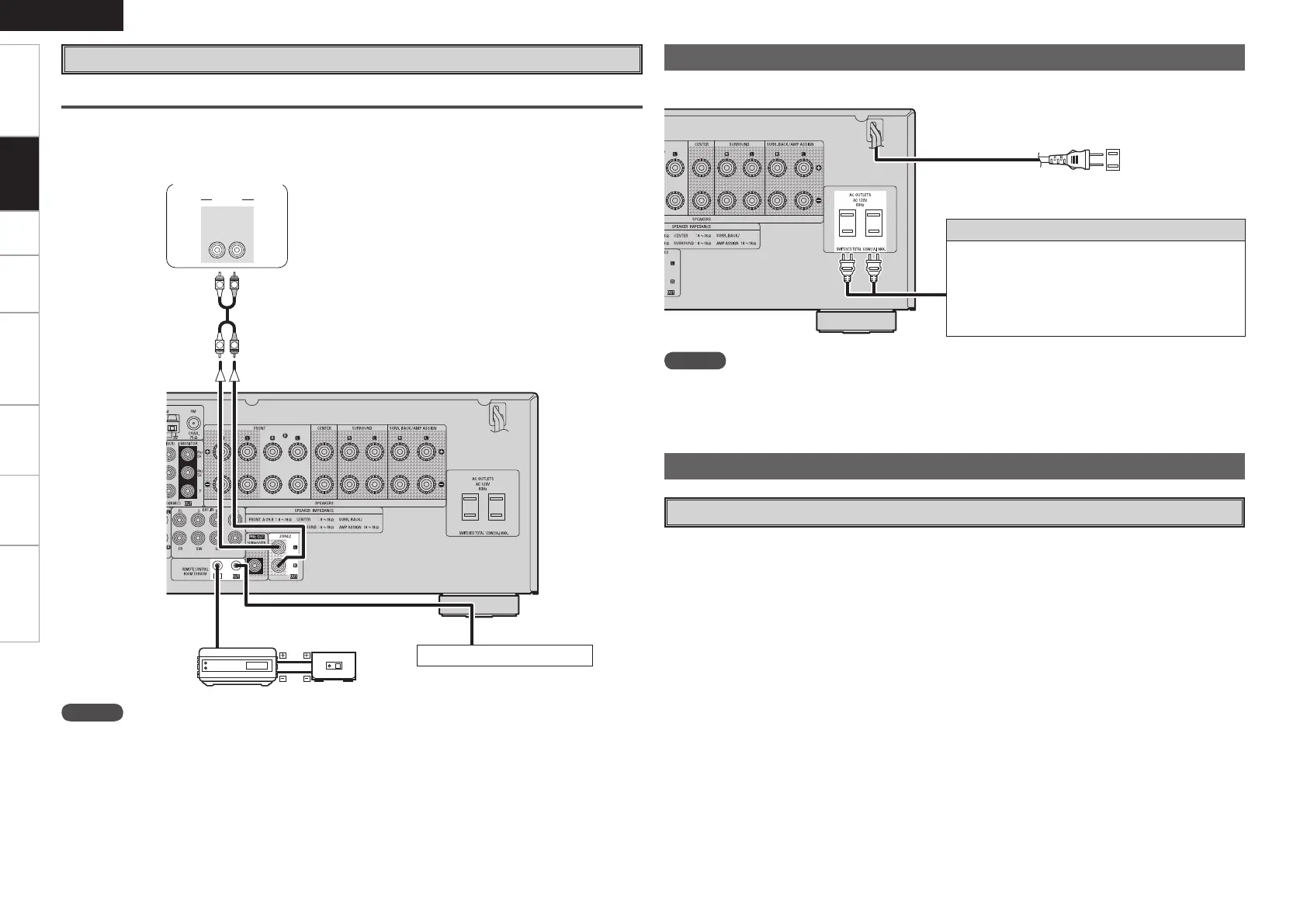

ZONE2 Out Connections
If another pre-main (integrated) amplifier or power amplifier is connected, the ZONE2 out connectors can
be used to play a different program source in ZONE2 the same time (vpage 47 ~ 49).
R
L
R
L
"69
065
"6%*0
3-
*/
"6%*0
Pre-main amplier
(ZONE2)
Input
Output
Infrared
retransmitter
Infrared
sensor
Extension jack for future use.
NOTE
• For the audio output, use high quality pin-plug cords so that no induction humming or noise is produced.
• For instructions on installing and operating separately sold devices, refer to the respective devices’
operating instructions.
• To conduct multi-zone playback, see “Amp Assign / Multi-zone Connections and Operations” (vpage 47
~ 49).
Getting Started Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting
NOTE
• Insert the AC plugs securely. Incomplete connections could cause noise.
• Only use the AC outlets to plug in audio devices. Do not use them as power supplies for hairdryers or
anything other than audio equipment.
Wait until all connections have been completed before connecting the power cord.
To household
power outlet
(AC 120 V, 60 Hz)
Power cord
Connection to the AC outlets
• These outlets supply power to external audio
devices.
• The power supplied from these outlets turns on and
off together with the set’s power switch.
• Audio equipment with a total power consumption
of 120 W (1 A) can be connected.
Connecting the Power Cord
Turning the Power On (vpage 35)
Once Connections are Completed
